Metro / Subway Automatic Flap Barrier Gate With Led Reminder And Access Control System
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-207 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 Stainless Steel/316 Stainless Steel | Size Of Product | 1200*280*1000mm |
|---|---|---|---|
| Package Size | 1280*370*1070mm | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,TCP/IP |
| Application | Indoor&outdoor | Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Product Name | 304 SUS Flap Turnstile | ||
| Highlight | Flap Barrier Turnstile,automatic flap barrier |
||
Product Description
Metro / Subway Automatic Flap Barrier Gate With LED Reminder And Access Control System
Goldantell Intelligent Turnstile can integrate with various access readers including RFID Reader, Fingerprint Reader, Coin Machine, QR code/Bar code System, and ESD Tester Access Control. If you already have an access control system, you can purchase our turnstiles separately. Remote control operation is also supported.
Applications
- Public Places: Subway, Airports, Stations, Libraries, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Residential Areas, Offices, Commercial buildings
- Entertainment Venues: Movie theaters, Fitness centers, Country clubs, Fairgrounds, Clubs, Swimming Pools, Gyms
- Business Organizations: Hotels, Factories, Banks, Prisons, Hospitals, Schools, Enterprise Entrance/Exit Attendance systems
Specifications
| Item | GAT-207-1 (single motor); GAT-207-2 (double motors) |
|---|---|
| Name | Bridge type sharp arc flap turnstile |
| Technical Parameters | |
| Working voltage | AC220±10%V 50±10%HZ |
| Size | 1200/1400mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with a tent over), -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | Domestic standard 304# stainless steel |
Features & Functions
- Alarm function: Triggers automatically when arms are pushed illegally and locks the mechanism
- Self-diagnostic capability for easy maintenance
- Configurable working conditions via main control board
- Mechanical/infrared anti-pinch protection
- Automatic door closure for illegal entry attempts
- Automatic locking before receiving open signal
- Collision avoidance for arm protection
- Automatic reset function (adjustable 1-60s)
- Optional infrared reset (4 or 6 pairs)
- Compatible with various access control systems
- Bi-directional operation
- Remote management capability
- Flashing light prompt for troubleshooting
- Available in single motor (single/multiple passageways) and double motor (multiple passageways) configurations
Single Motor vs. Double Motor
Competitive Advantages
- ODM/OEM services including custom design, logos, packaging, and sizes
- Comprehensive system management software solutions
- 16-hour professional customer support
- Excellent after-sales service with remote troubleshooting and free spare parts replacement within warranty period
System Integration
- Access control systems: fingerprint, face recognition, card reader, QR code/barcode ticket systems
- Special functions: counter operation, coin-operation
- ESD tester system integration

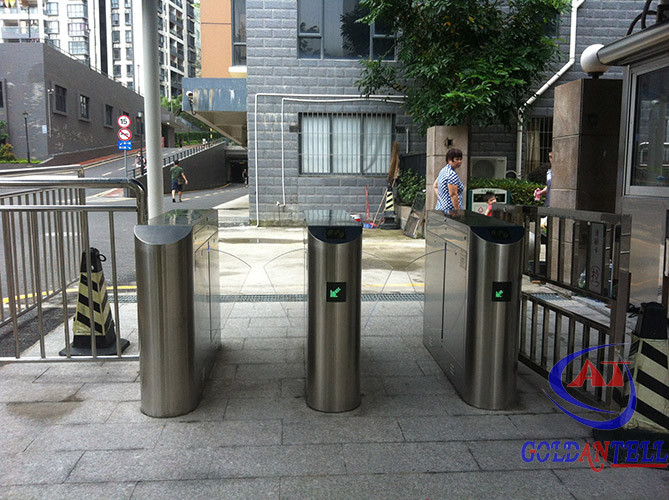

Application Examples
Packaging Options
- One pair requires two packages
- With access control system: closed wooden box packing
- Without access control system: choice of crate or closed wooden box
Customization Options
- Appearance: Custom designs available
- Stainless steel cabinet thickness: 1.2~2.0mm
- Material options: 304/316 grade stainless steel
- Surface finishes: satin, polished, anti-fingerprint, frosted, electroplated, or baked finishes
