Intelligent Security Flap Automatic Barrier Gate Under 220V / 110V Working Power

  • Intelligent Security Flap Automatic Barrier Gate Under 220V / 110V Working Power
  • Intelligent Security Flap Automatic Barrier Gate Under 220V / 110V Working Power
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-205
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 304 SUS Flap Turnstile Material 304 Stainless Steel/316 Stainless Steel
Size Of Product 1200*280*1000mm Package Size 1280*370*1070mm
Net Weight 65KG Gross Weight 70KG
Communication Port RS485 ,TCP/IP Application Indoor&outdoor
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Highlight

Flap Barrier Turnstile

,

Flap turnstile
Leave a Message
Product Description
Intelligent Security Flap Automatic Barrier Gate
220V/110V Working Power
Product Description

The Goldantell smart translational speed gate turnstile is a high-tech product designed for intelligent passageway management. As an upgraded version of traditional tripod turnstiles and swing barriers, this product features precision engineering, complete functionality, and high-level performance. Ideal for upscale neighborhoods, intelligent buildings, hotels, subway stations, ports, and clubs.

Technical Specifications
Item GAT-205-1 (single motor)
GAT-205-2 (double motors)
Housing material Domestic standard 304# stainless steel
Working voltage AC220±10%V 50±10%HZ
Size 1200/1400mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260 mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24V brush motor
Working environment Indoor/outdoor (with tent) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
Relative humidity ≤90% (non-condensing)
Key Features
  • Alarm function with automatic locking when forced entry is detected
  • Self-diagnostic capability for easy maintenance
  • Dual anti-pinch protection (mechanical and infrared induction)
  • Automatic door closure for unauthorized entry attempts
  • Pre-lock function before receiving open signal
  • Collision avoidance protection for arms
  • Adjustable automatic reset function (1-60 seconds)
  • Optional infrared reset function (4 or 6 pairs)
  • Compatible with various access control systems
  • Bidirectional operation capability
  • Remote management via computer
  • Flashing light prompt for easy troubleshooting
  • Available in single motor (single passageway) or double motor (multiple passageways) configurations
Applications

Public Places: Subway stations, airports, libraries, parks, exhibition halls, stadiums, museums, residential areas, offices, commercial buildings

Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, nightclubs, swimming pools

Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, corporate entrance/exit attendance systems

System Integration
Intelligent Security Flap Automatic Barrier Gate Under 220V / 110V Working Power 0

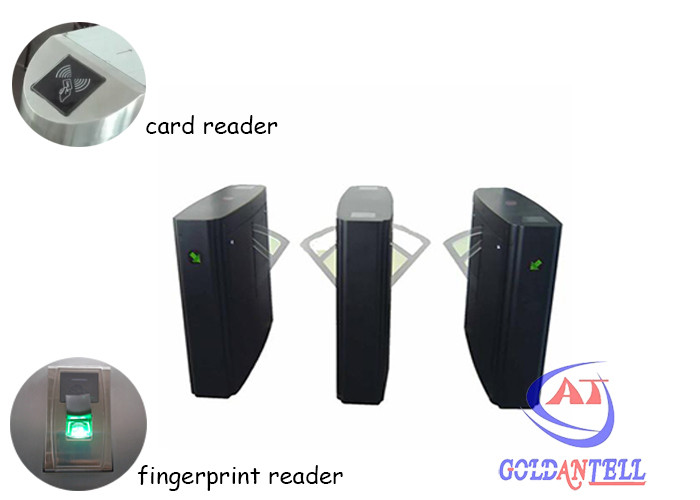

  • Compatible with fingerprint, face recognition, and card reader access control systems
  • Supports special functions like counters and coin-operation
  • ESD tester system integration available
Internal Components
Intelligent Security Flap Automatic Barrier Gate Under 220V / 110V Working Power 1
Packaging Options
  • One pair requires two packages
  • With access control system: closed wooden box packing
  • Without access control system: choice of crate or closed wooden box
Intelligent Security Flap Automatic Barrier Gate Under 220V / 110V Working Power 2
Competitive Advantages
  • 10+ years ODM/OEM experience with custom design, logo, and packaging options
  • Professional customer support available 16 hours/day
  • Complete product and system software management solutions
  • Exceptional after-sales service including remote troubleshooting and free spare parts replacement within warranty period
