LED Direction Indicator Metro Station Access Control Flap Turnstile for Office Building

Name

 Bridge type flap barrier gate

Item Number

 GAT-225

 Brief Introduction of Goldantell Flap Turnstile


Goldantell smart flap turnstile is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier.

This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.


Classified into two kinds
Double motors (suitable for multiple passageways) .
single motor (suitable for single passageway and multiple passageway) .

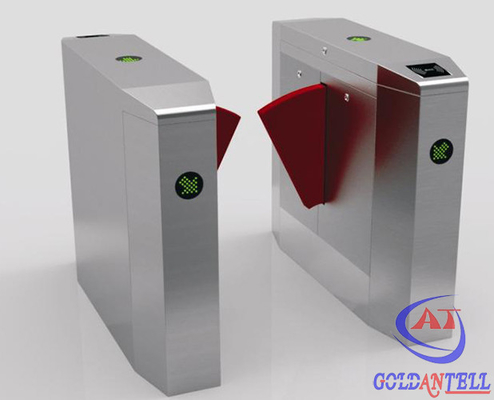

 Goldantell Product Picture

Technical Parameters

Housing material: domestic standard 304# stainless steel

Working voltage: AC220±10%V 50±10%HZ

Working movement: DC24V solenoid valve

Size: 1200mm /1400mm(L) * 280mm (W) * 980mm (H)

Retractable arm length: 260 mm

Passage width: ≤600 mm

Direction: single or bi-directional (optional)

LED light: direction arrow

Working environment: indoor/outdoor (with a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free

Time of opening: 0.6 second

Pass speed: 40 persons/min (open), 25-30 persons/min (closed)

Reset time after break down: 10 seconds

Normal running life: 3 million

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Standard function&future

1. Alarm function
2. Anti-pinch function
3. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
4. Infrared reset function & Infrared induction clamp function
(Optional:3 pairs or 5 pairs Infrared)
5. Turnstile can setting the working condition by press the button of main control board.
6.This model is newest second generation of movement (mute), soft baffle (PU mold)
7. The turnstile can work with door access control system/ consumption system /biometric
recognition system/ ESD system and so on
8.Automatic Reset Functions

Extended functions

1. Sound and light alarm prompt functions
2.Box house can lengthen, telescopic arm color can choose
3.Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
4.Voice Prompt Function
5. Normally open or closed can be adjust to meet the requirements of the different place
6. LED indicator light
