Outdoor Flap Barrier Gate Swiping Card Barcode Stadium Anti trap Function

Name

Bridge type flap barrier gate

Item Number

GAT-221

Brief Introduction of Goldantell Flap Turnstile

Goldantell smart flap turnstile is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier.


Classified into two kinds:
single motor (suitable for single passageway and multiple passageway) .
Double motors (suitable for multiple passageways) .

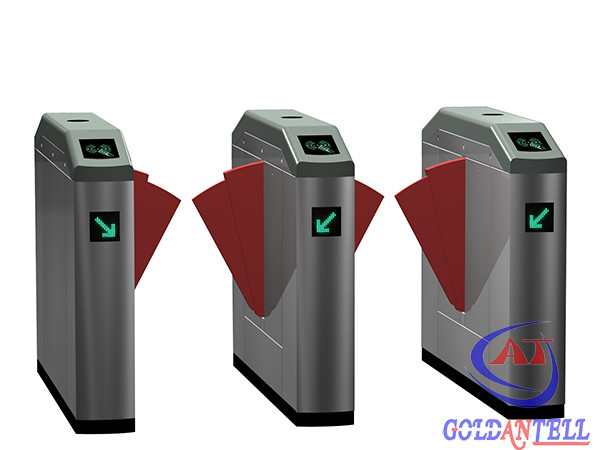

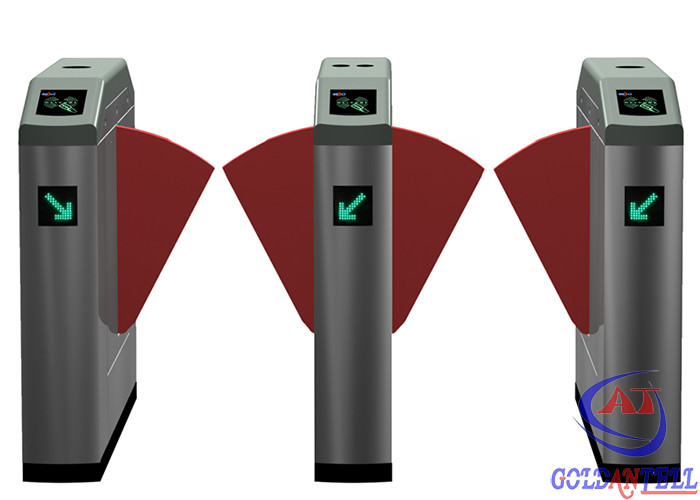

Goldantell Product Picture

Technical Parameters

Housing material: domestic standard 304# stainless steel

Working voltage: AC220±10%V 50±10%HZ

Working movement: DC24V solenoid valve

Size: 1200mm /1400mm(L) * 280mm (W) * 980mm (H)

Retractable arm length: 260 mm

Passage width: ≤600 mm

Direction: single or bi-directional (optional)

LED light: direction arrow

Working environment: indoor/outdoor (with a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free

Time of opening: 0.6 second

Pass speed: 40 persons/min (open), 25-30 persons/min (closed)

Reset time after break down: 10 seconds

Normal running life: 3 million

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Standard function&future

1. Alarm function
2. Anti-pinch function
3. Automatic Reset Functions
4. Infrared reset function & Infrared induction clamp function(Optional:3 pairs or 5 pairs Infrared)
5. Turnstile can setting the working condition by press the button of main control board.
6.This model is newest second generation of movement (mute), soft baffle (PU mold)
7. The turnstile can work with door access control system/ consumption system /biometric
recognition system/ ESD system and so on
8.The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)

Extended functions

1.LED indicator light
2.Box house can lengthen, telescopic arm color can choose
3.Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
4.Voice Prompt Function
5. Normally open or closed can be adjust to meet the requirements of the different place.
6.Sound and light alarm prompt functions
