Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage

Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage
Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage

Large Image :  Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/SGS/IS9001
Model Number: GAT-215
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inside carton outside wooden case or crate
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Flap Barrier Gate Size: 1200*280*990mm
Package Size: 1280*370*1070mm Material: 304 Stainless Steel
Pass Speed: 30-40 Persons/min Interface: RS485, TCP/IP
Working Temperature: -15~+75 °C Arm Length: 285mm
Thick Of Steel: 1.5mm Or Custom Design Transmission: All-electric Mechanical
Highlight:

Flap Barrier Turnstile

,

Flap turnstile


Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage

Goldantell Flap Turnstile Introduction&Specification:

Name

Bridge type flap barrier gate

Item Number

GAT-215

Brief Introduction of Goldantell Flap Turnstile

Goldantell smart flap turnstile is s a high-tech product which mainly provides intelligent
management to passageway. It is a upgrade product of intelligent tripod turnstile and swing
barrier.

This product is finely processed with complete functions and high level, suitable for high-level
neighborhoods, intelligent buildings, hotel, subway, port and club,etc.



Classified into two kinds:
single motor (suitable for single passageway and multiple passageway) .
Double motors (suitable for multiple passageways) .

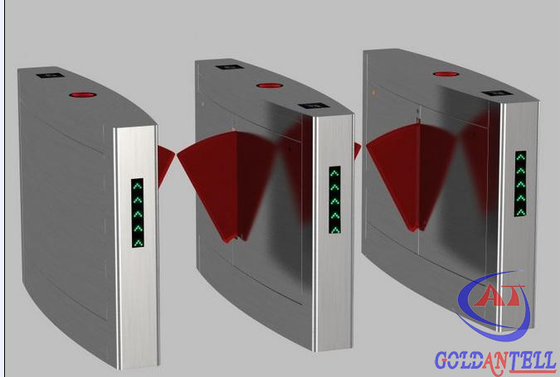

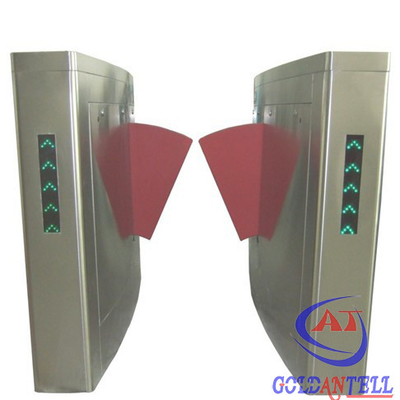

Goldantell Product Picture

Technical Parameters

Anti tail Security RFID Reader Pedestrian Flap Barrier , electronic turnstiles for Building Passage 0









Housing material: domestic standard 304# stainless steel

Working voltage: AC220±10%V 50±10%HZ

Working movement: DC24V solenoid valve

Size: 1200mm /1400mm(L) * 280mm (W) * 980mm (H)

Retractable arm length: 260 mm

Passage width: ≤600 mm

Direction: single or bi-directional (optional)

LED light: direction arrow

Working environment: indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity: ≤90% coagulation free

Time of opening: 0.6 second

Pass speed: 40 persons/min (open), 25-30 persons/min (closed)

Reset time after break down: 10 seconds

Normal running life: 3 million

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Standard function&future



1. Alarm function
2. Anti-pinch function
3. Automatic Reset Functions
4. Infrared reset function & Infrared induction clamp function(Optional:3 pairs or 5 pairs Infrared)
5. Turnstile can setting the working condition by press the button of main control board.
6.This model is newest second generation of movement (mute), soft baffle (PU mold)
7. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

Extended functions

1.LED indicator light
2.Box house can lengthen, telescopic arm color can choose
3.Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
4.Voice Prompt Function
5. Normally open or closed can be adjust to meet the requirements of the different place.
6.Sound and light alarm prompt functions





















Appearance, Dimension, Material & Surface Finish :
Appearance: customized according to customer’s requirements,stainless steel thickness of the cabinet:
customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking
finish.



System Integration :
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.


Application :
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,
Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special
Access Control.

Competitive Advantage :
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.
