Product Details:
Payment & Shipping Terms:
|
| Product Name: | Flap Barrier Gate | Size: | 1200*280*990mm |
|---|---|---|---|
| Package Size: | 1280*370*1070mm | Material: | 304 Stainless Steel |
| Pass Speed: | 30-40 Persons/min | Interface: | RS485, TCP/IP |
| Working Temperature: | -15~+75 °C | Arm Length: | 285mm |
| High Light: | Flap Barrier Turnstile,automatic flap barrier |
||
CE Approved Anti Rushing Flap Barriers 304 Stainless Steel TCTP / IP
, RS485
Goldantell Flap Turnstile Introduction&Specification
|
Name |
Dual-core flap barrier gate |
Item Number |
GAT-208 |
|
|
Brief Introduction of Goldantell Flap Turnstile |
||||
|
Goldantell smart flap turnstile is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier.
This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc. |
||||
|

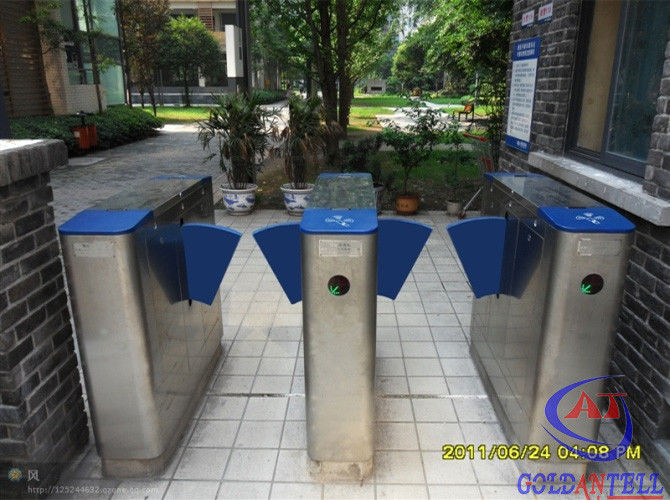

Goldantell Product Picture |
Technical Parameters |
|||
|
|
Housing material: domestic standard 304# stainless steel |
|||
|
Working voltage: AC220±10%V 50±10%HZ |
||||
|
Working movement: DC24V solenoid valve |
||||
|
Size: 1200mm /1400mm(L) * 280mm (W) * 980mm (H) |
||||
|
Retractable arm length: 260 mm |
||||
|
Passage width: ≤600 mm |
||||
|
Direction: single or bi-directional (optional) |
||||
|
LED light: direction arrow |
||||
|
Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free |
||||
|
Time of opening: 0.6 second |
||||
|
Pass speed: 40 persons/min (open), 25-30 persons/min (closed) |
||||
|
Reset time after break down: 10 seconds |
||||
|
Normal running life: 3 million |
||||
|
Communication interface: standard RS485 interface, distance ≤1200m |
||||
|
Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
||||
|
Standard function&future |
||||
|
1. Alarm function 2. Anti-pinch function 3. Automatic Reset Functions 4. Infrared reset function & Infrared induction clamp function(Optional:3 pairs or 5 pairs Infrared) 5. Turnstile can setting the working condition by press the button of main control board. 6.This model is newest second generation of movement (mute), soft baffle (PU mold) 7. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on 8.The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles) |
|
Extended functions |
|
1.LED indicator light |
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirements,stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Application
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym
Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special
Access Control.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.
