Product Details:
Payment & Shipping Terms:
|
| Passage Width: | 110cm, 90cm,60cm | Application: | Factory, Border,plant, School, Gym |
|---|---|---|---|
| Swing Panel Length: | 35~90cm Per Pc | Working Environment: | Indoor Or Outdoor |
| Access Control: | Nfc,rfid Wristband, Cards, Ticket Or Face Scanner | Material: | Stainless Steel 304 |
| Highlight: | pedestrian turnstile gate,waist high turnstiles |
||

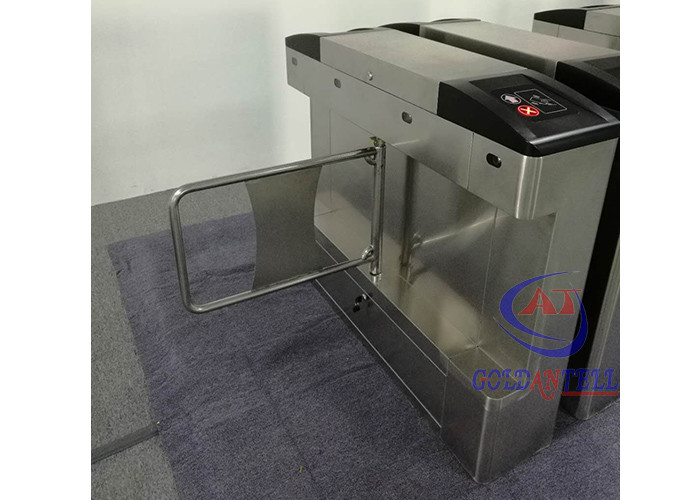

Swipe card access control turnstile gate for wheelchair
>>>Brief introduction
-Directional LED Optical Signals: Green Arrow or RED Cross signage.
-With fault self-check function and Alarm function, convenience for maintains.
-Mechanism is specially processed ,more durable.
-Always open or close modes, When Fire alarm on, The acrylics will retract automatically.
-Ensures rapid, efficient & safe access control.
-Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
-Photo Electric Beams installed standard for all models.
>>>Technical Details
| Item No. | GAT-603 |
| Opening time | within 1s |
| Size | 1200(L)* 280(W)* 1000(H)MM |
| Open type | push button/ access control |
| Passing direction | entry and exit (bi-directional or only one way) |
| Working temperature | -15°C +75°C |
| communication with computer | standard RS485, TCP/IP |
| G.W | 70KG |
>>>Standard Features
1. When power off, arm open automatically and power on again, the arm will be held automatically.
2. When a valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
3. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
4. If the passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
>>>Real Pictures
>>>Details Introduction
1. special plate to show reading window, access led signal;
2. standard SUS 304 with thickness 1.5mm, waterproof, strong performance.
3. the length of swing arm can be from 350 to 900 mm.
