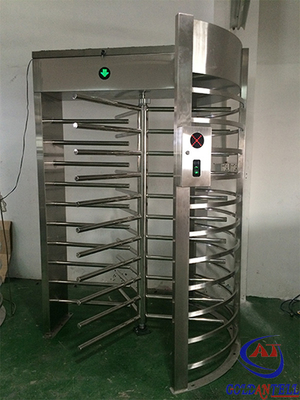

Speed Gate / Full Height Turnstile / Revolving Security With Fingerprint / Card reader System
Descriptions:
Goldantell full height turnstile is s a high tech product which mainly provides intelligent management to the passageway.
1. Features: This full height turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Very comfortable space for passage.
2. Functions: Prevent illegal in and out.Arms off in emergency case. This product is finely processed with complete functions and high level.
3. Application: suitable for stadium,prison,office building, government, Confidentiality center,etc.,
4. System Integration: this equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment...
5. Classified into two kinds: single-access;dual-access.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
Product details show:
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin-operation, access control system like card reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
Specifications:
|
Technical parameters
|
| Housing material |
domestic standard 304# stainless steel
|
| Size |
1630*1500*2300mm (MM)
|
| Working voltage |
AC220±10%V 50±10%HZ |
| Working movement |
DC24V solenoid valve |

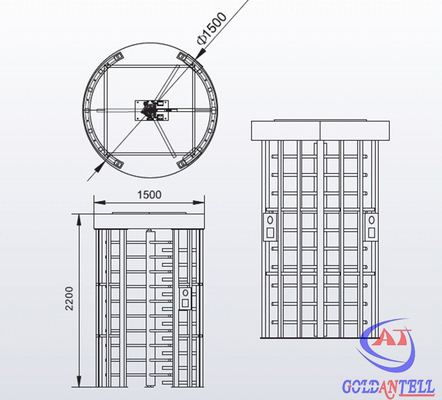

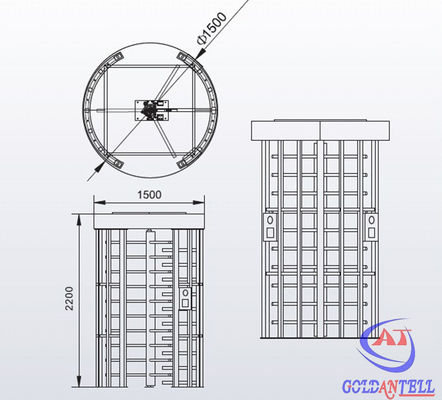

| Roof Dimensions : |
Φ1500MM |
| Reset time after break down: |
10 seconds |
| Passage width: |
≤600 mm
|
| Time of opening: |
0.2 second |
| Pass speed: |
30 persons/min |
| Time to work after power on: |
3 seconds
|
| Normal running life: |
3 million |
| LED light: |
direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -25℃ ～ 70℃
|
| Relative humidity: |
≤90% coagulation free |
| Communication interface: |
standard RS485 interface,
distance ≤1200m
|
| Input interface: |
+12V level signal or pulse width>100ms
12V pulse, drive current>10mA
|
Packing details show:
1. Crate package
A. 1 pc double access full height turnstile: with 4 pieces of package, about 9 m³.
B. 1 pc single access full height turnstile: with 3 pieces of package, about 7 m³.
2. Closed wooden case
