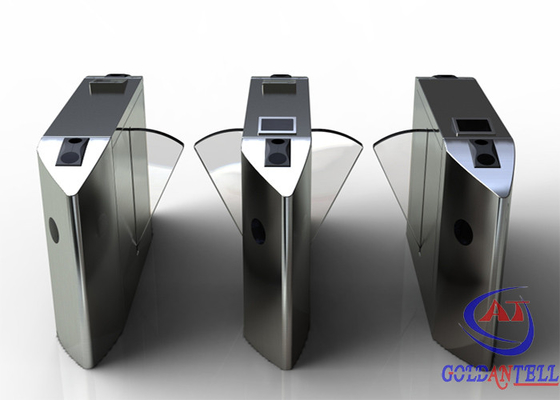

Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club Entrance

Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club  Entrance
Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club  Entrance
video play

Large Image :  Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club Entrance

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-201
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7-9 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Product Name: 304 SUS Flap Turnstile
Material: 304 Stainless Steel/316 Stainless Steel Size Of Product: 1200*300*1000mm
Package Size: 1310*410*1110mm Application: Indoor&outdoor
Net Weight: 70KG/pc Gross Weight: 65KG/pc
Communication Port: RS485 ,TCP/IP
Highlight:

Flap Barrier Turnstile

,

Flap turnstile

Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club Entrance


Description:
1. Goldantell smart translational speed gate turnstile is s a high- tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions and high level, suitable for high- level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
2. This equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment...
3. Classified into two kinds: single motor (suitable for single passageway and multiple passageway.); Double motors (suitable for multiple passageways).


Specifications:

Item GAT-201-1( single motor ); GAT-201-2( double motors )
Name

Bridge type sharp arc flap turnstile Item

Technical parameters
Housing material: domestic standard 304# stainless steel
Working voltage: AC220±10%V 50±10%HZ
Size: 1200/1400mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length: 285 mm
Pass speed: 40 persons/min (open), 25-30 persons/min (closed)
Passage width: ≤600mm
Normal running life: 3 million
Time of opening/closing: 0.6 second
Time to work after power on: 3 seconds
Reset time after break down: 10 seconds
Direction: single or bi-directional (optional)
Drive motor: DC24V brush motor
Working environment:

indoor/outdoor (with a tent over)  -10℃~70℃

Communication interface:

standard RS485 interface, distance ≤1200m

Input interface:

+12V level signal or pulse width>100ms
12V pulse, drive current>10mA

Relative humidity: ≤90% coagulation free



Special function:
1. LED counting function
2. Box house can lengthen, swing arm lengthen
3. Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared) Voice Prompt Function
4. Normally open or closed can be adjust to meet the requirements of the different place. Sound and light alarm prompt functions
5.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately.



Details Photos:

Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club  Entrance 0

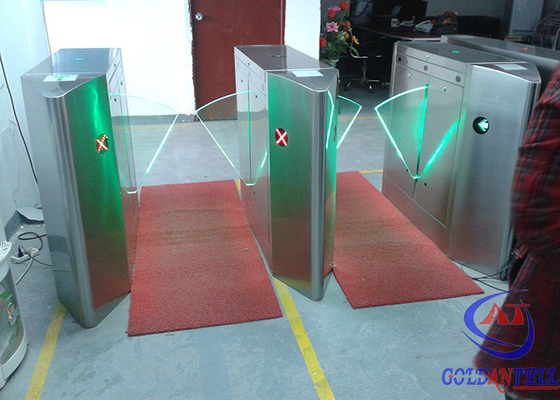

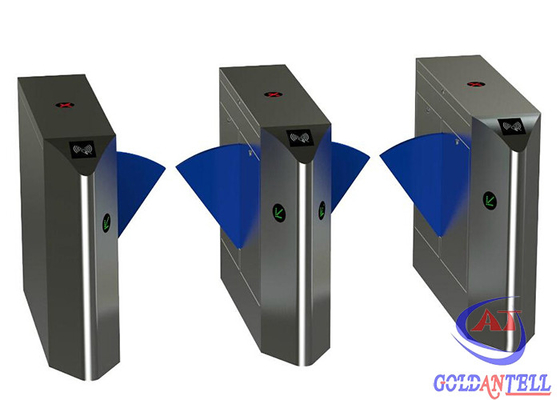

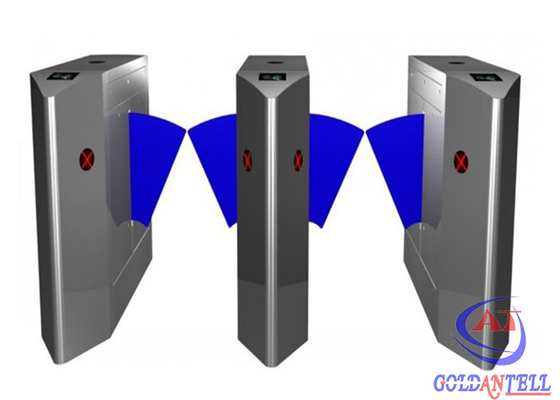

Projects show:

1) single passage or multiple passages suit for your situation.

2) the color of retractable wings can be optional of standard Blue, Red, Black, Transparent (combined with optional colorful led lighting),etc.

3) two-way access with RFID card, or fingerprint , Barcode scanner , ESD tester or more readers in request.

Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club  Entrance 1

Full Automatic Flap Barrier Gate With Reader Card / Fingerprint Recognition For Gym / Club  Entrance 2



Application:

Public Places Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls,Stadiums, Museums,Apartments,Residence Area, Offices,
Commercial buildings.
Entertainment Places Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,
Swimming Hall,Fitness Gym
Business Organizations Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and
Exit Attendance



Package:
1. One pair need two packages.
2. With access control system, need the closed wooden box packing.
3. Without the access control system, two ways for your choice: crate and closed wooden box.



Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
