Security RFID NFC Face Recognition Automatic Swing Door Barrier 2 Way Pedestrian Entrance
Product Details
| Flow Rates | 35 Or 40 Persons Per Minute | Sliding Speed | 0.6 Second |
|---|---|---|---|
| Power Supply | AC 100-240Volt | IP Rating | IP54 |
| Lane Width | 600mm (Max:900mm) | Dimension | 1400 *120 * 1000 (mm) |
| Material | 304, 316 Stainless Steel | Communication | TCP/IP, RS485 |
| Direction | Single Or Bi-directional (optional) | Reset Time | 10 Seconds |
| Running Life | 3 Million | Working Environment | -10℃~70℃ |
| Highlight | RFID NFC swing barrier gate,automatic pedestrian entrance gate,face recognition swing door barrier |
||
Product Description
Security RFID NFC Face Recognition Automatic Swing Door Barrier
High-performance automatic swing door barrier designed for efficient crowd control in various public and commercial spaces. Features rapid operation, durable construction, and flexible configuration options for 2-way pedestrian entrance management.
Applications
Public Spaces
- Lobby entries, Subways, Airports, Stations
- Libraries, Bookstores, Parks, Exhibition halls
- Stadiums, Museums, Apartments, Residential Areas
- Offices, Commercial buildings
Entertainment Venues
- Movie theaters, Fitness centers, Country clubs
- Fairgrounds, Clubs, Swimming pools, Gyms
Business Organizations
- Hotels, Factories, Banks, Prisons
- Hospitals, Schools, Enterprise entrances

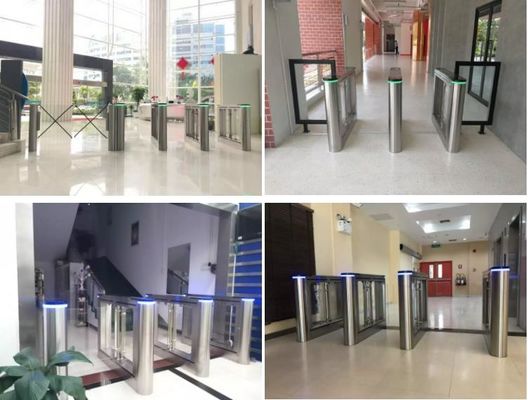

Application Examples

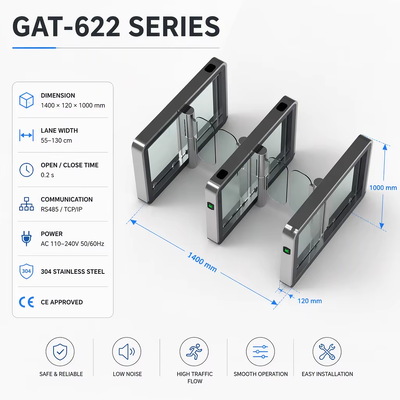

Technical Specifications
| Product Model | GAT-622 |
|---|---|
| Product Size | 1400*120*1000mm |
| Path Width | 600mm to 900mm customized according to site need |
| Direction | Single way or 2 way (optional) |
| Operation Speed | 0.6 second opening/closing time |
| Passage Rate | 35-40 persons/min (open), 25-30 persons/min (closed) |
| Reset Time | 10 seconds after breakdown |
| Service Life | 3 million cycles |
| Operating Environment | Indoor/outdoor (with cover) -10℃~70℃ |
| Drive Motor | DC24V brush motor |
Key Features
- Biometric Fingerprint Access: Ensures secure and efficient entry management
- Anti-Pinch Design: Prevents accidental injury while maintaining smooth passage
- CE Certified: Meets European safety standards for reliability
- Compact Design: Space-saving for various installation environments
- User-Friendly Interface: Easy to install and operate for minimal downtime
Product Classification
- Vertical shape
- Bridge shape (this model)
- Pillar shape (tube type)
- Single motor (for single/multiple passageways) or Double motors (for multiple passageways)
Professional Packaging
All specifications and features are subject to change without notice. Contact us for the most current product information.
