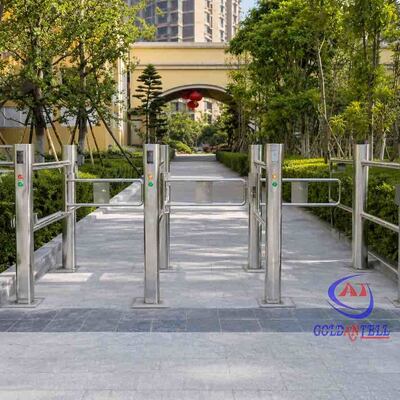

Zero-power Mechanical Swing Arm Two-way Pedestrian Guard for Convenience Store and Small Retail Shop Entry CE
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-612 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 2,000pcs per month |
Product Details
| Material | 304 Stainless Steel/316 Stainless Steel | Product Size | Diameter: Main Pole: Φ168mm Height: 1000mm |
|---|---|---|---|
| Net Weight | 85KG/set | Gross Weight | 90KG/set |
| Working Voltage | AC220±10%V 50±10%HZ | Passage Width | 450-850mm |
| Swing Arm Angle | 180 Degree | Pass Speed | 40 Persons/min (open), 25-30 Persons/min (closed) |
| Highlight | mechanical swing arm pedestrian guard,two-way swing barrier gate,CE certified retail shop entry guard |
||
Product Description
Product Overview
The Zero-power Mechanical Swing Arm Two-way Pedestrian Guard is designed for convenience stores and small retail shop entrances. It provides reliable bidirectional pedestrian access control with a mechanical swing arm, combining durable stainless steel construction with flexible configuration options to suit a wide range of entry management needs. The unit is CE compliant.
Appearance, Dimensions, Material & Surface Finish
- Appearance: Customized according to customer requirements.
- Cabinet stainless steel thickness: Customizable within 1.2–2.0 mm.
- Cabinet material: 304 or 316 grade stainless steel.
- Cabinet surface finish: Satin finish, polishing, anti-fingerprint, frosted finish, electroplating, or baking finish.
Technical Specifications
| Working voltage | AC220±10%V, 50±10%Hz |
|---|---|
| Size | Main pole diameter: Φ168 mm; height: 1000 mm |
| Passage width | 450–850 mm |
| Swing arm angle | 180 degrees |
| Direction | Single or bi-directional (optional) |
| Opening / closing time | 1 second |
| Pass speed | 40 persons/min (open); 25–30 persons/min (closed) |
| Normal running life | 3 million cycles |
| Working environment | Indoor / outdoor (with a tent over), −10°C to 70°C |
| Driving motor | DC24V brush motor |
| Control ways | Push button, RFID card, fingerprint recognition, etc. |
Application Configurations
| Application | Reference Image | Details |
|---|---|---|
| Used individually |
|
|
| Used in pairs |
|
|
| Used with guardrail |
|
|
Standard Functions
- The gate is bidirectional and uses infrared sensing to manage entry and exit through the passageways.
- The turnstile working condition can be set by pressing the button on the main control board.
- Anti-pinch function: The turnstile has mechanical and infrared induction anti-pinch functions. When an obstruction is met during the reset time, the electrical machine stops working automatically for a specified time; the turnstile then defaults to the delayed state and resets again until the reset succeeds.
- The turnstile locks when someone enters illegally, tailgates, or breaks in from the negative direction.
- Before receiving the open signal, the turnstile locks automatically.
- Collision avoidance: When the turnstile arm is closed and subjected to a collision, the arm opens to protect the internal transmission mechanism.
- Automatic reset: After swiping the card, if the user does not pass through the turnstile within the specified time (system default 10 s), the system automatically cancels the authority to pass. The reset time is adjustable from 1 to 60 s to suit your needs, fully meeting fire protection requirements.
- The turnstile can work with a door access control system, consumption system, biometric recognition system, ESD system, and more.
- The turnstile is bidirectional, allowing pedestrians to enter and exit from one pair of turnstiles.
- The turnstile can be managed and controlled remotely and directly from a computer.
Optional Extensions
- Pillar height can be increased, telescopic arm lengthened, and materials selected.
- Infrared reset function and infrared induction clamp function.
- Sound and light alarm prompt functions.
- Normally open or normally closed modes can be adjusted to meet the requirements of different locations.
