Direct Factory Powered Floor-to-Ceiling Turnstile Digital Tally for Logistics Hub and Port Terminal Security CE
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-514 |
| Document | Full Catalog Of Full Height...te.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Product Details
| Product Size | 2350L*1350 W*2300 H (MM) Or Custom Size | Material | 304 Stainless Steel |
|---|---|---|---|
| Type | Dual Access Full Height Turnstile | Net Weight | 200KG |
| Gross Weight | 250KG | Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Communication Port | RS485 ,TCP/IP | Application | Prison, Factory, Government Etc. |
| Package | 4 Packages,10CBM | ||
| Highlight | Powered floor-to-ceiling turnstile with digital tally,Full height turnstile for logistics hub security,CE certified turnstile for port terminals |
||
Product Description

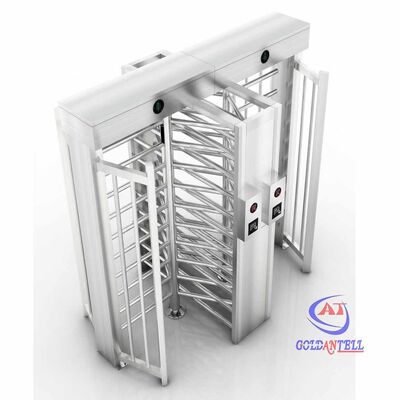

Direct Factory Powered Floor-to-Ceiling Turnstile Digital Tally
This full height turnstile is a high-tech product designed for intelligent passageway management in logistics hubs and port terminals. Constructed with durable, rust-proof stainless steel, it provides comfortable passage space while preventing unauthorized access. CE certified for quality assurance.
Product Features
- High-quality, durable stainless steel construction with rust-proof properties
- Provides comfortable passage space while preventing unauthorized access
- Suitable for various secure environments including prisons, office buildings, government facilities, and statistical offices
Technical Specifications
| Specification | Details |
|---|---|
| Size | 2350L × 1350W × 2300H (MM) or custom size |
| Communication Interface | Standard RS 485 interface, distance ≤1200m |
| Working Voltage | AC220±10%V, 50±10%HZ |
| Working Movement | DC 24 V solenoid valve |
| Reset Time After Break Down | 10 seconds |
| Passage Width | ≤600 mm |
| Time of Opening | 0.2 second |
| Pass Speed | 30 persons/min |
| Time to Work After Power On | 3 seconds |
| Normal Running Life | 3 million cycles |
| LED Light | Direction arrow |
| Working Environment | Indoor/outdoor (with a tent over) -25℃ ～ 70℃ |
| Housing Material | Domestic standard 304# stainless steel |
| Relative Humidity | ≤90% coagulation free |
| Input Interface | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Advanced Functions & Features
- LED indicator light for clear direction indication
- Compatible with various access control systems including RFID, fingerprint, QR code, and biometric systems
- Unique two-way anti-reverse function
- Programmable operating status via built-in control board
- Automatic reset function (1S ~ 60S adjustable)
- Supports both unidirectional and bidirectional access control
- Remote control and management capability via computer
- Customizable box house length and design
- Adjustable normally open or closed settings for different environments
Competitive Advantages
- 24-month quality guarantee on all items
- Rich experience in OEM/ODM services including custom designs and logos
- Excellent pre-sale and after-sale service with English-speaking support
- Fast delivery options
- Professional engineering support
- Special discounts for distributors and agents
Frequently Asked Questions
Can you do OEM service?
We offer comprehensive OEM services including:
- Custom turnstile designs (size, material, LED indicator shape/color)
- Custom logo printing on turnstiles
- Custom retail box packaging
Is your turnstile compatible with different access control systems?
Yes, our intelligent turnstile works with various access controllers including RFID card, fingerprint, QR code, and ESD test control systems. We can also provide compatible access control software or systems.
What is your guarantee and after-sale service policy?
We provide a 12-month quality guarantee with English-speaking sales and after-sale service support.
What is your lead time?
Standard items:
- 10-50 sets: 5 working days
- 50-100 sets: 7-10 working days
- 200-500 sets: 10-15 working days
Custom items require 3-10 additional working days.
What payment terms do you accept?
We accept TT, Western Union, and L/C payments. Our company participates in trade assurance programs to protect your order security.
