8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-ESD305 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Product Details
| Compatible | Tripod Turnstile Gate,Flap Turnstile Gate,Swing Turnstile Gate | Product Name | Esd Test Equipment |
|---|---|---|---|
| Material | Stainless Steel | Size Of Product | 1200*300*1000mm |
| Package Size | 1310*410*1110mm | Application | Indoor&outdoor |
| Net Weight | 70KG/pc | Gross Weight | 65KG/pc |
| Communication Port | RS485 ,TCP/IP | ||
| Highlight | 8 inch ESD tester with wrist strap,footwear anti-static tester for lab,ESD gate tester for factory |
||
Product Description

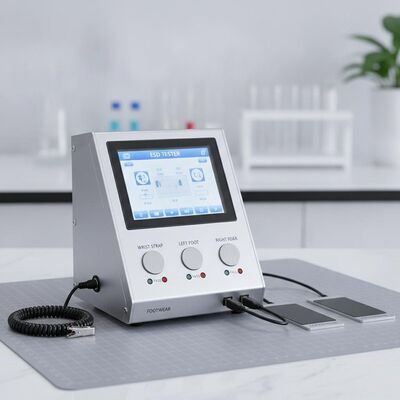

8 Inch Screen ESD Tester with Wrist Strap & Footwear Anti-static Testing
Professional ESD testing equipment designed for laboratories and manufacturing facilities, featuring comprehensive anti-static testing capabilities for personnel safety and product protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Instrument Dimensions | 8 inch LCD monitor with built-in tablet PC displaying user information including photo, name, card ID, department, and entry time |
| Pedal Size | 400mm (W) × 420mm (L) × 20mm (H) |
| Operating Voltage | Input AC220V, Output DC12V |
| Working Hours | Unlimited continuous operation |
| Environmental Conditions | Humidity: 0%–90%, Temperature: 5°C–40°C |
| Data Storage | Automatic record storage for ESD test data (except client mode), capacity for 100,000+ records |
| Test Range & Accuracy | Left shoe: 0.01–1000MΩ (±5%) | Right shoe: 0.01–1000MΩ (±5%) | Wrist-strap: 0.1–35MΩ (±5%) |
Key Features

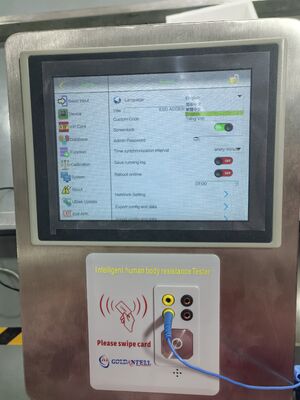

This ESD tester supports online data saving, signal output, 8-inch display monitor, includes related software, testing functionality, voice prompts (optional), and employee card access control integration.
- Rapid testing capability with simultaneous testing of three independent devices (left shoe, right shoe, wrist strap)
- Compatible with SQL Server 2000/2008 - run access control management software on any company computer
- TCP/IP communication technology supports connection of up to 255 testing devices for real-time monitoring of anti-static compliance
ESD Tester Configuration Types

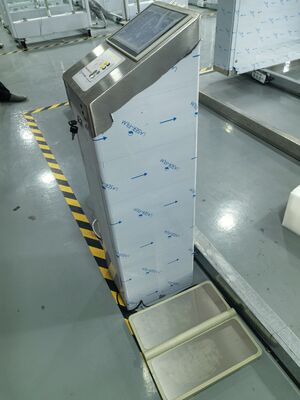

Type 1 - Vertical Standalone Unit
Operates independently without requiring installation on turnstile gates.

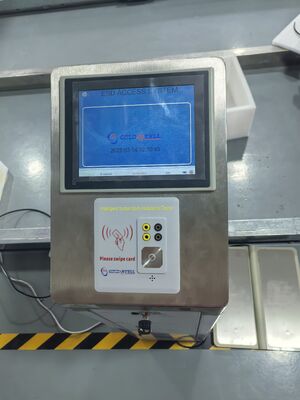

Type 2 - Turnstile Gate Integration
Designed for installation directly on turnstile gate systems.
Industry Applications
- Electronics Manufacturing: Semiconductor/chip production, electronics assembly, cleanrooms
- Healthcare: Medical device manufacturing, operating rooms, laboratories
- Oil & Gas/Chemicals: Flammable environments including storage and maintenance areas
- Precision Labs: Microelectronics R&D, optical labs, reliability testing facilities
- Industrial Logistics: Printing/packaging operations, warehouse management
- Access Control: Integrated gate systems with real-time monitoring capabilities
Core Features & Advantages
Precision Measurement
Measures charge and polarity with ±10% error tolerance, supports multi-point testing for shoes and wrist straps
Real-Time Protection
Alarm system for excessive static electricity, integrates with grounding systems and ionizers
Flexible Configuration
Customizable thresholds (e.g., 750KΩ–100MΩ), supports standalone or networked operation
Advanced Data Management
Comprehensive logging and reporting for audits, remote monitoring via TCP/IP connectivity
Packaging
Protected with inner carton packaging and outer crate or closed wooden packaging for secure transportation.
