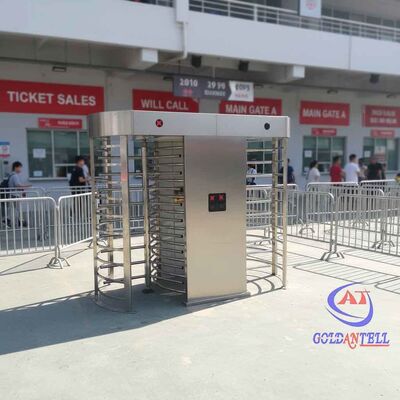

Anti-climb Robust Full Height Turnstile Security Pedestrian Gate with QR Code & Card Reader for Stadium and Airport Site

  • Anti-climb Robust Full Height Turnstile Security Pedestrian Gate with QR Code & Card Reader for Stadium and Airport Site
  • Anti-climb Robust Full Height Turnstile Security Pedestrian Gate with QR Code & Card Reader for Stadium and Airport Site
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-501
Document Full Catalog Of Full Height...te.pdf
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-11 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 2,000pcs per month
Product Details
Product Size 2350L*1350W*2300H (MM) Or Custom Size Material 304 Stainless Steel
Net Weight 200KG Gross Weight 250KG
Communication Port RS485, TCP/IP Working Voltage AC220±10%V, 50±10%HZ
Pass Speed 30 Persons/min Working Environment Indoor/outdoor (with Tent) -25℃ To 70℃
Leave a Message
Product Description
Anti-climb Robust Full Height Turnstile Security Pedestrian Gate with QR Code & Card Reader for Stadium and Airport Site
Product Description
  1. Robust Design: Durable full-height turnstile ensures secure pedestrian control.
  2. Multi-access Control: Supports both card readers and QR codes for versatile access management.
  3. High Security: Anti-climb features prevent unauthorized entry, ideal for stadiums and airports.
Key Features
  • Finely processed with complete functions for high-security applications
  • Ideal for prisons, office buildings, government facilities, and statistical offices
  • LED indicator lights for clear operation status
  • Compatible with various access control systems (RFID, fingerprint, QR code, etc.)
  • Unique two-way anti-reverse function
  • Programmable operating status via built-in control board
  • Automatic reset function (1-60 seconds adjustable)
  • Supports unidirectional or bidirectional access control
  • Remote management capability via computer
  • Customizable housing length and design
  • Adjustable normally open/closed settings
Technical Specifications
Size 2350L * 1350W * 2300H (MM) or custom size
Communication Interface Standard RS 485 interface, distance ≤1200m
Working Voltage AC220±10%V, 50±10%HZ
Working Movement DC 24 V solenoid valve
Reset Time After Breakdown 10 seconds
Passage Width ≤600 mm
Time of Opening 0.2 second
Pass Speed 30 persons/min
Time to Work After Power On 3 seconds
Normal Running Life 3 million cycles
LED Light Direction arrow
Working Environment Indoor/outdoor (with tent) -25℃ to 70℃
Housing Material Domestic standard 304# stainless steel
Relative Humidity ≤90% (non-condensing)
Input Interface +12V level signal or pulse width >100 ms 12V pulse, drive current >10 mA
Competitive Advantages
  • 24-month quality guarantee
  • OEM/ODM services available (custom designs, logos, and packaging)
  • Comprehensive pre-sale and after-sale support
  • Fast delivery times
  • Professional engineering support
  • Special discounts for distributors and agents
Frequently Asked Questions
Can you do OEM service?
We offer comprehensive OEM services including custom turnstile designs (size, material, LED indicators), logo printing, and customized retail packaging. We can also create designs based on your specific requirements.
Is your turnstile compatible with different access control systems?
Yes, our intelligent turnstile works with various access controllers including RFID cards, fingerprint scanners, QR/barcode systems, and ESD test control systems. We can also provide compatible access control software or systems.
What is your warranty and after-sales service policy?
We provide a 12-month quality guarantee and have English-speaking sales and support teams available to assist with any after-sales needs.
What are your lead times?
Standard items:
• 10-50 sets: 5 working days
• 50-100 sets: 7-10 working days
• 200-500 sets: 10-15 working days
Custom designs or packaging may require an additional 3-10 working days.
What payment methods do you accept?
We accept TT, Western Union, and L/C payments. Our company participates in Trade Assurance to protect your order security.
