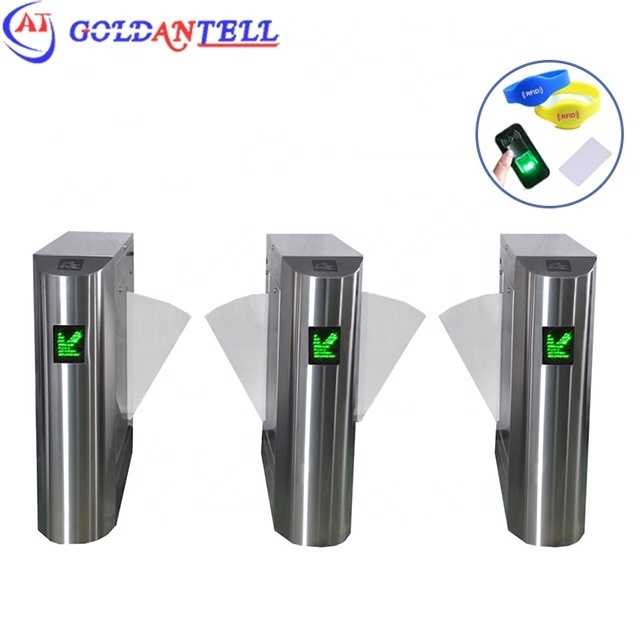

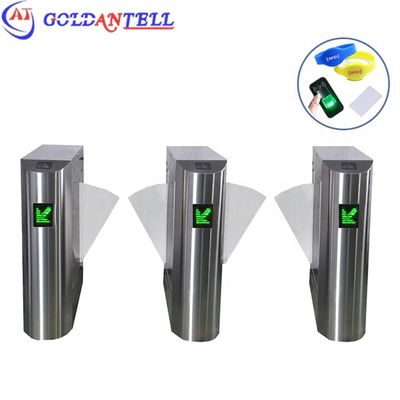

304 Stainless Steel Flap Barrier Gate 1200x300x1000mm NFC RFID Access

Large Image : 304 Stainless Steel Flap Barrier Gate 1200x300x1000mm NFC RFID Access

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-218

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	6-9 working days after received your payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Switching Power Supply:	AC220±10%V 50Hz Or AC110±10%V 60Hz	Material:	304 Stainless Steel
Size:	1200 * 300 * 1000mm	Working Temperature:	-15°C To 75°C
Input Signal:	DC12V/dry/contact/RS485/RS232/Remote	Channel Width:	Single Wing 600mm; Double Wing 900mm
Drive Motor:	DC Brushless Motor	Flap Opening Time:	0.6-0.8s
Flap Length:	285mm	Access Mode:	Single In/out Or Bidirectional
Flow Rate:	40 Persons/min (open), 25-30 Persons/min (closed)	Reset Time:	Default 10s
Waterproof Rating:	IP54	Flap Auto-close:	Timer Protection
Emergency Power:	Auto-open During Failure
Highlight:	304 stainless steel flap barrier gate , NFC RFID access flap barrier , 1200x300x1000mm flap barrier gate

Outside Rainproof Door TCP/IP Two Ways NFC Timely Entry Zk Teco Turnstile Fingerprint

Product Overview

Goldantell intelligent series of turnstile gates feature excellent design and superior performance, manufactured with innovative technology and high-quality materials. These turnstiles offer unique features for a wide range of security, commercial, and industrial applications to meet customer satisfaction. Our pedestrian barrier gates provide security solutions for challenging requirements including anti-pinch, time attendance, and access management.

Standard Features

Constructed with 304 stainless steel (316 stainless steel available upon request)
IP54 waterproof rating with elegant, anti-rust design
CE Certified for quality assurance
Compatible with RFID, fingerprint, QR/barcode, and ESD access control systems

Safety Features & Functions

Anti-pinching protection: Flap wing automatically reverses when IR sensor detects obstacles
Anti-tailgating/anti-retrogradation: Flap pauses when obstacles are detected during closing
Auto-close timer: Prevents unauthorized entry after delay period
LED indicators: Visual status indication (green arrow/red cross) for lane availability
Emergency evacuation: Flaps automatically open during power failure
Reader integration: Supports installation of RFID, barcode scanners, and fingerprint readers

Technical Specifications

Item No.	GAT-218
Cabinet Dimensions	1200 (L) × 300 (W) × 1000 (H) mm
Material	304 stainless steel
Power Supply	AC220±10%V 50Hz or AC110±10%V 60Hz
Flap Operation Time	0.6-0.8 seconds
Access Mode	Single in/out or bidirectional
Flow Rate	40 persons/min (open), 25-30 persons/min (closed)
Display	7-inch screen showing date, time, and entry events

Customization Options

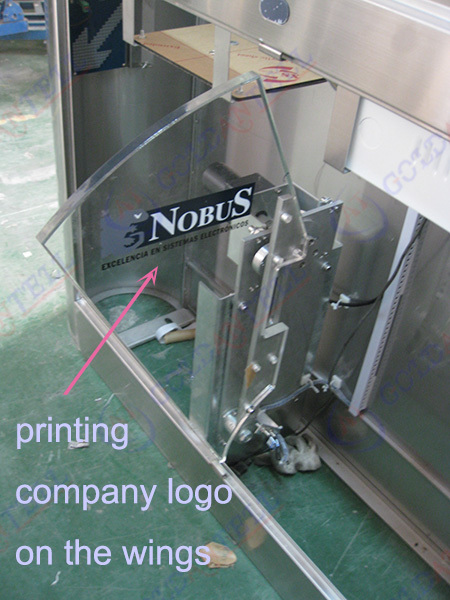

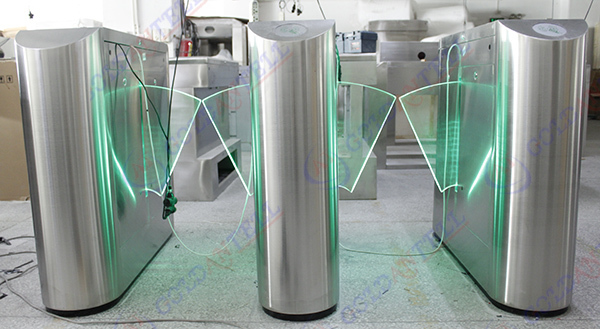

Flap arm colors available in red, blue, black, or transparent with LED lighting
Dual reading window design supports fingerprint + card reader combination

Applications

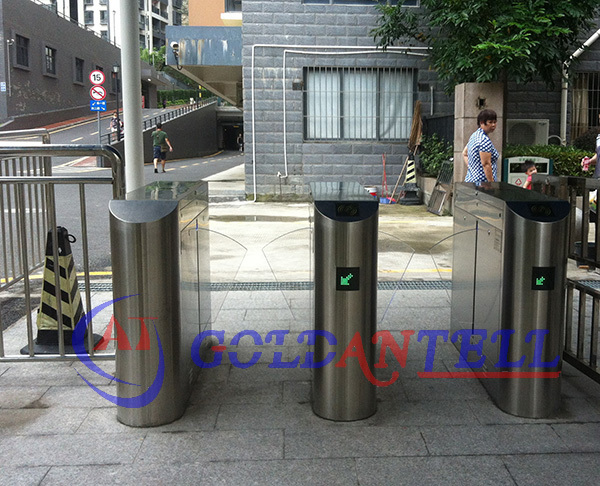

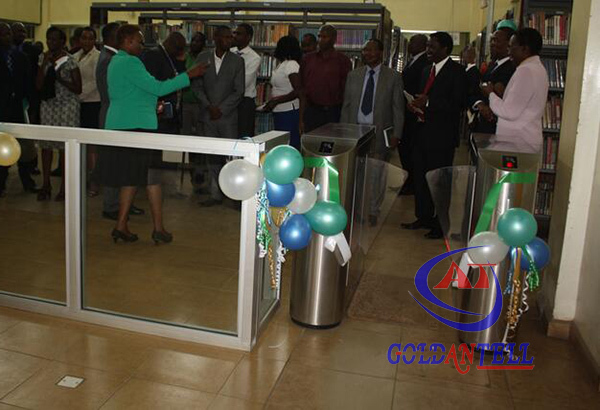

Our flap turnstile barrier series are suitable for subway stations, airports, tourist attractions, exhibition centers, swimming halls, residential areas, corporate entrances, and specialized access control. Note: Optical turnstiles with LED lighting are not recommended for outdoor or coastal installations.
