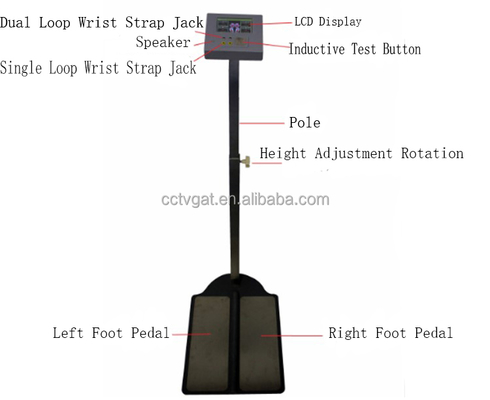

ESD Wrist Strip and Footwear Tester with 4.3 Inch LCD Screen 750KΩ-100MΩ

Large Image : ESD Wrist Strip and Footwear Tester with 4.3 Inch LCD Screen 750KΩ-100MΩ

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	US$570-650

Contact Now

Detailed Product Description

Power Supply:	220V, 50HZ 20V	Pass Speed:	25-30 Person/min
Withstand Voltage:	5~12V (standard Power Supply 9V, 1A)	Display Screen Size:	4.3-inch LCD Screen
Working Current:	300mA	Working Temperature:	-10~+60 °C
Wrist Strap Resistance:	750KΩ~10MΩ	Wrist Strap Accuracy:	±5%
Electrostatic Shoes Resistance:	750KΩ~100MΩ	Electrostatic Shoes Accuracy:	±10%
Response Speed:	0.5S	Alarm Mode:	Dual Prompt With Voice Screen
Test Range Wrist:	750KΩ - 10MΩ	Test Range Shoes:	750KΩ - 100MΩ
Height Adjustment Range:	80~120 Cm
Highlight:	ESD wrist strip tester with LCD screen , ESD footwear tester 750KΩ-100MΩ , ESD gate tester with warranty

ESD Wrist Strip and Footwear Tester Combo

Anti-static test equipment with 4.3-inch touch screen, designed for labs, factories, and testing agencies.

Product Specifications

Attribute	Value
Type	Other
Special Features	Time & Attendance
Network	WiFi
Power Supply	220V, 50HZ 20V
Pass Speed	25-30 person/min
ESD Tester Withstand Voltage	5~12V (standard power supply 9V, 1A)

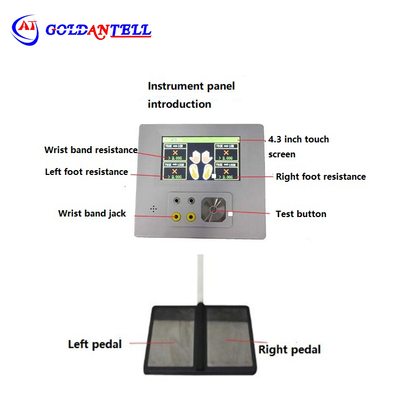

Display Screen	4.3-inch LCD with voice prompts
Working Current	300mA
Working Temperature	-10~+60°C
Wrist Strap Range	750KΩ~10MΩ (±5% accuracy)
Electrostatic Shoes Range	750KΩ~100MΩ (±10% accuracy)

Available Models

Three configuration options available:

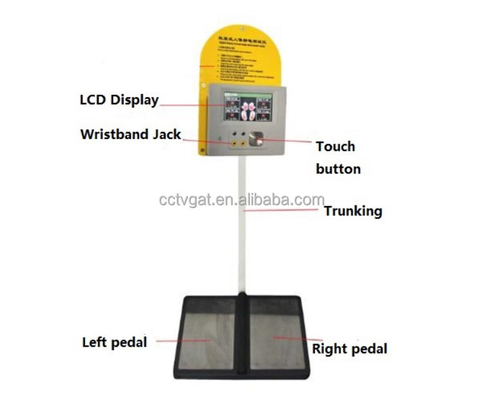

1. Wall Mounted Type

2. Turnstile Gate Installation Type

3. Lift Type

Technical Parameters

Electrical Specifications

Power supply: 220V, 50HZ
Withstand voltage: 5~12V (standard 9V, 1A)
Working current: 300mA
Operating temperature: -10℃~60℃
Response speed: 0.5S
Alarm mode: Dual prompt with voice and screen

System Parameters

Wrist strap: 750KΩ~10MΩ (±5% accuracy)
Electrostatic shoes: 750KΩ~100MΩ (±10% accuracy)

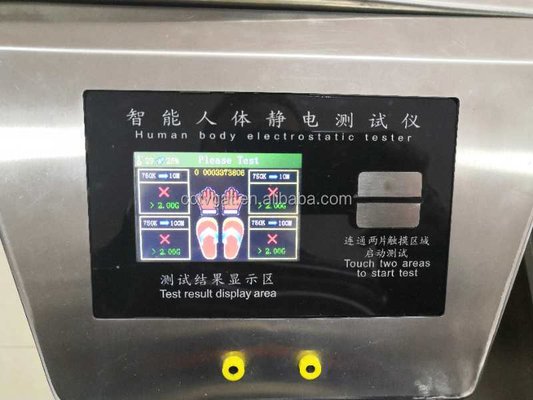

Test results are displayed with color-coded indicators and voice prompts:

Red display: Unqualified (R<750KΩ or R>100MΩ for shoes, R>10MΩ for wrist strap)
Green display: Pass (R≥750KΩ)

Key Features

9V power supply ensures complete human safety
Inductive test button - durable and resistant to damage
Simple structure with easy transfer capability
Clear screen display with voice prompts for intuitive operation
Fast test speed with results accurate to two decimal places
Modular design for convenient inspection and maintenance

Working Principle

The tester forms a conductive loop between the user's static shoes and the test pedal (insulated from the floor). When resistance falls within specified ranges, it confirms safe electrostatic levels for entering controlled areas. The split pedal design with LCD screen provides faster, more accurate testing compared to traditional integrated methods.

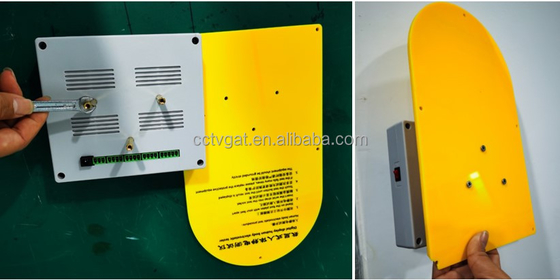

Installation Guide

Simple four-step installation process:
