300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory

  • 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory
  • 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory
  • 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory
  • 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory
  • 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory
  • 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory
Place of Origin Guangdong, China
Brand Name Goldantell
Minimum Order Quantity 2
Price US$570-650

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 220V, 50HZ Withstand Voltage 5~12V
Standard Power 9V, 1A Working Current 300mA
Working Temperature -10~+60 °C Response Speed 0.5S
Pass Speed 25-30 Person/min Display Screen 4.3-inch LCD
Wrist Strap Range 750KΩ~10MΩ Wrist Strap Accuracy ±5%
Electrostatic Shoes Range 750KΩ~100MΩ Electrostatic Shoes Accuracy ±10%
Alarm Mode Voice And Screen Test Button Inductive
Height Adjustment 80~120 Cm
Highlight

300mA ESD wrist strap tester

,

ESD footwear tester with LCD

,

lab factory ESD tester
Leave a Message
Product Description
300mA ESD Wrist Strap and Footwear Tester

Human Body Anti-static Test Equipment with 4.3 Inch LCD Screen for Lab or Factory use

Product Specifications
Attribute Value
Type Card, ESD
Special Features Touch Screen
Network WiFi
Power supply 220V, 50HZ 20V
Pass speed 25-30 person/min
ESD Tester withstand voltage 5~12V (standard power supply 9V, 1A)
Display Screen Size 4.3-inch LCD screen with voice prompts
Working current 300mA
Working temperature -10~+60 °C
Application Factory, Lab, Testing agency etc, indoor
Response speed 0.5S
Wrist strap 750KΩ~10MΩ Accuracy ±5%
Electrostatic shoes 750KΩ~100MΩ accuracy ±10%
Product Variants

The Wrist Strap and Footwear Tester is available in 3 configurations:

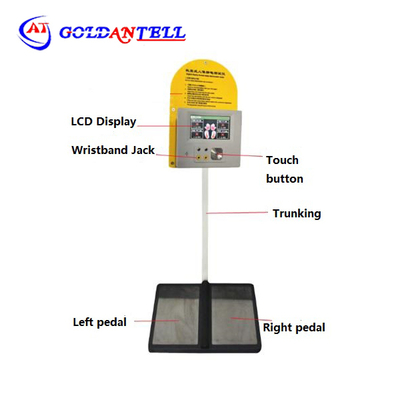

1. Wall Mounted Type
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 0

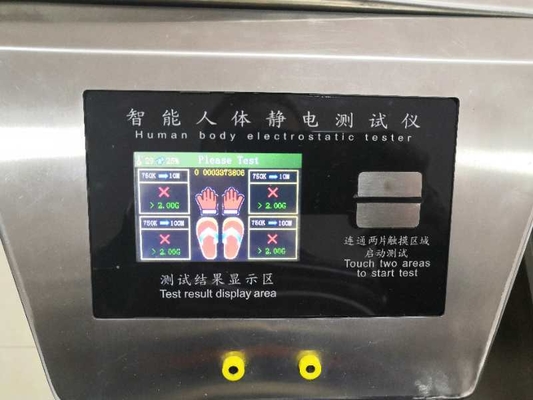

2. Turnstile Gate Mounted Type
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 1

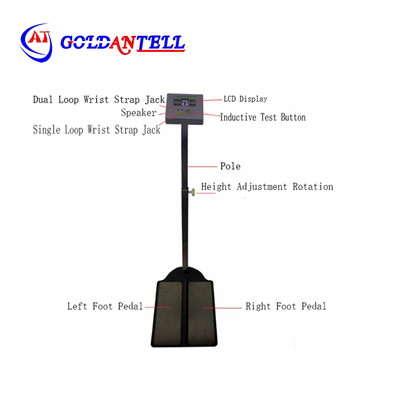

3. Lift Type
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 2
Technical Parameters
ESD Tester Electrical Parameters
  • Power supply: 220V, 50HZ
  • Equipment withstand voltage: 5~12V (standard power supply 9V, 1A)
  • Working current: 300mA
  • Working temperature: -10℃~60℃
  • Response speed: 0.5S
  • Alarm mode: dual prompt with voice screen
ESD Tester System Parameters

Factory default settings (stand-alone version):

  • Wrist strap: 750KΩ~10MΩ Test range: 750KΩ - 10MΩ Accuracy ±5%
  • Electrostatic shoes: 750KΩ~100MΩ Test range: 750KΩ - 100MΩ accuracy ±10%

Test result indicators:

  • Red display: R<750KΩ - Voice prompt "unqualified"
  • Green display: R≥750KΩ - Voice prompt "Pass"
  • Red display: R>100MΩ - Voice prompt "unqualified"
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 3
Key Features
  • 9V power supply ensures absolute human safety
  • Inductive test button - durable and resistant to damage
  • Simple structure with no fixed installation required - easy to transfer
  • 4.3-inch LCD screen with voice prompts for intuitive operation
  • Fast testing speed with results accurate to two decimal places
  • Modular design for easy inspection and maintenance
Working Principle

When the user stands on the test pedal and touches the test button, a circuit is formed between their electrostatic footwear and the test pedal. The system measures this circuit's resistance. If the resistance falls within the specified range, it confirms the footwear's conductivity is adequate and the user's electrostatic charge is at safe levels for entering sensitive areas.

The split foot pedals and dual-loop wrist straps provide simultaneous testing of both feet and hands, ensuring comprehensive protection. The LCD screen provides immediate, clear test results.

Installation Guide

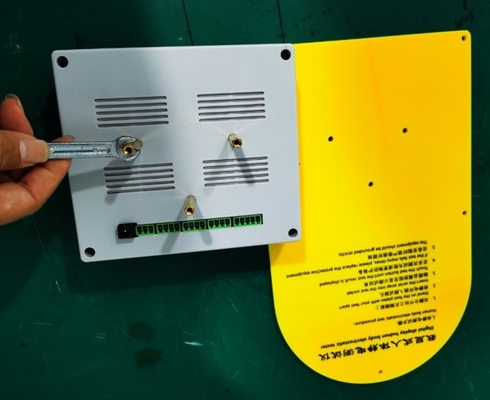

1. Fix the instrument on the back plate
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 4

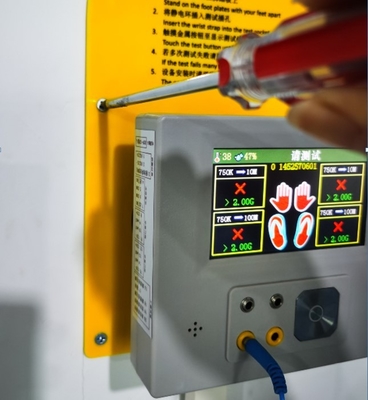

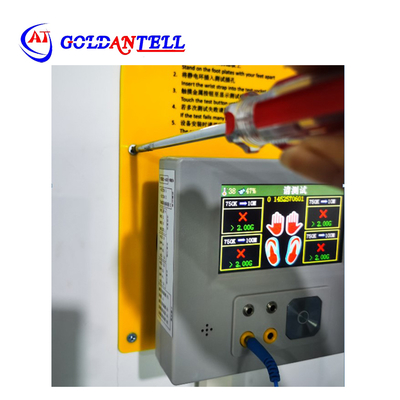

2. Mount the back panel to the wall
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 5
3. Secure wiring in cable channels
4. Install foot pedal and connect power
300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 6 300mA ESD Wrist Strap Footwear Tester with 4.3 Inch LCD Screen for Lab Factory 7
