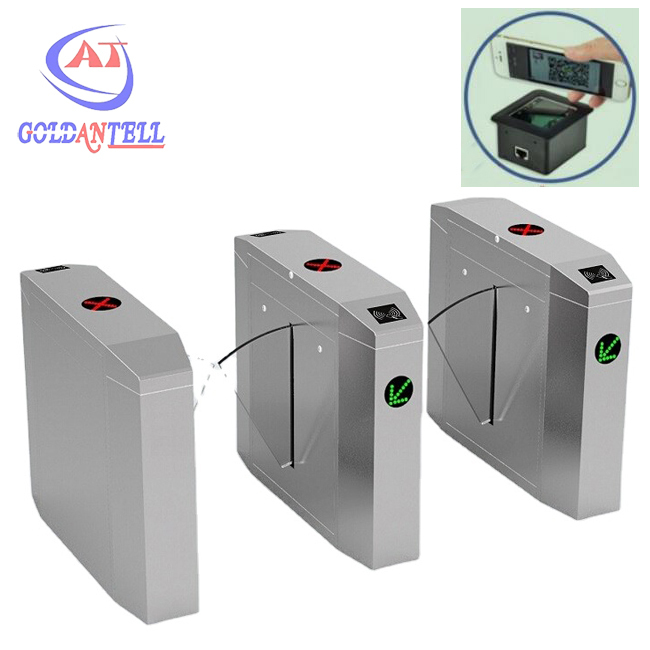

304 Stainless Steel Flap Barrier Gate 1200mm with Barcode System
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC110V±10V,60Hz / AC220V±10V,50Hz | Material | 304 Stainless Steel |
|---|---|---|---|
| Size | 1200/1400*300*990mm | Direction | Single Or Bidirectional |
| Working Interface | RS485/relay Signal | Passage Width | Less Than 600mm |
| Input Interface | +12V Electrical Signal Or DC Impulse Signal With Width >100ms | Operating Temperature | -15°C--75°C |
| Relative Humidity | ≤95%, No Condensation | Arm Length | Less Than 60 Cm |
| Passing Speed | 40-45 Persons/min(IC Card) | Motor | 0.5NM/24V(Fully Automatic) |
| Input Connection | +12V Level Signal Or Pulse Wide>100ms DC12V | Communication Connection | RS485 Communication Module Standard |
| Material Thickness | No Less Than 1.3mm | ||
| Highlight | 304 stainless steel flap barrier gate,1200mm flap barrier gate with barcode,stainless steel barcode flap barrier |
||
Product Description
Automatic Flap Turnstile with SDK Software & Payment Management Barcode System
High-performance access control solution for scenic spots, stadiums, and cinemas
Product Specifications
| Attribute | Value |
|---|---|
| Product name | Retractable biometric Barcode ticket flap gate barrier |
| Type | Flap barrier gate |
| Power Supply | AC110V±10V,60Hz / AC220V±10V,50Hz |
| Material | 304 stainless steel |
| Size | 1200/1400*300*990mm |
| Direction | Single or bidirectional |
| Customization | Size and logo |
| Working Interface | RS485/relay signal |
| Passage Width | Less than 600mm |
| Input Interface | +12V electrical signal or DC impulse signal with width >100ms |
Product Overview
The Goldantell smart flap turnstile is a high-tech access control solution that provides intelligent management for passageways. As an upgraded version of traditional tripod turnstiles and swing barriers, this product features precision engineering, comprehensive functionality, and premium construction suitable for high-end applications.
Key Features
- Integrated with mechanical, electronic, and microprocessor control systems
- Compatible with various identification methods including IC cards, ID cards, barcodes, and fingerprints
- Available in single motor (for single passageways) and double motor (for multiple passageways) configurations
- Robust 304 stainless steel construction with thickness ≥1.3mm
- High passage speed of 40-45 persons/minute (with IC card)
- Wide operating temperature range: -15°C to 75°C
- Multiple communication options including RS485 standard
Technical Specifications
| Parameter | Value |
|---|---|
| Power | AC220,110 ±10%V, 50HZ |
| Operating temperature | -15°C to 75°C |
| Relative Humidity | ≤95%, No Condensation |
| Arm length | Less than 60 cm |
| Passing Speed | 40-45 persons/min (IC Card) |
| Motor | 0.5NM/24V (Fully Automatic) |
Product Images
Company Profile

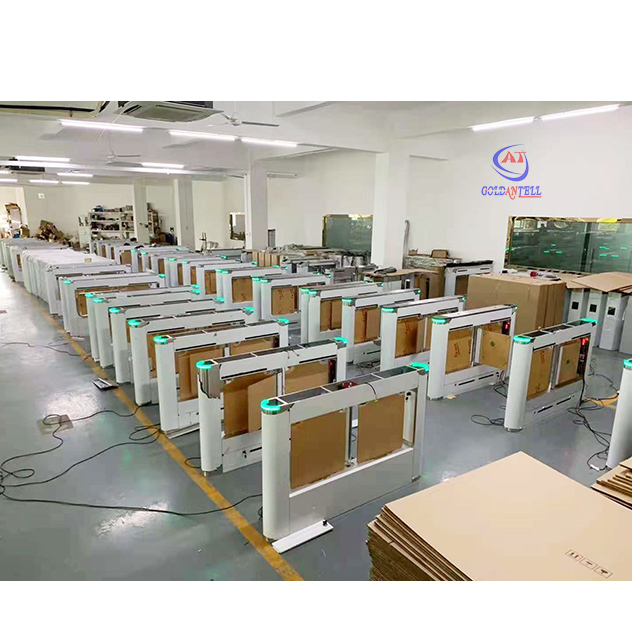

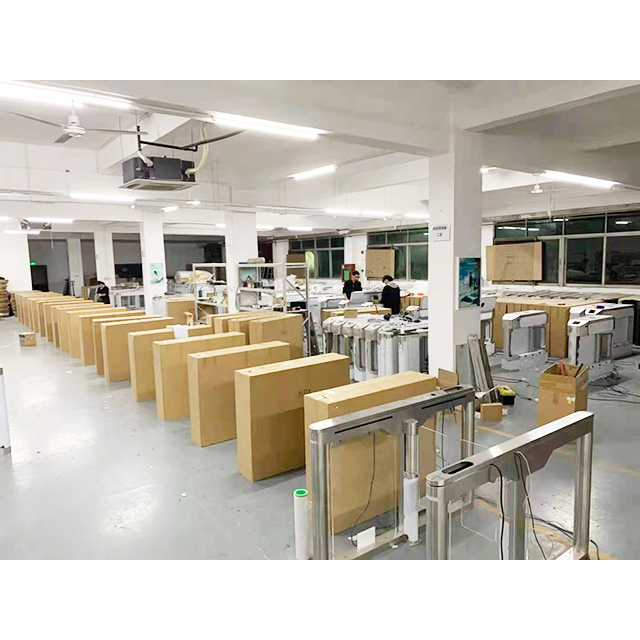

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer and exporter of intelligent turnstile and parking management products with over 10 years of industry experience. Our products are exported to more than 50 countries worldwide.
Quality Certifications
- CE certified
- SGS certified
- ISO9001 certified
Our Advantages
- Comprehensive after-sales service including replacement and lifetime repair
- Experienced technical support team available for installation assistance
- Secure payment options with Alibaba Trade Assurance
Shipping Information
- Standard delivery time: 7 days after payment confirmation
- Shipping options: Sea freight (15-60 days), Express (3-5 days), Air cargo (2-7 days)
- Packaging: Carton box with wooden case/crate for protection
