Facial Recognition ESD Swing Turnstile Gate Wrist Straps and Footwear Tester Human Body Staticstic
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificated |
| Model Number | GAT-ESD306 |
| Minimum Order Quantity | Negotiable |
| Price | negotiation |
| Packaging Details | wooden case+carton box |
| Delivery Time | 3-6 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Monitor | 4.3 Inches | Accessories | Wrist-strap, Right And Left Shoe |
|---|---|---|---|
| Control Software | No | Sample | Available |
| Working Environment | Indoor / Outdoor ( Shelter),-10-50℃ | Material | 304 Stainless Steel |
| Application | Office\School\Airport\Subway\Outdoor | Power Supply | AC220V/110V |
Product Description
Facial Recognition ESD Swing Turnstile Gate Wrist Straps and Footwear Tester Human Body Staticstic
ESD Tester Descriptions
System:Android
CPU:High -performance ARM architecture 32 -bit 2 cores
Storage memory:Memory 2GB, data storage 8GB
Display: 8 -inchHD IPS LCD touch screen,
resolution:800*1280
lens:4.3mm
Camera:Two -headed camera, 200W pixels, support wide dynamics
Wifi:built-in
Microphone:support
Identification performance
Identify distance:0.5-3m
Recognition time:Lessthan 300ms
Hum an face library capacity:1:N N<=20000
Accuracy :98%
Oral power:1 xDC12V DC005 mother head 2.1*5.5
USB port :1*USB2.0,1*OTG
Relay output:1Xswitching output,2pin 3.8 spacing terminal
Network:1 xRJ45 network port
ESD Tester Parameter
|
Font color |
Static shoes test |
wrist strap test |
alarm sound |
results |
|
Red words |
R＜750KΩ | R＜750KΩ |
Voice prompt |
unqualified |
|
Green words |
R≥750KΩ | R≥750KΩ |
voice prompt |
qualified |
|
Red words |
R＞100MΩ | R＞10MΩ |
voice prompt |
unqualified |
Face recognition terminal Technical Parameters
ESD Swing Turnstile Gate Specification:
1) Framework: 1.2-1.5mm, 304 Grade Stainless Steel
2) Dimension: 1200*280*1000(mm)
3) Weight: 70(kg)
4).unlock time: 0.2s ;
5).Pass capacity:40 person /min
6).pass width:≤600mm
7).Input voltage:110V,50HZ;
8).Magnetic driving voltage:24v
9). Environment temp:-25~+70;
10).Max power consumption:30w
11).Input:dry contact,12v pulse;
12). Humidity: about 95%

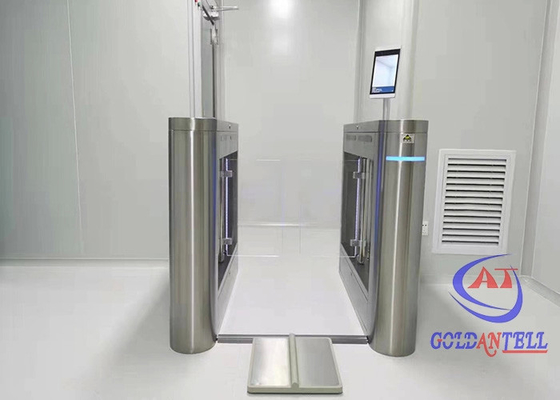

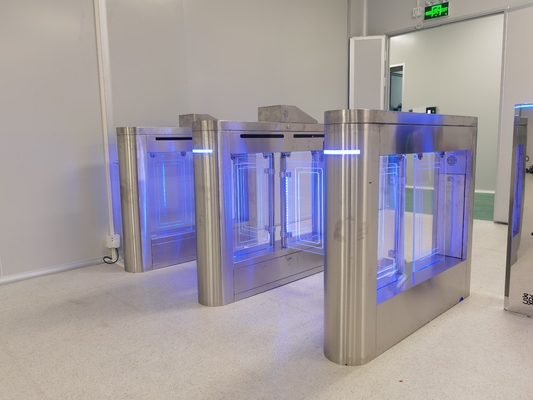

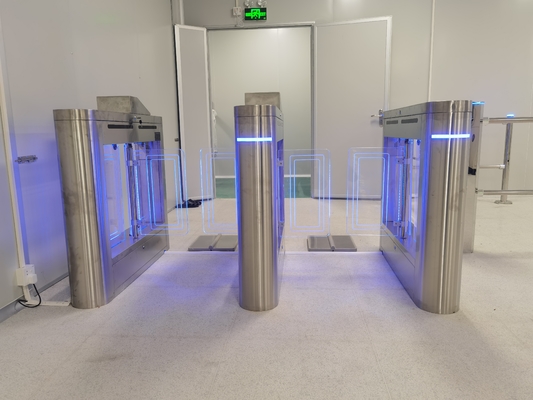

ESD Swing Turnstile Gate Picture
Stardard Features & Functions of ESD Swing Turnstile Gate
1. When the tester on the pedals, touch test button, anti-static shoes worn by personnel with the static test between the pedals can form a loop, (electrostatic test between the pedal and the floor should be insulated) we measure is that the loop resistance, when the loop resistance within a prescribed scope, electrostatic conductive performance good shoes and personnel with electrostatic voltage in a safe range.
2. At this time, personnel entering the electrostatic control area will not damage the precision electronic products due to the release of their own electrostatic charge.
3. If the electrostatic test fails, you will not be allowed to enter the electrostatic control area.
4. Please replace the electrostatic protection equipment and eliminate your own static electricity. After passing the test, you can enter the relevant area.
2. At this time, personnel entering the electrostatic control area will not damage the precision electronic products due to the release of their own electrostatic charge.
3. If the electrostatic test fails, you will not be allowed to enter the electrostatic control area.
4. Please replace the electrostatic protection equipment and eliminate your own static electricity. After passing the test, you can enter the relevant area.
Operation Instruction of ESD Swing Turnstile Gate
1. After power on, the screen is standby. At this time, you can directly test whether the wrist strap and electrostatic shoes are qualified.
2. Click the screen to call up the login menu, and enter "88888888" password to enter the parameter setting interface.
3. After entering the setting interface, the first display is the parameters of the wrist band. The upper and lower limits can be modified autonomously according to requirements.
4. Click the the language setting. The language displayed by the instrument can be set in English / Chinese.
