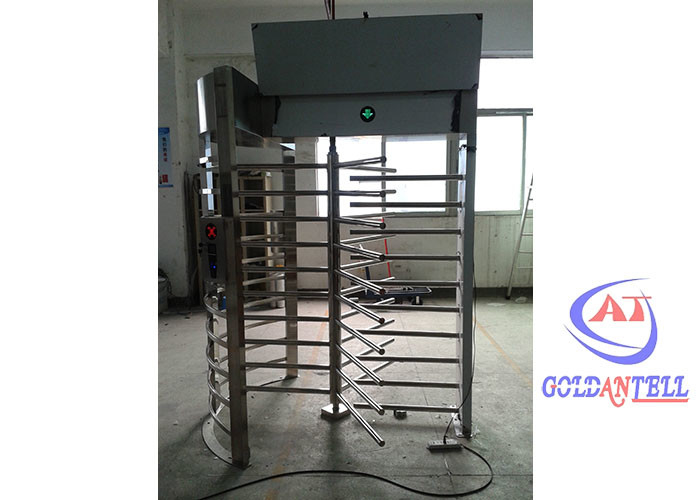

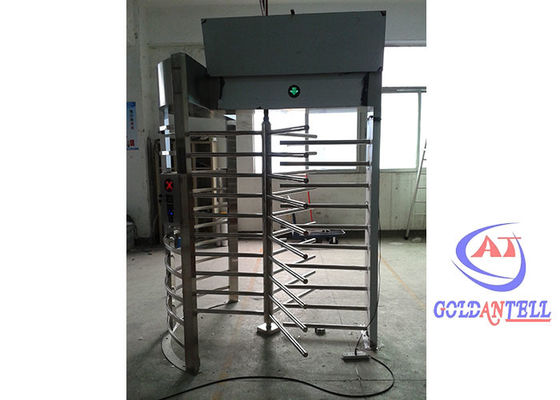

304 Stainless Steel Full Height Turnstile Gate Single Passage With Barcode Scanner

  • 304 Stainless Steel Full Height Turnstile Gate Single Passage With Barcode Scanner
  • 304 Stainless Steel Full Height Turnstile Gate Single Passage With Barcode Scanner
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE certificate
Model Number GAT-502
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certificate CE Usage Office,Hotel,Library,Metro Station,ect.
Working Environment Indoor / Outdoor ( Shelter),indoor Direction One-way,bi-direction Adjustable
Material 304 Stainless Steel, (or Custom 316) Dimension L1500xW1500xH2250mm
Transit Speed 25~30 Persons / Min Power Supply 110~240 V(AC)
Passage Width 600mm Warranty 12 Months
Highlight

304SS Full Height Turnstile Gate

,

Single Passage Full Height Turnstile Gate
Leave a Message
Product Description
304 Stainless Steel Full Height Turnstile Gate Single Passage With Barcode Scanner
Cost-effective single passage 304 stainless steel full height turnstile gate with integrated barcode scanner for secure access control.
Quick Description of Revolving Turnstile
  • Compact and cost-effective entrance solution
  • Brushed stainless steel construction - robust, rigid, anti-rust and durable
  • Suitable for both indoor and outdoor installations
  • Emergency release mechanism - arms drop down when power is off
  • Available in full automatic, semi-automatic (most common), and manual operation modes
Technical Specifications
Housing material Domestic standard 304# stainless steel
Dimensions 1600*1500*2250mm (MM)
Working voltage AC220±10%V 50±10%HZ
Working movement DC24V solenoid valve
Roof dimensions Φ1500MM
Reset time after break down 10 seconds
Passage width ≤600 mm
Opening time 0.2 second
Pass speed 30 persons/min
Time to work after power on 3 seconds
Normal running life 3 million cycles
LED light Direction arrow indicator
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with cover) -25℃ to 70℃
Relative humidity ≤90% (non-condensing)
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Applications
  • Public Places: Lobby entry, subway stations, airports, libraries, parks, exhibition halls, stadiums, museums, apartments, residential areas, offices, commercial buildings
  • Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, nightclubs, swimming pools, gyms
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, corporate entrance/exit attendance systems
Features & Functions
  • Low noise operation with no mechanical impact
  • Single or bi-directional access control
  • High-speed operation with quick response
  • Premium design with high-quality construction
  • Robust, rigid, anti-rust and durable stainless steel body
  • Smooth working system with self-test function
  • Optional counting function (counter)
  • Information display option (LCD screen)
  • Audible sound prompts
  • Invalid entry alarm system
  • Auto-lift-arm function (full automatic models)
Control Options
  • Access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket system
  • Special functions: counter operation, coin-operated systems
  • ESD tester system and function
Frequently Asked Questions
How long is your warranty period?
One-year guarantee with lifetime technology support.
What are your payment methods?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance, 50% before shipment (negotiable for best cooperation).
Which payment terms do you accept?
T/T, Western Union, LC, PayPal, and other standard methods.
Can we visit your factory?
Yes, visitors are welcome at any time.
How is the product packaged?
Export-standard wooden case packaging with pearl wool and plastic wrap, exempt from inspection.
Why Choose Our Revolving Turnstile
  • 15+ years ODM/OEM experience with custom design, logo, and packaging capabilities
  • Friendly professional customer service available 16 hours/day
  • Complete solutions including product and system software management
  • Special repair service: No product return needed - video diagnosis with free spare parts for first year
