Product Details:
Payment & Shipping Terms:
|
Product Size: | 3100L*1350 W*2300 H (MM) Or Custom Size | Material: | 304 Stainless Steel |
---|---|---|---|

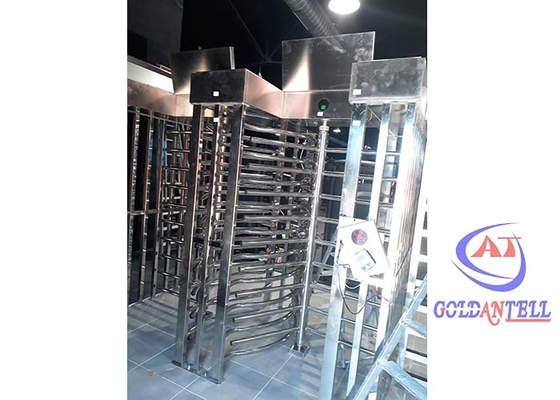

Type: | Dual Access Full Height Turnstile | Net Weight: | 200KG |
Gross Weight: | 250KG | Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
Communication Port: | RS485 ,TCP/IP | Application: | Prison, Factory, Government Etc. |
Package: | 4 Packages,10CBM | ||
Highlight: | RFID Reader Access Control Turnstile Gate,QR Code Access Control Turnstile Gate |
Size |
2350L*1350 W*2300 H (MM) or custom size |
Communication interface | standard RS 485 interface, distance ≤1200m |
Working voltage | AC220±10%V, 50±10%HZ |
Working movement | DC 24 V solenoid valve |
Reset time after break down: | 10 seconds |
Passage width: |
≤600 mm |
Time of opening: | 0.2 second |
Pass speed: | 30 persons/min |
Time to work after power on: |
3 seconds |
Normal running life: | 3 million |
LED light: | direction arrow |
Working environment: |
indoor/outdoor (with a tent over) -25℃ ~ 70℃ |
Housing material |
domestic standard 304# stainless steel |
Relative humidity: | ≤90% coagulation free |
Input interface: |
+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
