Rfid Reader Tcp / Ip Flap Barrier Gate Indoor Outdoor
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-218 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200*280*1000mm | Package Size | 1280*370*1070mm |
|---|---|---|---|
| Application | Indoor Outdoor | Net Weight | 65KG |
| Gross Weight | 70KG | Communication Port | RS485 ,TCP/IP |
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | rfid reader flap barrier gate,tcp / ip flap barrier gate,rfid reader flap barrier turnstile |
||
Product Description
RFID Reader TCP/IP Flap Barrier Gate (Indoor/Outdoor)
ESD Footwear Tester with fingerprint recognition, face thermal detection, and pedestrian security features in a luxury channel flap barrier gate system.
Description of RFID Smart Gate
- Integrated with ESD tester system or access control systems like facial recognition for staff, providing civilized and orderly access methods
- Quick ESD equipment testing capability - tests three independent devices (Left Shoes, Right Shoes, Wrist Strap) simultaneously
- Optional LCD screen provides flexibility for system requirements
- Available in single core (movement) or dual core (double movement) structures to meet different installation needs
- High flow rate with advanced anti-tailgate functions
- Double protection with mechanical and infrared anti-pinch function for safer passage
Technical Specifications
| Item | Details |
|---|---|
| Model | Single motor or double motors |
| Name | Bridge type flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after breakdown | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24V brush motor |
| Working environment | Indoor/outdoor (with tent), -10℃ to 70℃ |
| Communication interface | Standard RS485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width >100ms, 12V pulse, drive current >10mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | 304# stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Typical Applications
- Movie theaters
- Fitness halls
- Country clubs
- Fairgrounds
- Clubs
- Swimming pools
- Fitness gyms
- Hotels
- Factories
- Banks
- Hospitals
- Schools
Key Functions
- Rapid identification of magnetic cards, bar code cards, ID cards and IC cards
- Maintenance-free DC brushless motor
- Auto-lift-arm function with alert when power is restored
- Auto-drop-arm function (default) or free passing when power is off
- Automatic reset function (adjustable 1-60s timeout)
Frequently Asked Questions
How about your package?
Seaworthy wooden case with foam padding
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment
How about the lead time?
Regular products: 5-8 working days. Customized products: 9-13 working days
Our Services
- 16-hour professional customer support
- 10+ years ODM/OEM experience with custom design and branding options
- Complete system software management solutions
- Remote troubleshooting with video support and free spare parts replacement within 1 year warranty
Product Advantages
- Comprehensive security solutions saving time and costs
- Competitive pricing with OEM/ODM services
- Professional technical support and after-sales service
- Custom design and free logo options for large orders
- Fast delivery with safe shipping methods
- 1-year warranty with lifetime technical support
- 24-hour online service with quick response
Access Control Options
- Multiple access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket
- Special functions: counter, coin-operation
- Integrated ESD tester system

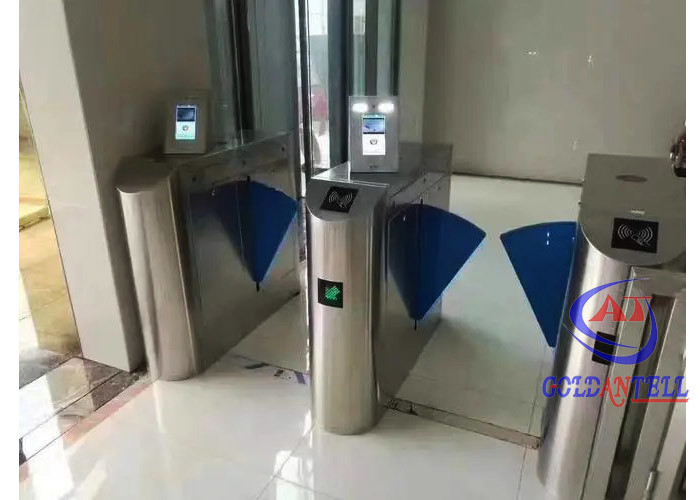

Product Image
