Anti Tailing Fingerprint Full Height Turnstile Rotating Security Turnstile Gate For Plant
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificate |
| Model Number | GAT-504 |
| Document | Datasheet Of GAT-504 Full h...os.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certificate | CE | Usage | Office,Hotel,Library,Metro Station,ect. |
|---|---|---|---|
| Working Environment | Indoor / Outdoor ( Shelter),indoor | Direction | One-way,bi-direction Adjustable |
| Material | 304 Stainless Steel, (or Custom 316) | Dimension | L1500xW1500xH2250mm |
| Transit Speed | 25~30 Persons / Min | Power Supply | 110~240 V(AC) |
| Passage Width | 600mm | Warranty | 12 Months |
| Highlight | Fingerprint Full Height Turnstile,Anti Tailing Full Height Turnstile,Rotating Security Turnstile Gate |
||
Product Description
Anti Tailing Fingerprint Full Height Turnstile Rotating Security Turnstile Gate For Plant
Product Overview
Anti-Tailing Fingerprint Access Control Rotating Gate Full Height Turnstile Security Turnstile designed for industrial plant security.
Quick Description
- Compact and cost-effective entrance solution
- Brushed stainless steel construction for durability and rust resistance
- Suitable for both indoor and outdoor installations
- Emergency release mechanism activates during power failure
- Available in full automatic, semi-automatic, and manual operation modes
Technical Specifications
| Housing material | Domestic standard 304# stainless steel |
|---|---|
| Size | 1600*1500*2250mm (MM) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Roof Dimensions | Φ1500MM |
| Reset time after break down | 10 seconds |
| Passage width | ≤600 mm |
| Time of opening | 0.2 second |
| Pass speed | 30 persons/min |
| Time to work after power on | 3 seconds |
| Normal running life | 3 million cycles |
| LED light | Direction arrow |
| Direction | Single or bi-directional (optional) |
| Working environment | Indoor/outdoor (with a tent over) -25℃ ～ 70℃ |
| Relative humidity | ≤90% coagulation free |
| Communication interface | Standard RS485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Applications
- Public Places: Lobby entry, subway, airports, stations, libraries, parks, museums
- Entertainment Venues: Movie theaters, fitness centers, clubs, swimming pools
- Business Organizations: Hotels, factories, banks, hospitals, schools, corporate entrances
Features & Functions
- Low noise operation with no mechanical impact
- Single or bi-directional operation options
- High-speed operation with quick response
- Premium design with robust, rust-resistant construction
- Smooth working system with self-test function
- Optional counting function with counter
- Information display option (LCD screen available)
- Audible sound prompts and invalid entry alarm
- Auto-lift-arm function (full automatic models)

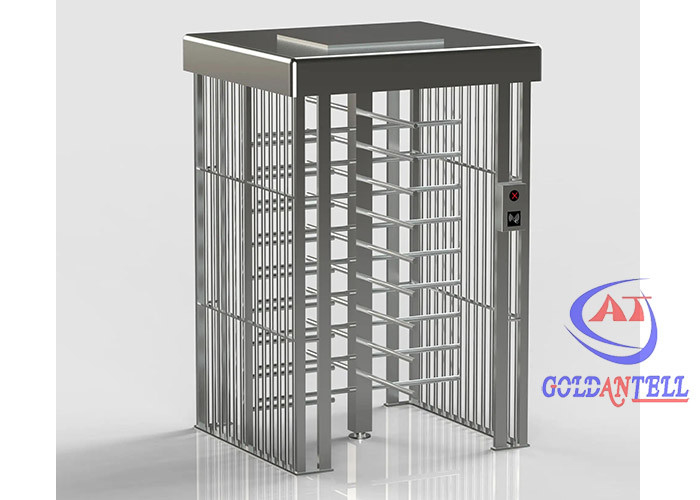

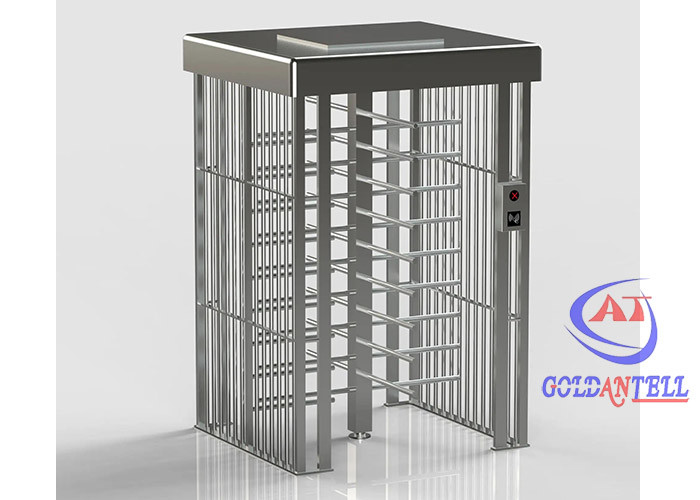

Product Image
Frequently Asked Questions
1) How long is your warranty period?
One-year guarantee with lifetime technology support.
2) How about the payment method?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance, 50% before shipment (negotiable).
3) Which payment terms do you accept?
T/T, Western Union, LC, PayPal, and other standard methods.
4) Can we visit your factory?
Yes, visitors are welcome at any time.
5) How about your package?
Export-standard wooden case packaging with protective pearl wool and plastic wrap.
Control Options
- Access control systems: fingerprint, face recognition, card reader, QR code, barcode ticket
- Special functions: counter operation, coin operation available
- ESD tester system compatibility
Why Choose Our Turnstile
- 15+ years ODM/OEM experience with custom design capabilities
- Professional customer support available 16 hours/day
- Complete system solutions including software management
- Special repair service: video diagnosis with free spare parts replacement within warranty
