Automatic Pedestrian Speed Gate Double Swing Flap Barrier Gate For Metro Station
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-205 |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Office\School\Airport\Subway\Outdoor | Dimension | 1400 * 280 * 1000mm |
|---|---|---|---|
| Power Supply | AC100V-240V | Passing Speed | 45persons/min |
| Driving Motor | 24V Brushless DC Motor | Usage | Subway Station Mall |
| Material | Stainless Steel 304/316 | Lane Width | 60,90,110cm Or Others |
| Highlight | Automatic Pedestrian Speed Gate,Double Swing Flap Barrier Gate,Flap Barrier Gate For Metro Station |
||
Product Description
Automatic Pedestrian Speed Gate Double Swing Flap Barrier Gate For Metro Station
Premium Automatic Flap Barrier System
Goldantell intelligent series turnstile gates combine excellent design with superior performance, utilizing innovative technology and high-quality materials. These robust barrier gates feature unique security capabilities for commercial, industrial, and metro station applications.
Key Features
- DC motor-driven electric control ensures stable, reliable operation with low failure rate
- Ultra-bright LED directional indicators for clear traffic guidance
- Seamless integration with face recognition, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
- Custom OEM/ODM services available for size, shape, and specifications
- Constructed with 304 stainless steel (316 stainless steel optional) featuring IP54 waterproof rating, elegant anti-rust design, and durable construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time | 0.2s |
| Arm material | 10mm Acrylic, tempered glass or steel (customizable) |
| Access mode | Single in/out or bidirectional |
| Passthrough width | 900mm (customizable) |
| Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| Communication interface | RS485, TCP/IP |
| Infrared sensors | 6~10 pairs |
| Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| Reset time after breakdown | Default 10s (adjustable) |
| MCBF | 5,000,000 Cycles |
| Working humidity | 30%~95% |
Standard Features
- Bi-directional or single way operation options
- Auto-open gate during power failure for fire safety compliance
- Anti-tailgating feature prevents unauthorized entry
- Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Mechanical lock prevents forced opening of swing flaps
- Fast 0.2s opening/closing response time
- Multiple infrared sensor pairs for enhanced security
Applications
Ideal for metro stations, banks, fitness gyms, factories, hotels, movie theaters, and office buildings.
Customer Service
- 16-hour professional customer support
- 10+ years ODM/OEM experience with custom design services
- Complete system software management solutions
- Remote troubleshooting with video support and free spare parts replacement within warranty
Company Advantages
- 13+ years specialized in turnstile systems
- Full customization services including OEM/ODM
- Cost-optimized designs without compromising quality
- 3-minute average response time for all customer inquiries
Packaging Options
- Export: Wooden case with pearl wool and plastic wrap (inspection exempt)
- Domestic: Bubble wrap with carton or pearl wool with wooden packaging
- Professional, environmentally friendly packaging solutions
Frequently Asked Questions
Q: Can I have a system that only supports ESD test without software?
A: Yes, multiple options are available in our catalog.
Q: What languages are supported?
A: English and Chinese language versions available.
Q: Are manuals provided?
A: Yes, English version manuals and installation instructions included.
Q: Is customization available?
A: Yes, we specialize in OEM/ODM services with extensive government project experience.
Q: Payment terms?
A: 100% payment before shipment with product/packaging photos/videos provided.
Q: Delivery terms?
A: EXW, FOB, CFR, CIF, DDU options available.

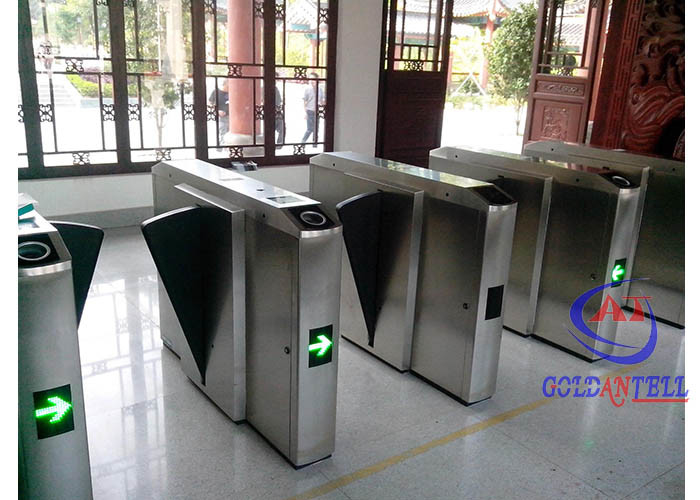

Product Image
