1 In 1 Out Automatic Flap Barrier NFC Access Control Turnstile Gate High Speed Pass

  • 1 In 1 Out Automatic Flap Barrier NFC Access Control Turnstile Gate High Speed Pass
  • 1 In 1 Out Automatic Flap Barrier NFC Access Control Turnstile Gate High Speed Pass
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-205
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Office\School\Airport\Subway\Outdoor Dimension 1200 * 280 * 1000mm
Power Supply AC100V-240V Passing Speed 45persons/min
Driving Motor 24V Brushless DC Motor Usage Subway Station Mall
Material Stainless Steel 304/316 Lane Width 60,90,110cm Or Others
Highlight

NFC Access Automatic Flap Barrier

,

NFC Access Control Turnstile Gate
Leave a Message
Product Description
1 In 1 Out Automatic Flap Barrier NFC Access Control Turnstile Gate High Speed Pass
1 in 1 out Automatic Flap Barrier NFC Access Control Turnstile Gate with High Speed Passage
Brief Description Of Automatic Flap Barrier
  • Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, available with unique features for wide range of security, commercial and industrial applications.
  • The electric control adopts DC motor for stable and reliable operation with low failure rate. Ultra high light traffic indicator function with directional instructions designed with ultra bright LED lights.
  • System Integration: compatible with Face, thermal, RFID / fingerprint / QR or barcode / ESD access control systems.
  • Acceptable: CUSTOM OEM/ODM service for size, shape, etc.
  • Constructed of 304 stainless steel; IP54 waterproof rating, with elegant shape, anti-rust and durable construction.
Specification Of Automatic Flap Barrier
No. Parameter Specification
1 Cabinet dimension 1200 (L) x 280 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Standard Features Of Automatic Flap Barrier
  • Bi-directional or single way optional
  • Gate auto-open when power is off to meet fire protection requirements
  • Anti-Tail gaiting feature to prevent unauthorized entry
  • Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Wings open automatically during power interruption, recover N/C mode after power on (optional)
  • Fast opening and closing time
  • Built-in mechanical lock to prevent forced opening of swing flaps
  • Pairs of IR sensors
Operation Application Of Automatic Flap Barrier
Bank
Fitness Gym
Factory
Hotel
Movie theaters
Office buildings

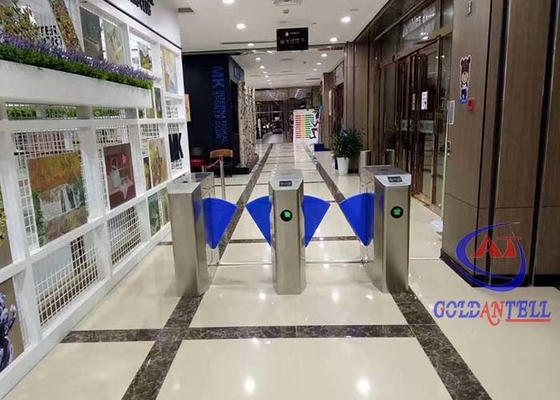

Photos Of Automatic Flap Barrier
1 In 1 Out Automatic Flap Barrier NFC Access Control Turnstile Gate High Speed Pass 0
Our Service Of Automatic Flap Barrier
1. Friendly and professional customer service available 16 hours daily.
2. Over 10 years ODM/OEM experience for custom product design, logos, and packaging.
3. Comprehensive solutions including product and system software management to save time and costs.
4. Special repair service: No product return needed - video diagnosis with free spare parts replacement within 1 year warranty.
Our Advantages Of Automatic Flap Barrier
  • Specialized in Turnstile manufacturing for over 13 years
  • Customize Service available (OEM, ODM)
  • Cost-optimized solutions by removing unnecessary features and using mold design
  • Timely response - 3 minute response time for existing customers with project solutions
Packing Of Automatic Flap Barrier
1. Export packaging: Wooden case with pearl wool and plastic wrap (export exempted from inspection)
2. Domestic packaging: Bubble wrap with carton or pearl wool with wooden packaging
3. Professional, environmentally friendly, and efficient packaging services to ensure goods safety
FAQ Of Automatic Flap Barrier
Can I have a system that only supports esd test without software?
Vivian: sure, there are more options. our catalog can provide to help you make a choice.
What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
