RFID Card Turnstile Face Recognition Flap Barrier Time Attendance System With LED Alarm

  • RFID Card Turnstile Face Recognition Flap Barrier Time Attendance System With LED Alarm
  • RFID Card Turnstile Face Recognition Flap Barrier Time Attendance System With LED Alarm
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-new
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*280*1000mm Package Size 1280*370*1070mm
Application Indoor&outdoor Net Weight 65KG
Gross Weight 70KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

Face Recognition Flap Barrier Gate

,

LED Alarm Flap Barrier Gate

,

RFID Card Flap Barrier Gate
Leave a Message
Product Description
RFID Card Turnstile Face Recognition Flap Barrier Time Attendance System With LED Alarm
RFID Card Turnstile Face Recognition Flap Barrier Time Attendance System with LED Alarm and Emergency Opening System.
Description Of RFID Card Turnstile
  • Flap barrier gate can be integrated with ESD tester system or other access control systems like facial recognition for staff, providing civilized orderly access methods.
  • ESD equipment can be quickly tested, with three independent devices (Left Shoes, Right Shoes, Wrist Strap) completely tested at one time.
  • LCD screen: optional, providing more options for system requirements.
  • Single core (movement) structure or dual core (double movement) structure available for different installation requirements.
  • Higher flow rate and enhanced anti-tailgate functions.
  • Double protections of mechanical and infrared anti-pinch function, ensuring more reliable and safer passage.
Specifications Of RFID Card Turnstile
Item Details
Name Bridge type flap turnstile
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after breakdown 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100ms, 12V pulse, drive current>10mA
Relative humidity ≤90% (non-condensing)
Housing material Domestic standard 304# stainless steel
Working voltage AC220±10%V 50±10%HZ
Project Applications Of RFID Card Turnstile
Movie theaters
Fitness halls
Country clubs
Fairground
Clubs
Swimming Hall
Fitness Gym
Hotel
Factory
Bank
Hospital
School
Functions Of RFID Card Turnstile
  • Rapid identification technique, accurately identifying magnetic cards, bar code cards, ID cards and IC cards.
  • DC Brushless Motor, maintenance free.
  • Auto-lift-arm function: the arm lifts automatically with alert when power is restored.
  • Auto-drop-arm function: the arm drops down automatically (default) or allows free passing when power is off.
  • Automatic Reset Functions: cancels passage authority if not used within specified time (adjustable 1-60s).

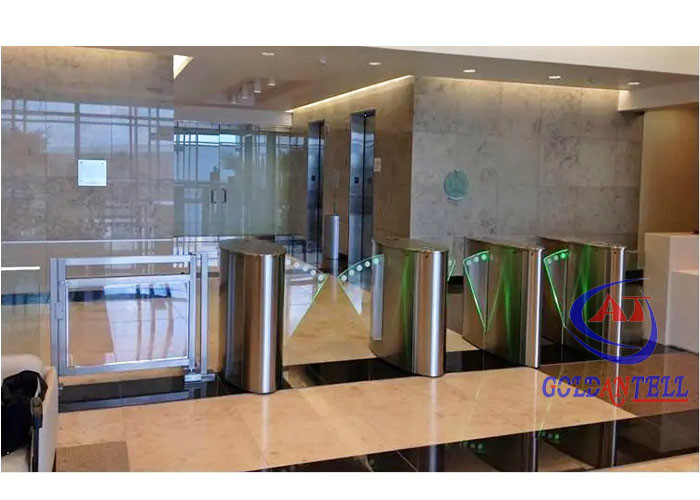

Product Photos Of RFID Card Turnstile
RFID Card Turnstile Face Recognition Flap Barrier Time Attendance System With LED Alarm 0
FAQ Of RFID Card Turnstile
How about your package?
Seaworthy wooden case + Foam.
How about the payment method?
Standard products: 50% deposit, 50% balance payment before shipment.
How about the lead time?
Regular products need 5-8 working days. Customized products need 9-13 working days.
Service Of RFID Card Turnstile
  • Friendly and professional customer service available within 16 hours.
  • Over 10 years ODM/OEM experience, offering product shape design, custom logo, and custom packaging.
  • Complete system software management solutions to save time and costs.
  • Special repair service: no need to return products - just provide a video for engineer support. Damaged parts replaced within 1 year at no cost.
Advantage Of RFID Card Turnstile
  • Security solution provider helping save time and costs.
  • High quality with competitive price, offering OEM and ODM services.
  • Professional technical support and excellent after-sales service.
  • Custom design shape and logo available (free for large quantities).
  • Fast delivery and safe shipping methods.
  • Warranty: One year from delivery date with lifetime technical support.
  • Quick response: 24-hour online service with inquiries answered within 8 hours.
Access Control Ways Of RFID Card Turnstile
  • Multiple access control systems: fingerprint/face recognition/card reader/QR code/barcode ticket system.
  • Special functions: counter, coin-operation.
  • ESD tester system and function integration.
