IC ID Token Ticket Guest Management Gate entrance gate venue turnstile for gym access with footprint
Description Of Entrance Gate Venue
1) Flap Speedgates is integrated with mechanism,electric and micro- controller and various kinds of identification technologies,compatible with RFID card and barcode reader, to provide intelligent control and management to flow control.
2) it has the characteristics of fast opening, safety, and convenience, and is an ideal managing and channeling device for high-frequency pedestrian access;
3) Single core (movement) structure or dual core (double movement) structure is equipped for different installation requirements.
4) Speedgates has been widely used in airports, subway stations, docks, scenic spots, student dormitories, pedestrian passages, etc.
5. Access control of Speedgates:can be integrated with ESD tester system or other access control system like facial recognition for staff, provide civilized orderly access methods.
Specifications Of Entrance Gate Venue
| Item |
( single motor ), OR ( double motors )
|
| Name |
Bridge type flap turnstile
|
| Size: |
1200mm (L) * 280mm (W) * 1000mm (H)
|
|
Retractable arm length:
|
260 mm |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed)
|
| Passage width: |
≤600mm |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
|
Time to work after power on:
|
3 seconds |
|
Reset time after break down:
|
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Drive motor: |
DC 24 V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃
|
|
Communication interface:
|
standard RS 485 interface, distance ≤1200m
|
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
|
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel
|
| Working voltage: |
AC220±10%V 50±10%HZ |
Functions Of Entrance Gate Venue
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
2. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
3. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
4. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
5. Setting function humanized for reset of over time passing.
6. Can manager and long-range control the turnstile directly by managing the computer.
7. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
FAQ Of Entrance Gate Venue
1. What is your MOQ?
Vivian: Any quantity is acceptable.
2. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
3. What is the warranty for the machine?
Vivian: Within 1 year, if any quality problems, we will offer the accessories
4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.

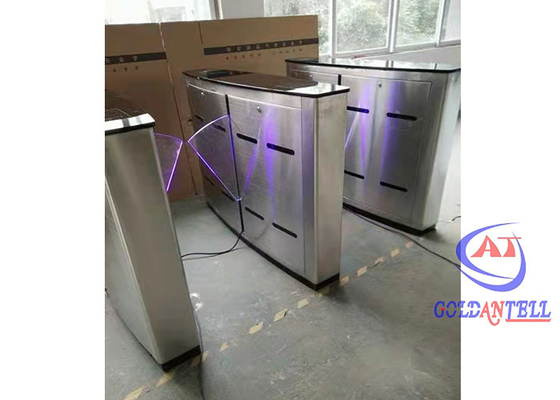

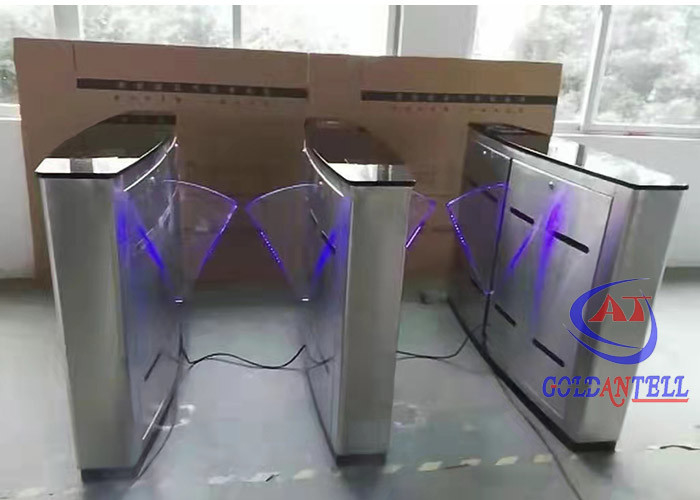

Display Of Entrance Gate Venue
Advantage Of Entrance Gate Venue
1. Security solution provider, can help you save time and costs.
2. Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.
Project Of Entrance Gate Venue
- Movie theaters,
- Fitness halls,
- Country clubs,
- Fairground,
- Clubs,
- Swimming Hall,
- Fitness Gym.
- Hotel,
- Factory,
- Bank,
- Hospital,
- School
