Anti Collision Entrance Pedestrial Barrier For Gyms Access Control System

  • Anti Collision Entrance Pedestrial Barrier For Gyms Access Control System
  • Anti Collision Entrance Pedestrial Barrier For Gyms Access Control System
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-232
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Office\School\Airport\Subway\Outdoor Dimension 1200 * 280 * 1000mm
Power Supply AC100V-240V Passing Speed 45persons/min
Driving Motor 24V Brushless DC Motor Usage Subway Station Mall
Material Stainless Steel 304/316 Lane Width 60,90,110cm Or Others
Highlight

SS316 Glass Swing Gate

,

Biometric Pedestrian Barrier Gate

,

SS316 Pedestrian Swing Gate
Leave a Message
Product Description
Anti Collision Entrance Pedestrial Barrier For Gyms Access Control System
Product Description
Goldantell intelligent Series turnstile gates combine excellent design with superior performance, utilizing innovative technology and high-quality materials. These barriers feature unique security capabilities suitable for commercial, industrial, and gym access control applications.
Key Features
  • DC motor-driven electric control for stable, reliable operation with low failure rate
  • Ultra-bright LED directional indicators for clear traffic guidance
  • Compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
  • Available with custom OEM/ODM services including size and shape modifications
  • Constructed from 304 stainless steel with IP54 waterproof rating, anti-rust, and durable design
Technical Specifications
Parameter Specification
Cabinet dimension 1200 (L) x 280 (W) x 1000 (H) mm
Cabinet material 304 stainless steel (316 ss can be custom-made)
Power supply AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/closing time 0.2s
Arm material 10mm Acrylic, tempered glass or steel (customizable)
Access mode Single in/out or Bidirectional
Passthrough width 900mm (customizable)
Mechanism DC Brushed motor+Clutch (or Servo motor)
Communication interface RS485, TCP/IP
Infrared sensors 6~10 pairs
Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
Reset time after breakdown Default 10s (adjustable)
MCBF 5,000,000 Cycles
Working humidity 30%~95%
Standard Features
  • Bi-directional or single way operation options
  • Auto-open gate during power failure for fire safety compliance
  • Anti-Tailgating feature to prevent unauthorized entry
  • Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
  • Fast opening/closing mechanism
  • Built-in mechanical lock to prevent forced opening
  • Multiple IR sensor pairs for enhanced security
Applications
Banks • Fitness Gyms • Factories • Hotels • Movie Theaters • Office Buildings
Customer Support
  • 16-hour professional customer service
  • 10+ years OEM/ODM experience including custom designs and branding
  • Complete system software management solutions
  • Remote troubleshooting with video support and free spare parts replacement within warranty
Company Advantages
  • 13+ years specialized in turnstile systems
  • Full customization services including OEM/ODM
  • Cost-optimized designs eliminating unnecessary features
  • 3-minute average response time for customer inquiries
Packaging Options
  • Export: Wooden case with pearl wool and plastic wrap
  • Domestic: Bubble wrap with carton or pearl wool with wooden packaging
  • Professional, eco-friendly packaging solutions
Frequently Asked Questions
  • Q: Are manuals available? A: Yes, English manuals provided
  • Q: Customization options? A: Full OEM/ODM services available
  • Q: Payment terms? A: 100% before shipment with product verification
  • Q: Delivery terms? A: EXW, FOB, CFR, CIF, DDU available

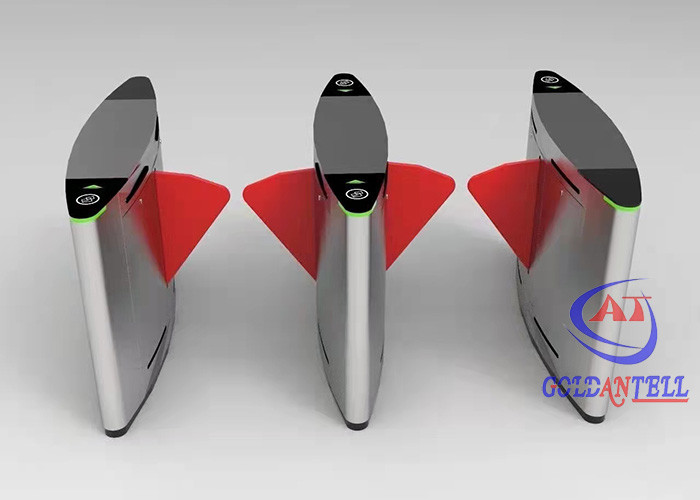

Product Image
Anti Collision Entrance Pedestrial Barrier For Gyms Access Control System 0
