Smart Mechanism ESD Biometric scanner access control flap esd gate with Free Software
Description Of ESD Gate
◊ Application: outdoor or indoor
◊ Pass direction: one way or two ways to set for you.
◊ Safety: Gate auto open when power is off to meet the fire protection requirements.
◊ LED indicator light: green and red indicate the passing information.
◊ Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.
◊ Custom: we can make a visible high glass panel that prevents a user from climbing over the gate to gain unauthorized access.
◊ Glass panel slides open horizontally to provide an unobstructed passageway.
Technical Parameters Of ESD Gate
| Size of housing: |
1200mm (L) * 280mm (W) * 1000mm (H) |
| Pass through width |
widely 60 /90cm for a pair |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: |
standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC100-240V, 50±10%HZ |
ESD Device & ESD Gate
1. Item model: GAT-ESD303
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Flap barrier or tripod.
3. Has has a 4.3-inch LCD screen, voice prompts, intuitively display the test results, no software.
4. Parameters of ESD Checker_ Factory default Settings (stand-alone version)
Wrist band: 750KΩ – 10MΩ, test range: 750KΩ – 10MΩ, accuracy ±10%.
Anti-static shoes: 750KΩ – 100MΩ, test range: 750KΩ – 100MΩ, accuracy ±10%.
5. Sure!! You can choose to add a variety of access control systems such as card swiping function, networking function. This product can work with electric door or intelligent turnstile gates in the air shower (please note this customized function will increase the price and cost).
Functions Of ESD Gate
1.With function of self-examine and alarm, it is convenient for maintain and use
2. being able to program operation state by the small keyboard in the main board.
3. Swing arm stops moving when it is blocked, which prevents pedestrians from being nipped and from hurt
4. Arms are automatically locked until an opening signal is received
5. Arms synchronization (adjustable)
6. Light and sound alarm is generated when the illegal invasion and the tail followed.
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening.
8. The passing time is adjustable.

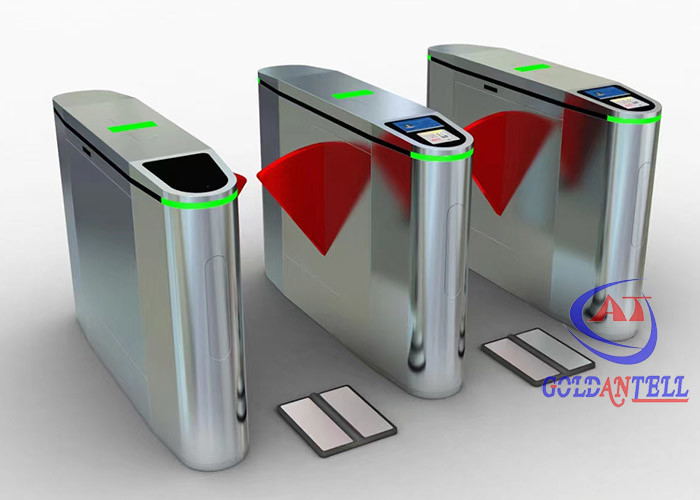

Photo Of ESD Gate
Project Application Of ESD Gate
1. Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance
2. Movie theaters, fitness halls, Clubs, Swimming Hall, Gym.
Features & ESD Gate
◊ Fast recognition
◊ Support photosensitive sensor infrared and led fill light.
◊ Support serial port driver, Wiegand 26 / 34 bit output.
◊ Dynamic face detection and tracking based on a video stream.
◊ Dynamic face detection and tracking based on a video stream.
◊ Multiple access control: add esd tester for each entrance.
Service Of ESD Gate
1. Security solution provider, can help you save time and costs.
2. Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.
FAQ Of ESD Gate
1.Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
2) How about your package?
Vivian: Seaworthy wooden case + Foam.
3) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before shipment.
4) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
