High End Construction Flap Turnstile Gate Brush Motor Security Alarm Door Entrance

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Facial recognition turnstiles wowed tenants. Synced with access cards seamlessly. Engineers even worked through Eid.

—— Ahmed Al-Farsi in The UAE

Precision gates sync with assembly robots. German-spec turnstile gates, Chinese speed. Zero warranty claims in 18 months

—— Klara Müller in German

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

High End Construction Flap Turnstile Gate Brush Motor Security Alarm Door Entrance

High End Construction Flap Turnstile Gate Brush Motor Security Alarm Door Entrance
High End Construction Flap Turnstile Gate Brush Motor Security Alarm Door Entrance
video play

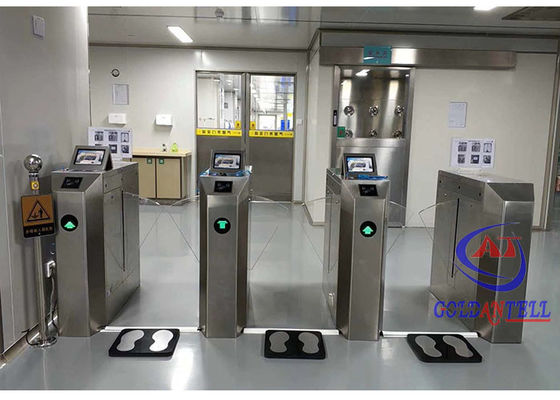

Large Image :  High End Construction Flap Turnstile Gate Brush Motor Security Alarm Door Entrance

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-206
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 1,000pcs per month
Detailed Product Description
Size Of Product: 1200*280*1000mm Application: Indoor&outdoor
Net Weight: 65KG Gross Weight: 70KG
Communication Port: RS485 ,TCP/IP Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Material: 304 Stainless Steel/316 Stainless Steel
Highlight:

Construction Flap Turnstile Gate

,

Brush Motor Flap Turnstile Gate

,

Security Alarm Flap Barrier Gate

High-end Construction Turnstiles Brush Motor Security alarm door entrance ticket machine metal access control



Description Of Construction Turnstiles

1) Flap Speedgates is integrated with mechanism,electric and micro- controller and various kinds of identification technologies,compatible with RFID card and barcode reader, to provide intelligent control and management to flow control.

2) it has the characteristics of fast opening, safety, and convenience, and is an ideal managing and channeling device for high-frequency pedestrian access;

3) Single core (movement) structure or dual core (double movement) structure is equipped for different installation requirements.

4) Speedgates has been widely used in airports, subway stations, docks, scenic spots, student dormitories, pedestrian passages, etc.

5. Access control of Speedgates:can be integrated with ESD tester system or other access control system like facial recognition for staff, provide civilized orderly access methods.



Specifications Of Construction Turnstiles

Item

( single motor ), OR ( double motors )

Name

Bridge type flap turnstile

Size:

1200mm (L) * 280mm (W) * 1000mm (H)

Retractable arm length:

260 mm
Pass speed:

40 persons/min (open), 25-30 persons/min (closed)

Passage width: ≤600mm
Normal running life: 3 million
Time of opening/closing: 0.6 second

Time to work after  power on:

3 seconds

Reset time after break down:

10 seconds
Direction: single or bi-directional (optional)
Drive motor: DC 24 V brush motor
Working environment:

indoor/outdoor (with a tent over)    -10℃~70℃

Communication interface:

standard RS 485 interface, distance ≤1200m

Input interface:

+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA

Relative humidity: ≤90% coagulation free
Housing material:

domestic standard 304 # stainless steel

Working voltage: AC220±10%V 50±10%HZ



Functions Of Construction Turnstiles

1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
2. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).

3. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
4. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
5. Setting function humanized for reset of over time passing.
6. Can manager and long-range control the turnstile directly by managing the computer.
7. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.



Installtion Of Construction Turnstiles

High End Construction Flap Turnstile Gate Brush Motor Security Alarm Door Entrance 0



Advantage Of Construction Turnstiles

1. Security solution provider, can help you save time and costs.

2. Good quality with competitive price, offer OEM and ODM service.

3. Professional technical supports and great after-sales service.

4. Custom design shape and logo,for large amount, custom logo available for free.

5. Fastest delivery and safe shipping way.

6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.

7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.



Project Of Construction Turnstiles

  • Movie theaters,
  • Fitness halls,
  • Country clubs,
  • Fairground,
  • Clubs,
  • Swimming Hall,
  • Fitness Gym.
  • Hotel,
  • Factory,
  • Bank,
  • Hospital,
  • School



FAQ Of Construction Turnstiles

1. What is your MOQ?
Vivian: Any quantity is acceptable.
2. Can your machines be used outside?
Vivian: With waterproof function, could be used outside
3. What is the warranty for the machine?
Vivian: Within 1 year, if any quality problems, we will offer the accessories

4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
5. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
6. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
