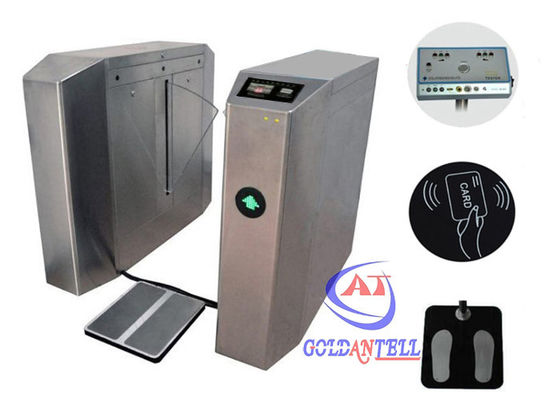

Android ESD Turnstile Gate System 8 Inch Touch Screen Tablet Combo Wrist / Foot Pedal

Name: Android ESD Turnstile Gate System 8 Inch Touch Screen Tablet Combo Wrist / Foot Pedal
Brand: Goldantell
SKU: GAT-ESD305
Rating: 5 (141 reviews)

Large Image : Android ESD Turnstile Gate System 8 Inch Touch Screen Tablet Combo Wrist / Foot Pedal

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificated
Model Number:	GAT-ESD305

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	negotiation
Packaging Details:	wooden case+carton box
Delivery Time:	3-6 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, D/P, D/A, D/P，Credit Card
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Combo Esd Turnstile Gate System	Monitor:	8 Inches
Material:	304 Stainless Steel	Accessories:	Wrist-strap, Right And Left Shoe
Control Software:	Yes	Working Environment:	Indoor / Outdoor ( Shelter),-10-50℃
Highlight:	Android ESD Turnstile Gate System , Touch Screen ESD turnstile gate system , CE esd turnstile access control system

Android 8 Inch Touch Screen Tablet Combo ESD Tester Turnstile Gate With Wrist And Foot Pedale

Human Body ESD tester has 4 modes to choose from:

① Simultaneously detect hands and feet. This mode is suitable for line operators;

② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;

③ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

④ Only detect the hand, this mode is suitable for assembly line or logistics;

GAT-ESD305 Combo ESD Tester Parameter

1	Instrument Dimensions	8 inch LCD monitor,android version display all info of users, like photo, name, card ID,depart, entry time,etc.
2	Operating voltage	input AC220V output DC12V
3	Pedal size	W 400 x L 420 x H 20 (mm)
4	Working hours	unlimited
5	Environmental conditions	Humidity: 0%~90%, Temperature: 5C°~ 40°C
6	Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
7	Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper and lower limit values of the test range can be adjusted according to customer requirements.)
7	Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
8	With industrial computer(sql&software installed)


Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements

Turnstile Gate Parameter

1	Power	AC220C±10V,50HZ
2	Operating temperature	-15°C--75°C
3	Relative Humidity	≤95%, No Condensation
4	Arm length	51cm
5	Passing Speed	30~40 persons/min(IC Card)
6	Motor	0.5NM/24V(Fully Automatic)
7	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V
8	Communication Connection	RS485 Communication Module Standard.
9	Material	SUS304,thickness is no less than 1.3mm
10	Protection Grade	IP54
11	Colour	SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
12	Operation Place	Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

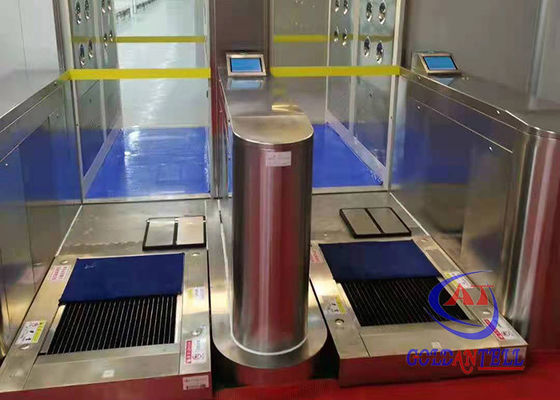

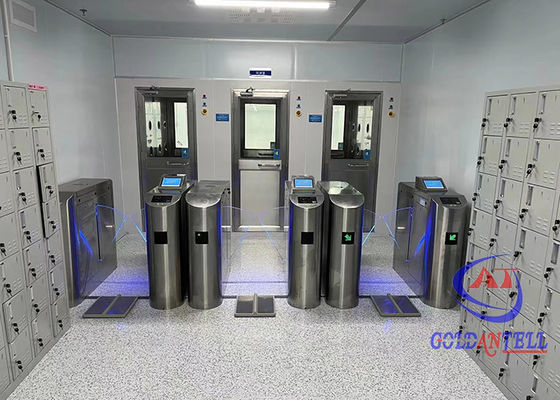

Goldantell Esd Turnstile Gate System Used in Factory

Android ESD Turnstile Gate System 8 Inch Touch Screen Tablet Combo Wrist / Foot Pedal 2

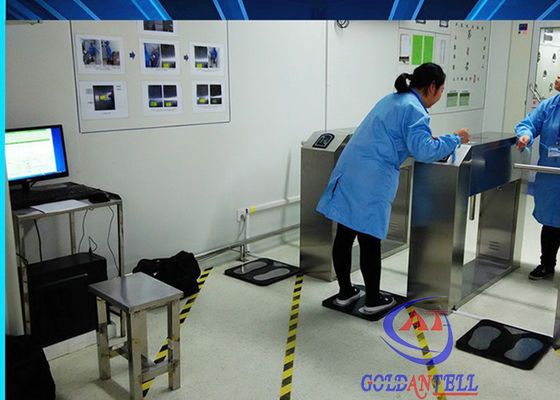

Goldantell Esd Turnstile Gate System Used in Lab

Working mode Instruction

① Simultaneously detect hands and feet. This mode is suitable for line operators;

② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;

③ Only detect the hand, this mode is suitable for assembly line or logistics;

④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

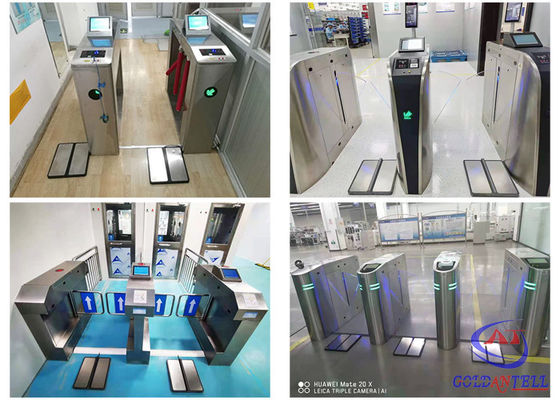

Goldantell factory & clients
