Product Details:
Payment & Shipping Terms:
|
Size Of Product: | 1200*280*1000mm | Package Size: | 1280*370*1070mm |
---|---|---|---|
Application: | Indoor&outdoor | Net Weight: | 65KG |
Gross Weight: | 70KG | Communication Port: | RS485 ,TCP/IP |
Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material: | 304 Stainless Steel/316 Stainless Steel |
High Light: | Automatic flap turnstiles gates,Stainless Steel flap turnstiles gates,RS485 stainless steel turnstiles |
Professional Automatic flap turnstiles gates stainless steel S304 material 3 passages for 3meter long entrance
Description Of Turnstiles Gates
1) Flap barrier gate can be integrated with ESD tester system or other access control system like facial recognition for staff, provide civilized orderly access methods.
2) ESD equipment can be quickly tested, and three independent devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD tested at one time.
3) LCD screen: optional, supply more options for system requirement.
4) Single core (movement) structure or dual core (double movement) structure is equipped for different installation requirements.
5) Higher flow rate and better anti-tailgate functions.
6) Double protections of Mechanical and infrared anti-pinch function, providing more reliable and safer passing.
Specifications Of Turnstiles Gates
Item |
( single motor ), OR ( double motors ) |
Name |
Bridge type flap turnstile |
Size: |
1200mm (L) * 280mm (W) * 1000mm (H) |
Retractable arm length: |
260 mm |
Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
Passage width: | ≤600mm |
Normal running life: | 3 million |
Time of opening/closing: | 0.6 second |
Time to work after power on: |
3 seconds |
Reset time after break down: |
10 seconds |
Direction: | single or bi-directional (optional) |
Drive motor: | DC 24 V brush motor |
Working environment: |
indoor/outdoor (with a tent over) -10℃~70℃ |
Communication interface: |
standard RS 485 interface, distance ≤1200m |
Input interface: |
+12V level signal or pulse width>100 ms |
Relative humidity: | ≤90% coagulation free |
Housing material: |
domestic standard 304 # stainless steel |
Working voltage: | AC220±10%V 50±10%HZ |
Standard Functions Of ESD System & Of Turnstiles Gates
For this kind of ESD Turnstile series, no need software control, just do daily esd measure.
Support the Employee mode and guest mode. Employee mode need to use EM card and it can show Name, Card No.,Date&Time. It has four ESD modes as below:
A. Door opens after swiping EM card and wrist strap and footware test passed;
B. Door opens after swiping EM card and footware test passed
C. Door opens after swiping EM card and wrist test passed
D. Door opens directly after pressing buttons No need swiping EM card in guest mode. Door just opens after wrist and footware test passed
3. This tester is a triple play tester that combines checking attendance,access control and ESD testing.

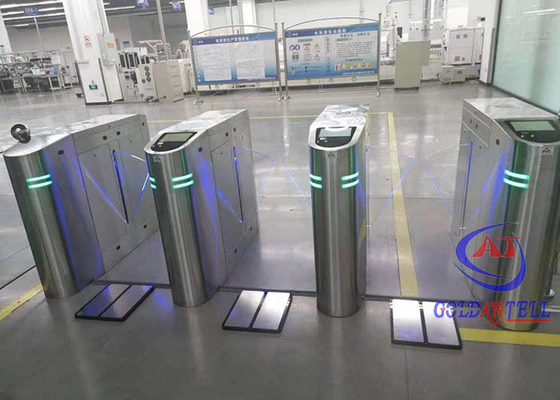

Product Photos Of Turnstiles Gates
Function& features Of Turnstiles Gates
1. Infrared reset function (Optional:4 pairs or 6 pairs Infrared). Infrared induction clamp function.
2. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
3. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
4. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
5. Setting function humanized for reset of over time passing.
6. Can manager and long-range control the turnstile directly by managing the computer.
7. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
Project Of Turnstiles Gates
FAQ Of Turnstiles Gates
1) How about your package?
Vivian: Seaworthy wooden case + Foam.
2) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before shipment.
3) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
Service Of Turnstiles Gates
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
Advantage Of Turnstiles Gates
1. Security solution provider, can help you save time and costs.
2. Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.
Access Control Ways
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
