Wall-mounted Wholesale Anti-static ESD Wrap Strap stand style simple measurement for factory entrance
ESD detection Descriptions
1. Item model: GAT-ESD303
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Flap barrier or tripod.
3. Has has a 4.3-inch LCD screen, voice prompts, intuitively display the test results, no software.
4. Sure!! You can choose to add a variety of access control systems such as card swiping function, networking function. This product can work with electric door or intelligent turnstile gates in the air shower (please note this customized function will increase the price and cost).
5. Parameters of ESD Checker_ Factory default Settings (stand-alone version)
Wrist band: 750KΩ – 10MΩ, test range: 750KΩ – 10MΩ, accuracy ±10%.
Anti-static shoes: 750KΩ – 100MΩ, test range: 750KΩ – 100MΩ, accuracy ±10%.
Technology Parameter
Operation Procedure
1. Stand on the pedal.
2. Insert the wrist strap into the test hole.
3. Swipe the card first, then touch the metal test button with your finger.
4. Please do not touch other parts of the machine.

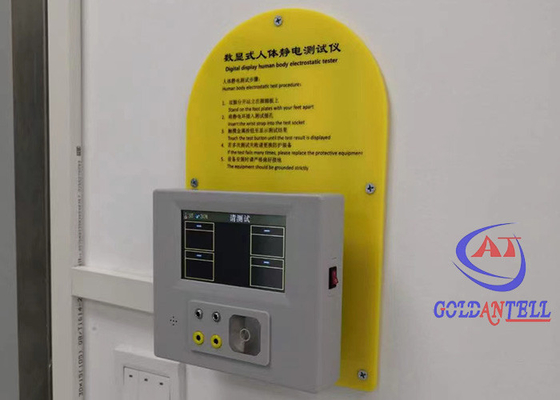

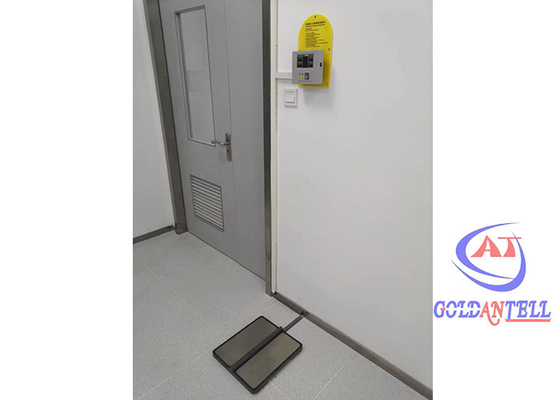

Product Photos
Function & Working mode
Support the Employee mode and guest mode. Employee mode need to use EM card and it can show Name, Card No.,Date&Time. It has four ESD modes as below:
A. Door opens after swiping EM card and wrist strap and footware test passed;
B. Door opens after swiping EM card and footware test passed
C. Door opens after swiping EM card and wrist test passed
D. Door opens directly after pressing buttons No need swiping EM card in guest mode. Door just opens after wrist and footware test passed
3. This tester is a triple play tester that combines checking attendance,access control and ESD testing.
FAQ
1. Can I have a simple system that only supports esd test without software?
Vivian: sure, there are more options. our catalog can provide to help you make a choice.
2. What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
4. What is the MAQ?
Vivian: 1 pc.
