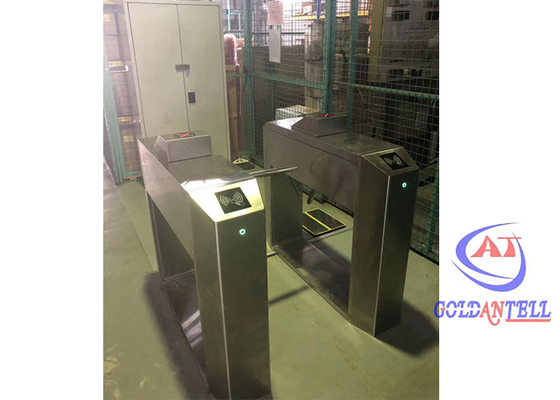

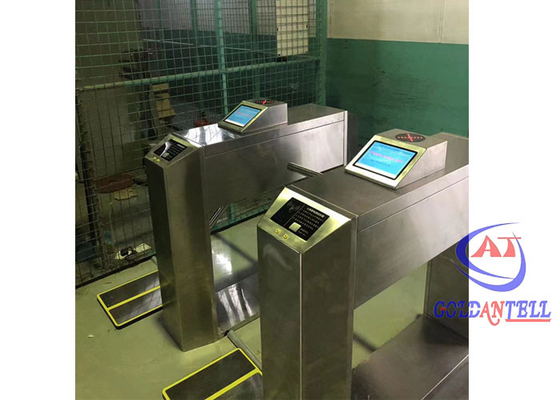

Automatic Pedestrian ESD Gate LCD Single Passage 3 Arm Turnstile For Lobby Entrance

Automatic Pedestrian ESD Gate LCD Single Passage 3 Arm Turnstile For Lobby Entrance
Automatic Pedestrian ESD Gate LCD Single Passage 3 Arm Turnstile For Lobby Entrance
video play

Large Image :  Automatic Pedestrian ESD Gate LCD Single Passage 3 Arm Turnstile For Lobby Entrance

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE certificate
Model Number: GAT-esd305
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Contact Now
Detailed Product Description
Dimension: L1200xW280xH1000mm Material: 304 Stainless Steel, (or Custom 316)
Transit Speed: 25~30 Persons / Min Odm/oem: Accepted
Power Supply: 110~240 V(AC) Direction: One-way,bi-direction Adjustable
Passage Width: 600mm Working Environment: Indoor / Outdoor ( Shelter),indoor
Warranty: 12 Months Usage: Office,Hotel,Library,Metro Station,ect.
High Light:

SUS304 Pedestrian ESD Gate

,

Lobby Entrance ESD Gate

,

RS485 3 arm turnstile

High Security Automatic pedestrian esd test LCD single passage 3 arms turnstile for Lobby Entrance



Product Introduction

1. Standard features: Made of 304 /316 stainless steel, Goldantell tripod turnstile with nice and elegant shape, anti-rust,durable, Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
3. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
4. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.



Feature & Function

-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)



Technology parameter
Optimal flow rate 30 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension 1200(L)* 280(W)* 1000(H)MM
Open type push button/ access control
Passing direction single in/out or Bidirectional
Working temperature -15°C +75°C
communication with computer standard RS485, TCP/IP
Reset time after break down default 10s,can be changed to fit different demands



ESD tester system (which could be mount on turnstile gate) has 4 modes to choose from

① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements.

Product Display

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Automatic Pedestrian ESD Gate LCD Single Passage 3 Arm Turnstile For Lobby Entrance 0
