Anti Pinch ESD Turnstile Gate System Double Channel Stainless Steel ESD Wristband Test
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-esd305 |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Office\School\Airport\Subway\Outdoor | Dimension | 1200 * 280 * 1000mm |
|---|---|---|---|
| Power Supply | AC100V-240V | Passing Speed | 40 Persons/min |
| Driving Motor | 24V Brushless DC Motor | Usage | Subway Station Mall |
| Material | Stainless Steel 304/316 | Lane Width | 60,90,110cm Or Others |
| Highlight | esd turnstile gate system Anti Pinch,Anti Pinch ESD Turnstile Gate System,Brushless Motor ESD Gate |
||
Product Description
Anti Pinch ESD Turnstile Gate System Double Channel Stainless Steel ESD Wristband Test
Product Description
Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, featuring unique security features for commercial and industrial applications.
Key Features
- Anti-pinch core protection system with double channel full height turnstile
- DC motor drive for stable, reliable operation with low failure rate
- Ultra bright LED directional indicators for clear traffic guidance
- Compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems
- Custom OEM/ODM services available for size, shape, and specifications
- Constructed from 304 stainless steel with IP54 waterproof rating, anti-rust, and durable design
Technical Specifications
| No. | Parameter | Specification |
|---|---|---|
| 1 | Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | Thickness 10mm Acrylic, tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | Default 10s (adjustable) |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
ESD Tester System Security Features
- Tests loop resistance between anti-static shoes and personnel to ensure safe electrostatic levels
- Prevents entry to electrostatic control areas if test fails, protecting sensitive electronics
- Requires replacement of electrostatic protection equipment for failed tests before access is granted
Turnstile Gate System Security Features
- Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm
- Bi-directional or single way operation options
- Auto-open when power is off to meet fire protection requirements
- Anti-Tail gaiting feature prevents unauthorized entry
- Wings open automatically during power interruption
- Fast opening and closing time
- Built-in mechanical lock prevents forced opening
- Multiple pairs of IR sensors
Operation Applications
Bank, Fitness Gym, Factory, Hotel, Movie theaters, Office buildings

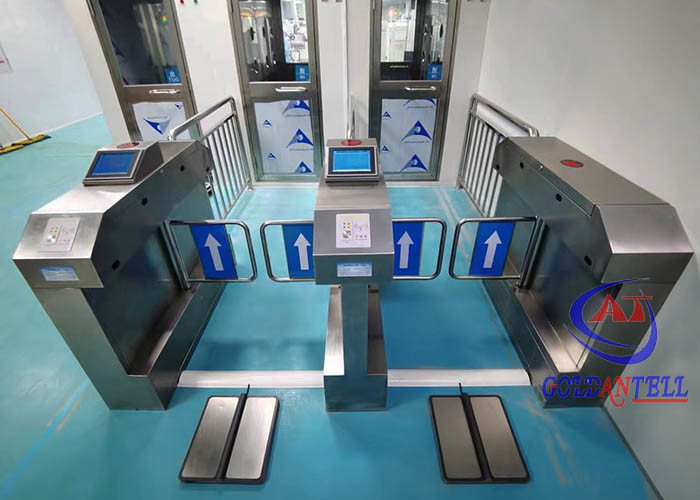

Product Photos
Frequently Asked Questions
Can I have a system that only supports ESD test without software?
Yes, we offer multiple options. Our catalog can help you make the right choice.
What is the language version available for the software system and displayed on the machine?
English and Chinese versions are available.
Can I have a software manual or installation instructions?
Yes, English version manuals are available.
Can I customize it?
Yes, we offer OEM/ODM services with extensive experience serving government and commercial clients.
What are your terms of payment?
100% payment before shipment. We provide photos/videos of products and packaging before final payment.
What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU options available.
Our Services
- Friendly professional customer service available 16 hours/day
- 10+ years ODM/OEM experience with custom design, logo, and packaging
- Complete system solutions including software management to save time and cost
- Special repair service: No product return needed - video diagnosis with free spare parts for 1 year
Packing Details
- Export packaging: Wooden case with pearl wool and plastic wrap (export exempted from inspection)
- Domestic packaging: Bubble wrap with carton or pearl wool with wooden packaging
- Professional, environmentally friendly, and efficient packaging services
