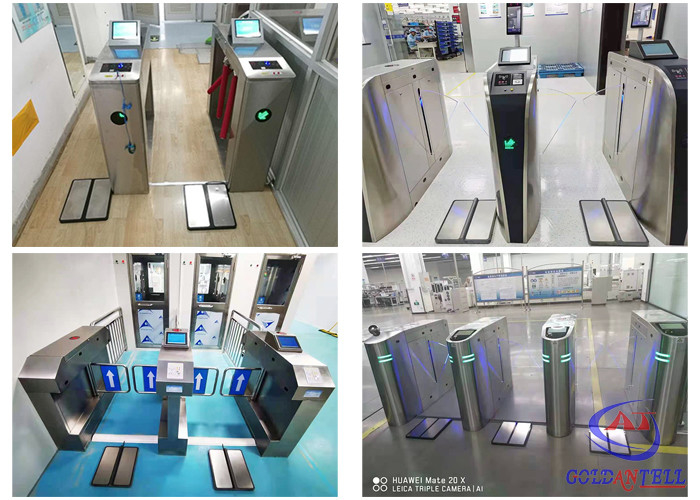

High Security 304 Stainless Steel Turnstile Gate With Human Body ESD Tester

Large Image : High Security 304 Stainless Steel Turnstile Gate With Human Body ESD Tester

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-ESD305

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7-9 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Compatible:	ESD Tester Access Control	Product Name:	L Turnstile Gate With Human Body ESD Tester
Material:	304 Stainless Steel/316 Stainless Steel	Size Of Product:	12003001000mm
Package Size:	13104101110mm	Application:	Indoor&outdoor
Net Weight:	70KG/pc	Gross Weight:	65KG/pc
Communication Port:	RS485 ,TCP/IP
Highlight:	High Security Stainless Steel Turnstile Gate , ESD Tester Stainless Steel Turnstile Gate , 8 inches esd turnstile gate system

High Security 304 Stainless Steel Turnstile Gate With Human Body ESD Tester 8 Inch Lcd Monitor

Technology Parameter Of GAT-ESD305 ESD Tester System

1	Instrument Dimensions	8 inch LCD monitor: display all info of users, like photo, name, card ID,depart, entry time,etc.
2	pedal size	(W) 400mmx (L) 420mmx (H) 20mm
3	Operating voltage	input AC220V output DC12V
4	Working hours	unlimited
5	Environmental conditions	Humidity: 0%~90%, Temperature: 5C°~ 40°C
6	Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
7	Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper and lower limit values of the test range can be adjusted according to customer requirements.)
7	Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5%

ESD Tester Features

It can be used to save data online, with signal output, 8 inch display monitor, included related software, tester and voice prompts (additional), and employee card access control.

1. ESD equipment can be quickly tested, and three independent devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD tested at one time.

2. Just install SQL Server2000/2008 and run the access control management software system on any computer in your

company.

3. Through TCP/IP communication technology, you can connect 255 human body comprehensive testing equipment (255 sets of Flap Turnstile / Tripod Turnstiles or other types). To monitor employees' compliance with anti-static requirements in real time.

High Security 304 Stainless Steel Turnstile Gate With Human Body ESD Tester 0

Technology Parameter Of Turnstile Gate
1	Power	AC220(or 110v) ±10V,50HZ
2	Operating temperature	-15°C--75°C
3	Relative Humidity	≤95%, No Condensation
4	Pathway length	60cm
5	Passing Speed	30~40 persons/min(IC Card)
6	Motor	0.5NM/24V(Fully Automatic)
7	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V
8	Communication Connection	RS485 Communication Module Standard.
9	Material	SUS304,thickness is no less than 1.3mm
10	Protection Grade	IP54
11	Colour	SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)

High Security 304 Stainless Steel Turnstile Gate With Human Body ESD Tester 1

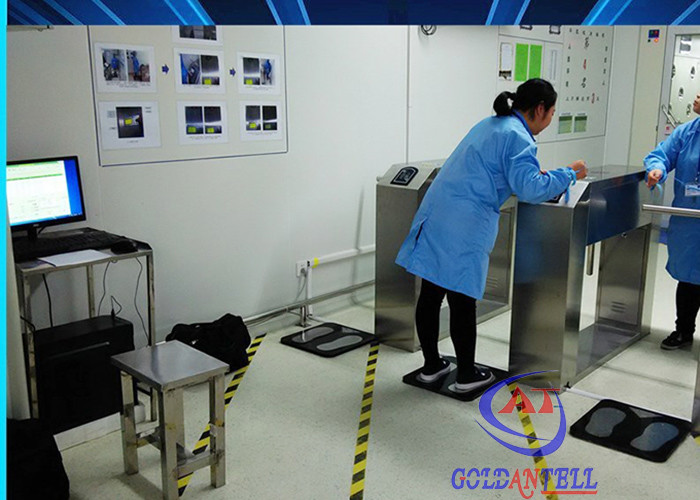

Working mode Instruction

① Simultaneously detect hands and feet. This mode is suitable for line operators;

② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;

③ Only detect the hand, this mode is suitable for assembly line or logistics;

④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

Package:inside carton,outside crate package or closed wooden package
