Clean Room Entrance Staff ESD Tester Flap Turnstile Gate For Wrist And Foot Strap

  • Clean Room Entrance Staff ESD Tester Flap Turnstile Gate For Wrist And Foot Strap
  • Clean Room Entrance Staff ESD Tester Flap Turnstile Gate For Wrist And Foot Strap
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-218
Document Different ESD Tester turnst...ll.pdf
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200*280*1000mm Package Size 1280*370*1070mm
Application Indoor&outdoor Net Weight 65KG
Gross Weight 70KG Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

RS485 Flap Turnstile Gate

,

ESD Tester Flap Turnstile Gate

,

304 SUS ESD Gate
Leave a Message
Product Description

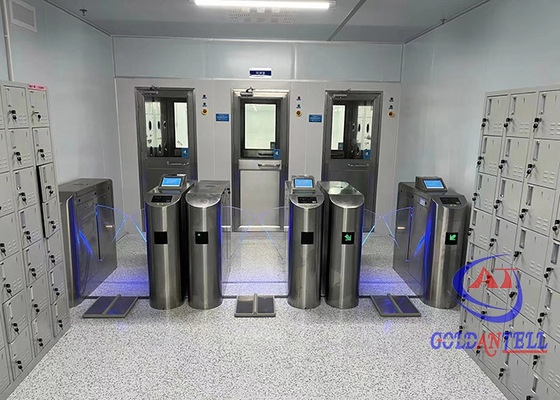

Clean Room Entrance Staff ESD Tester Flap Turnstile Gate

Professional turnstile gate system with integrated ESD testing for wrist and foot straps, featuring two-way exit access control.

Key Features
  • Integrates with ESD tester systems and access control (facial recognition, etc.)
  • Simultaneous testing of three independent devices (Left/Right Shoes + Wrist Strap)
  • Optional LCD screen for enhanced system requirements
  • Available in single core or dual core structures for different installation needs
  • High flow rate with advanced anti-tailgate functionality
  • Dual mechanical and infrared anti-pinch protection for safety
Technical Specifications
Item Specification
Model Bridge type flap turnstile (single/double motor)
Dimensions 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable Arm Length 260mm
Passage Width ≤600mm
Operation Life 3 million cycles
Working Voltage AC220±10%V 50±10%HZ
Operating Temperature -10℃ to 70℃ (indoor/outdoor with cover)
ESD System Functions
  • No software control required for daily ESD measurement
  • Supports Employee Mode (EM card) and Guest Mode
  • Four ESD testing modes with customizable access requirements
  • Combined attendance, access control and ESD testing functionality
Enhanced Features
  • 8-inch LCD monitor (larger than standard 4-inch displays)
  • High accuracy ESD testing range: 0.01-1000MΩ (shoes), 0.1-35MΩ (wrist-strap)
  • Optional infrared reset function (4-6 pairs)
  • Bidirectional operation with real-time self-diagnosis
  • Remote management capability via computer
Clean Room Entrance Staff ESD Tester Flap Turnstile Gate For Wrist And Foot Strap 0
Typical Applications
Movie Theaters Fitness Centers Hotels Factories Banks Hospitals Schools
Frequently Asked Questions
Packaging Details:

Seaworthy wooden case with protective foam.

Payment Terms:

Standard products: 50% deposit, 50% balance before shipment.

Production Lead Time:

Regular products: 5-8 working days. Customized: 9-13 working days.

Our Advantages
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system software management solutions
  • 1-year warranty with remote troubleshooting support
Access Control Options
  • Multiple authentication methods: fingerprint, facial recognition, card reader, QR/barcode
  • Special functions: counter operation, coin operation
  • Comprehensive ESD tester system integration
