CE ESD Test Smallest Quick Pass Swing Gate Barrier DC Brushless Motor Speed

  • CE ESD Test Smallest Quick Pass Swing Gate Barrier DC Brushless Motor Speed
  • CE ESD Test Smallest Quick Pass Swing Gate Barrier DC Brushless Motor Speed
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-644
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Office\School\Airport\Subway\Outdoor Dimension 1400 * 65 * 1000mm
Power Supply AC100V-240V Passing Speed 45persons/min
Driving Motor 24V Brushless DC Motor Usage Subway Station Mall
Material Stainless Steel 304/316 Lane Width 60,90,110cm Or Others
Highlight

SUS316 Swing Gate Barrier

,

ESD Test Swing Gate Barrier

,

45 Persons/min ESD Gate
Leave a Message
Product Description
CE ESD Test Smallest Quick Pass Swing Gate Barrier DC Brushless Motor Speed
ESD Test Smallest Quick Pass Gate Ce Certificate DC Brushless Motor Swing Gate Barrier Speed Gate
Brief Description
  • Goldantell intelligent Series turnstile gates feature excellent design and performance, utilizing innovative technology and high-quality materials for security, commercial, and industrial applications.
  • Electric control with DC motor ensures stable, reliable operation with low failure rate. Ultra-bright LED directional indicators provide clear traffic guidance.
  • System integration compatible with Face, thermal, RFID, fingerprint, QR/barcode, and ESD access control systems.
  • Custom OEM/ODM services available for size, shape, and other specifications.
  • Constructed with 304 stainless steel (316 stainless steel available upon request), IP54 waterproof rating, elegant anti-rust design for durability.
Technical Specifications
1 Cabinet dimension 1400 (L) x 120 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Security Features of ESD Tester System
  • Tests anti-static shoes by measuring loop resistance between personnel and insulated pedals.
  • Ensures safe electrostatic voltage levels before entering controlled areas.
  • Denies entry if electrostatic test fails.
  • Requires replacement of electrostatic protection equipment for failed tests.
Security Features of Turnstile Gate System
  • Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm.
  • Bi-directional or single way operation options.
  • Auto-open during power failure for fire safety compliance.
  • Anti-tailgating feature prevents unauthorized entry.
  • Fast opening/closing mechanism.
  • Built-in mechanical lock prevents forced opening.
  • Multiple infrared sensors for enhanced security.
Operation Applications
Bank, Fitness Gym, Factory, Hotel, Movie theaters, Office buildings

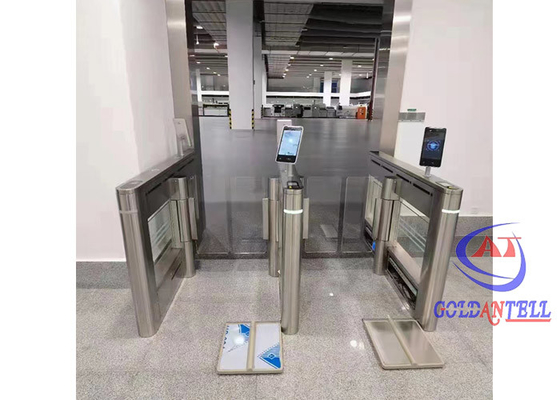

Real Product Photos
CE ESD Test Smallest Quick Pass Swing Gate Barrier DC Brushless Motor Speed 0
FAQ
Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. our catalog can provide to help you make a choice.
What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Our Service
  • Friendly and professional customer service available 16 hours daily.
  • 10+ years ODM/OEM experience for custom product design, logos, and packaging.
  • Complete solutions including product and system software management.
  • Special repair service: remote troubleshooting with video support, free spare parts replacement within 1 year warranty.
Packing Details
  • Export packaging: Wooden case with pearl wool and plastic wrap (export inspection exempt)
  • Domestic packaging: Bubble wrap with carton or pearl wool with wooden packaging
  • Professional, environmentally friendly, and secure packaging services
