Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
Product Details:
Payment & Shipping Terms:
|
Product Size: | 1500*1350*2260mm Or Custom Size | Material: | 304 Stainless Steel |
---|---|---|---|
Type: | Dual Access Full Height Turnstile | Net Weight: | 200KG |
Gross Weight: | 250KG | Compatible: | Facial Recognition&RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
Communication Port: | RS485 ,TCP/IP | Application: | Prison, Factory, Stadium , Government Etc. |
Package: | 4 Packages,single Lane About 7CBM,double Lane About 10CBM | Certification: | CE,ISO9001,Form E,Form F,CO |
Highlight: | RFID Reader Full Height Turnstile Gate,Anti Rust Full Height Turnstile Gate,IP62 Access Control Turnstile |

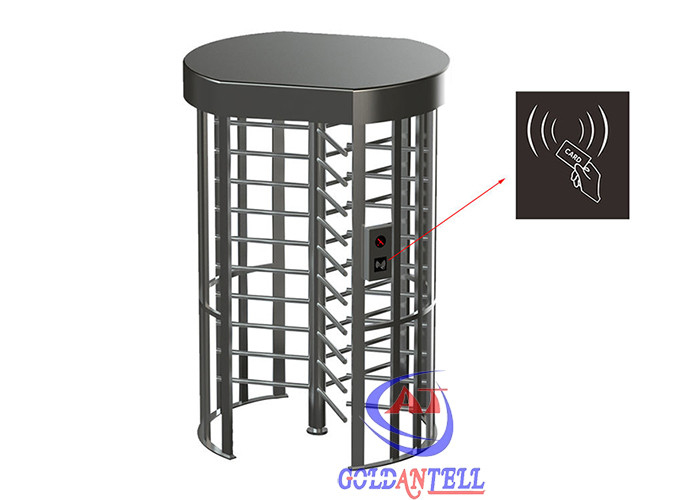

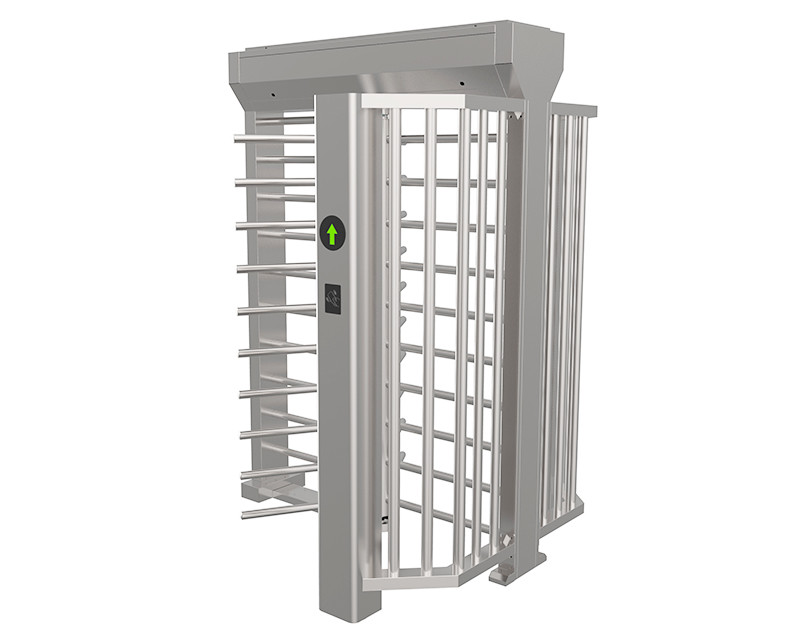

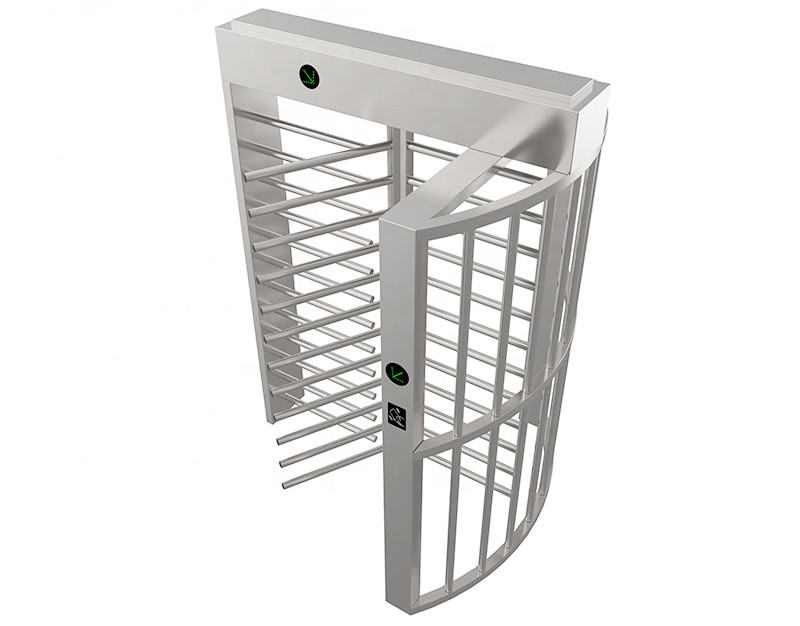

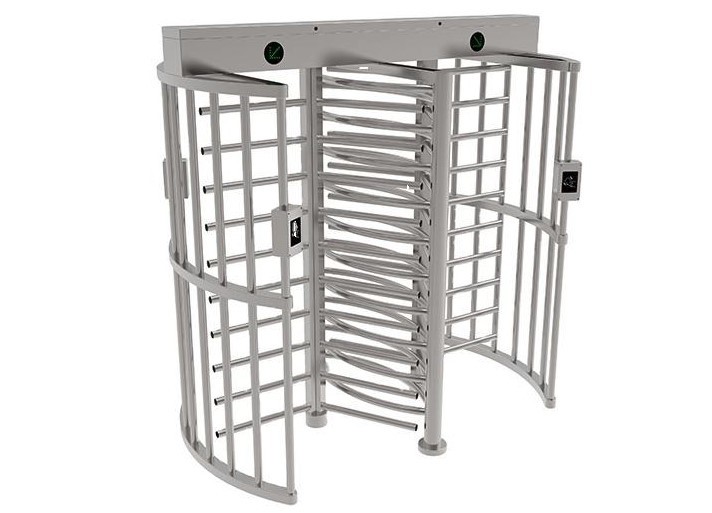

IP62 Outdoor Anti-Rust Access Control Full Height Turnstile Gate Stainless Steel Tourniquet
Specification of Access Control Full Height Turnstile
Structure parameters | |
Housing material | 304 grade stainless steel |
Thickness | 1.5mm |
Surface treatment | Brushed finish |
Technical parameters | |
Size | 1500*1350*2260mm |
Lane width | 600mm |
Passing speed | 35--50 people/min |
Open/close speed | 0.2sec |
Weight | 150KG |
Turning angle | 120 degree |
MCBF | 5.000.000 times |
Application | Indoor or outdoor |
Rotating directional | Single way or Bi-directional adjustable |
Noise | <55db |
Operating temperature | -15 to 70℃ |
Relative humidity | 5% to 95% |
Package | Carton box inside. Wooden case outside |
Electronic parameters | |
Power supply | 110-220V/AC, 50/60HZ |
Rated power | 100W |
Input signal | Dry contact |
Driving motor | Solenoid |
Method of position | Limiter |
Feature of Access Control Full Height Turnstile
1. Running stable without noise and mechanical impact
2. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
3. After swiping card in normal condition, if within the permitting time passages do not pass, the system
will cancel the users’ pass right and arm close automatically
4. Arm automatically open when the power off to make sure safety In case of emergency
5. Optional for external counter to record the people numbers for each lane
6. Single way or Bi-directional adjustable based on the requirement
7. Equipped with LED directional indication / status lights
Occasion Application of Access Control Full Height Turnstile
Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings,
financial institutions, clubs and other high-end
indoor applications.
Packages of Access Control Full Height Turnstile
FAQ
1. How long is your warranty period?
12 months. Life time spare parts.
2. How about your company’s strength?
We are the top 3 manufacturer in turnstiles in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 5000 square meters in total.
3. How about the quality of your products?
We are in the highest level of quality with the most competitive price. For example, we use China-Japan Baoxin stainless steel, Taiwan Minwei electric supplier, belt import from German, 3M clue import from America etc. We also have some successful cases: We installed 460 Turnstiles in Philippines’ 48 cinemas. The after-sales maintain fee is no more than $2000 per year.
4. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
5. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.
6.Can you do OEM service for us?
Sure,We offer below OEM services:
1) we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2) Can print your logo on turnstiles, can customize the retail box packing and other things.
Contact Person: Charlene Lu
Tel: 86 18025437918
Fax: 86-755-27209118
