Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 SUS Flap Turnstile | Size Of Product: | 1200*300*980mm |
|---|---|---|---|
| Package Size: | 1280*300*1070mm | Application: | Indoor&outdoor |
| Net Weight: | 65KG | Gross Weight: | 70KG |
| Communication Port: | RS485 ,TCP/IP | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Material: | 304 Stainless Steel/316 Stainless Steel | Color: | 304 SUS Material Orignal Color Or Printed |
| High Light: | Fast Speed Flap Turnstile Gate,Security Flap Turnstile Gate,304 SUS Security Turnstile Gate |
||

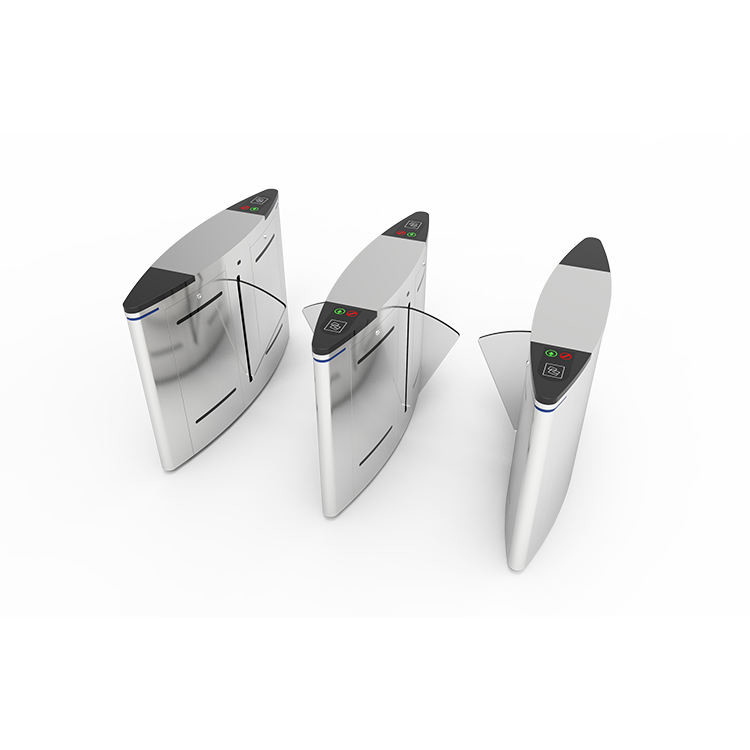

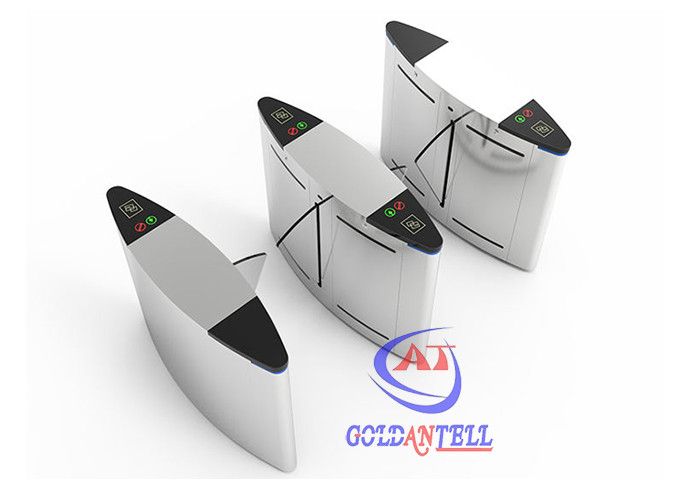

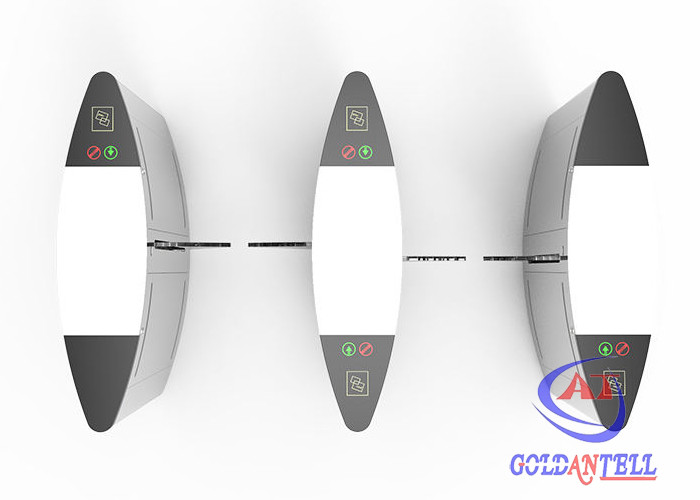

Fast Speed Security Flap Turnstile Gate With Face Recognition & RFID safety Access Control
Description of Security Flap Turnstile Gate:
Goldantell security flap turnstile gate is a high- tech product which mainly provides intelligent management to
passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely
processed with complete functions and high level, suitable for high- level neighborhoods, intelligent
buildings, hotel, subway, port and club,etc.
Security Flap Turnstile Gate Specifications:
| Item |
GAT-221-1( single motor ) |
| Name |
Boat type flap turnstile gate |
| Technical parameters | |
| Size: |
1200/1400mm (L) * 300mm (W) * 980mm (H) |
|
Retractable arm length: |
260 mm |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: | 550mm |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
|
Time to work after power on: |
3 seconds |
|
Reset time after break down: |
10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC 24 V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
|
Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms |
| Relative humidity: | ≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Security Flap Turnstile Gate Size:
Security Flap Turnstile Gate Application:
|
Entertainment Places |
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, |
| Public Places | Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices, Commercial buildings. |
|
Business Organizations |
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance |
Access control system:
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin/token operation.
3. ESD tester system Human body wristband and foot test
Package of Security Flap Turnstile Gate:
