BaFast Intelligent Pedestrian Speed Gate Turnstile With RFID Facial QR Code Barcode Access Control
Brief introduction of Pedestrian Speed Gate Turnstile
1.Heavy-duty, high Size prevents user from climbing over the gate to gain unauthorized access.
2. Anti-tailgating/ anti-retrogradation function: sliding wing can be set to pause if IR sensor detected obstacle nearby wing area during closing. sliding will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.
3. Stable performance, safe and reliable, widely used in the places where passenger flow is great and monitoring is needed such as office stations, lobby, office buildings, airport, etc.
Specifications List of Speed Gate Turnstile
| Technical parameters of Pedestrian Speed Gate Turnstile |
| Size of housing: |
1400mm (L) * 300mm (W) * 1000mm (H) |
| Slidding door height |
1.0, 1.2, 1.4 or 1.8m |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: |
standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC100-240V, 50±10%HZ |

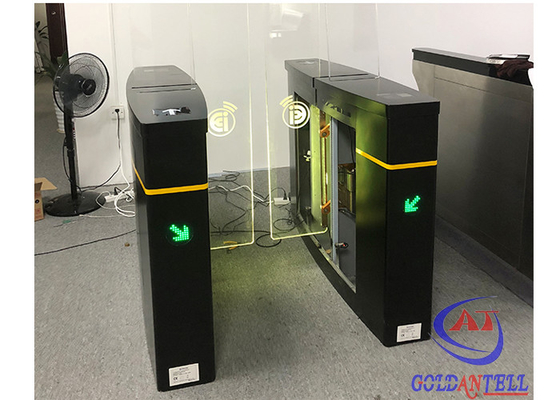

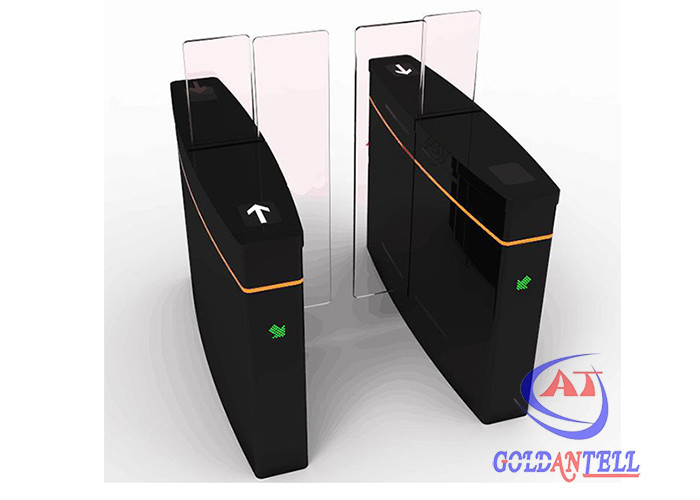

Speed Gate Turnstile Baked with black color picture:
Original stainless steel color picture:
Features&Function of Pedestrian Speed Gate Turnstile
1. When the power off, arm open automatically and power on again, the arm will be held automatically.
2. Safety function(anti-pinching). By default sliding wing will auto- reverse if IR sensor detected obstacle within the sliding
wing area. This avoid sliding wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the sliding wing to ensure sliding wing is easily visible.
3. Problem-self-checking function.
4. If a passenger pass without card read or valid card read, the machine will alarm until the passenger gets back from the gate and then take a valid card to be read for passing.
5. When a valid card read and a passenger passed, the arm can be delayed to close from 1-60s which can be set in the control panel.
Pedestrian Speed Gate Turnstile Application
1) Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,
Apartments,Residence Area, Offices.
2) Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3) Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Speed Gate Turnstile Standard Packing
1. standard inner packed with carton box.
2. outside pack with closed wooden case.
