Security Speed Turnstile Gate Face Recognition / RFID safety Access Control
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-223 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 304 SUS Flap Turnstile | Size Of Product | 1200*280*1000mm |
|---|---|---|---|
| Package Size | 1280*370*1070mm | Application | Indoor&outdoor |
| Net Weight | 65KG | Gross Weight | 70KG |
| Communication Port | RS485 ,TCP/IP | Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Material | 304 Stainless Steel/316 Stainless Steel | ||
| Highlight | Security speed turnstile gate,304 SUS speed turnstile gate,RFID face recognition turnstile |
||
Product Description

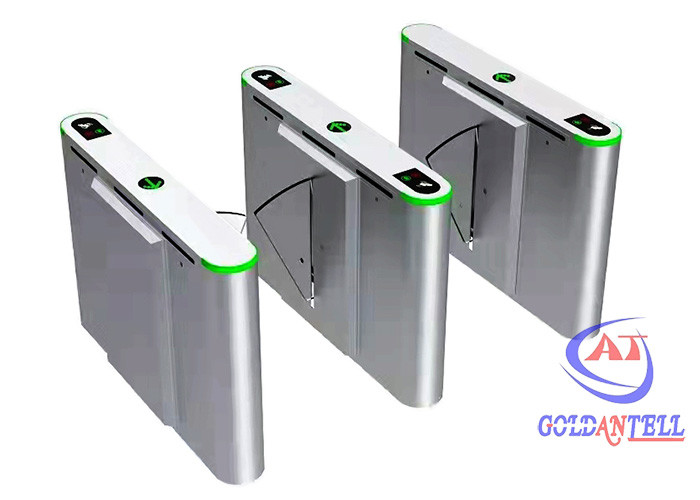

Security Speed Turnstile Gate with Face Recognition & RFID Access Control
The Goldantell intelligent turnstile is a high-tech product designed for intelligent passageway management. As an upgraded version of traditional tripod turnstiles and swing barriers, it features refined processing, complete functionality, and high-level performance. Ideal for upscale neighborhoods, smart buildings, hotels, subway stations, ports, clubs, and similar environments.
Specifications
| Item | Details |
|---|---|
| Model | GAT-223-1 (single motor) GAT-223-2 (double motors) |
| Name | Bridge type sharp flap turnstile |
| Size | 1200/1400mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million cycles |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | Single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | Indoor/outdoor (with tent), -10℃～70℃ |
| Communication interface | Standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% (non-condensing) |
| Housing material | Domestic standard 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Key Features
- Automatic door closure for illegal entry, tailgating, or negative direction breaches
- Automatic locking before receiving open signal
- Collision avoidance function protects internal mechanisms
- Adjustable automatic reset function (1-60s) meets fire safety requirements
- Optional infrared reset function (4 or 6 pairs)
- Infrared induction clamp function (4 pairs)
- Compatible with various access control systems (card, biometric, ESD, etc.)
- Bi-directional operation capability
- Remote management via computer
- Flashing light prompt for easy troubleshooting
Special Functions
- LED counting function
- Extendable box house and swing arm
- Advanced infrared logical judgment (8 or 10 pairs optional)
- Voice prompt function
- Adjustable normally open/closed settings
- Sound and light alarm prompts
- Stroboscopic lamp for quick problem identification
Applications
| Entertainment Places | Public Places | Business Organizations |
|---|---|---|
| Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Halls, Fitness Gyms | Subway, Airports, Stations, Libraries, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Residence Areas, Offices, Commercial buildings | Hotels, Factories, Banks, Prisons, Hospitals, Schools, Enterprise entrances/exits, Attendance systems |
System Integration
This equipment integrates mechanical, electronic, microprocessor control and ID identification technologies. It supports various identification methods (IC card, ID card, barcode, fingerprint) and enables intelligent passageway management with reliable security protection, alarm systems, and direction indicators.
Access Control Options
- Multiple authentication methods: fingerprint, face recognition, card reader, QR code, barcode
- Special functions: counter operation, coin-operation
- ESD tester system compatibility
Competitive Advantages
- 16-hour professional customer support
- 10+ years ODM/OEM experience with custom design capabilities
- Complete system software management solutions
- Efficient repair service: video diagnosis and free spare parts within warranty
Packaging Options
- Two packages required per pair
- Closed wooden box for systems with access control
- Crate or closed wooden box options for standalone units
