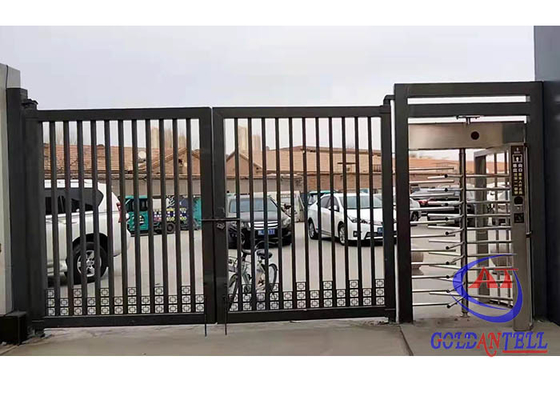

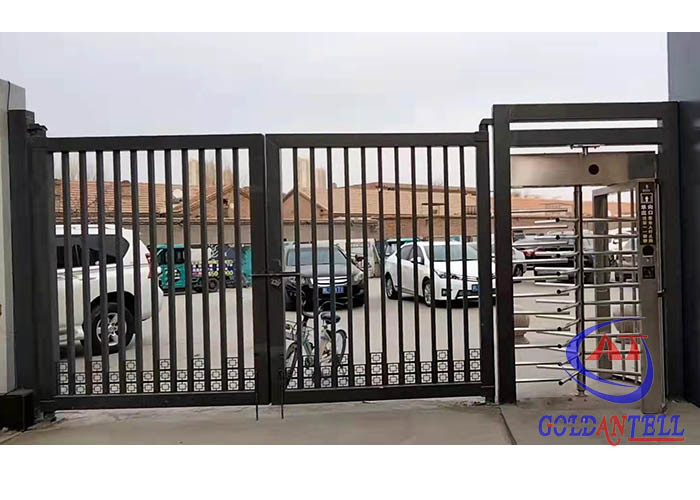

Semi Automatic Biometric Full Height Turnstile 90 Degree Rotation Stainless Steel Turnstile
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS /IS9001 |
| Model Number | GAT-511 |
| Document | Full Catalog Of Full Height...te.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 3100(L)*1500(W)*2250(H) Mm | Material | 304 Stainless Steel |
|---|---|---|---|
| Type | Single Entrance Full Height Turnstile | Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Communication Port | RS485 ,TCP/IP | Application | Prison, Factory, Government Etc. |
| Package | 4 Packages,7CBM | Verification | RFID, Fingerprint, Facial Optional |
| Direction | One-way, Bi-direction Adjustable | ||
| Highlight | Semi Automatic Full Height Turnstile,Biometric Full Height Turnstile,90 Degree Rotation stainless steel turnstile |
||
Product Description
Semi Automatic Biometric Full Height Turnstile
90 Degree Rotation Stainless Steel Turnstile with semi-automatic mechanism and biometric capabilities for high-security applications.
Product Overview
Goldantell intelligent series turnstile gates feature excellent design and superior performance, manufactured with innovative technology and high-quality materials. These stainless steel turnstiles are suitable for various security, commercial, and industrial applications, offering anti-pinch protection, time attendance tracking, and passage management capabilities.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | Manual or automatic (optional) |
| Roof Dimensions | Φ1500MM |
| Passage Width | 600mm-850mm |
| Direction | Single or bi-directional (optional) |
| Communication Interface | Standard RS485 interface (distance ≤1200m) |
| Input Interface | +12V level signal or pulse width>100ms |
| Operational Lifespan | 3 million cycles |
| Opening Time | 1-2 seconds |
| Standard Dimensions | 1630(L)*1500(W)*2300(H) mm |
| Direction Indicator | LED light (top-mounted) |
| Power Mechanism | DC24V solenoid valve |
Model Variations
| Lane | Model | Dimensions (mm) |
|---|---|---|
| Lane 1 | GAT-511 | 1500 (L) * 1350 (W) * 2250 (H) |
| Lane 2 | GAT-510 | 2400 (L) * 1250 (W) * 2250 (H) |
| Lane 3 | GAT-525 | 4100 (L) * 1500 (W) * 2250 (H) |
Key Features
- Reliable design with low noise operation and extended service life
- Standard switch signal input compatible with external access control systems
- Multiple operating modes including bi-directional access control
- Adjustable hydraulic shock absorbers for smooth operation
- Anti-recoil mechanism instantly locks when unauthorized entry is detected
Customization Options
- LED indicator lights (optional)
- Multiple control methods: fingerprint reader, push button, coin operation, or card reader
- Material options: standard 304 stainless steel or upgraded 316 stainless steel
- Custom control board configuration
