Lobby Access Control Waist Height Turnstile Clear Wings Optical Turnstile Manufacturers

  • Lobby Access Control Waist Height Turnstile Clear Wings Optical Turnstile Manufacturers
  • Lobby Access Control Waist Height Turnstile Clear Wings Optical Turnstile Manufacturers
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-220 series
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Fare Collection,ticket Station,Office Transit Speed 30~40 Persons / Min
Direction One Or Bi-direction(optional) Working Environment -15-70℃
Communication Port RS485 ,TCP/IP Power Supply AC110 Or AC220+/-10%
Size Of Product 1200*300*1000mm Material 304 Stainless Steel/316 Stainless Steel
Highlight

Lobby Waist Height Turnstile

,

Clear Wings Waist Height Turnstile

,

Waist Height optical turnstile manufacturers
Leave a Message
Product Description

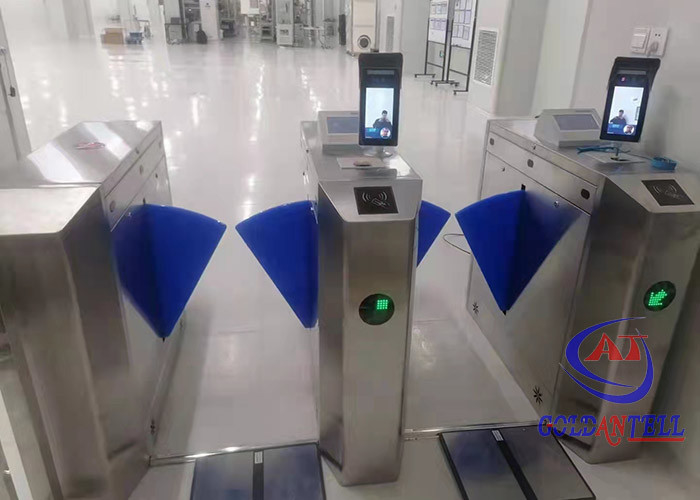

Lobby Access Control Waist Height Turnstile with Clear Wings
High-quality optical turnstile for lobby entrance access control with clear barrier wings, designed for security and efficient traffic flow management.
Key Features
  • LED indicator lights (green/red) for clear passage status
  • Special stretch wing design reduces closing time and prevents tailgating
  • Bi-directional operation compatible with facial detection, RFID, fingerprint, and QR/barcode systems
  • Premium 304 stainless steel construction with customization options
  • Custom branding services including logo printing and design modifications
Technical Specifications
Item Specification
Model Bridge type flap turnstile (single or double motor options)
Dimensions 1200mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length 260mm
Passage speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Operational lifespan 3 million cycles
Opening/closing time 0.6 seconds
Power-on activation 3 seconds
Reset time after failure 10 seconds
Direction options Single or bi-directional
Motor type DC 24V brush motor
Operating environment Indoor/outdoor (with cover), -10℃ to 70℃
Communication interface RS 485 (≤1200m distance)
Input interface +12V level signal or pulse width >100ms
Humidity tolerance ≤90% (non-condensing)
Material 304 stainless steel
Power requirements AC220±10%V 50±10%HZ
Advanced Functions
  • Integrated fault detection and alarm system
  • Programmable operation via built-in keyboard
  • Mechanical anti-pinch protection with automatic reset
  • Anti-breakthrough locking mechanism
  • Synchronization capability for dual gate systems
  • Automatic user authority cancellation
  • Configurable normally open/closed operation
  • Compatibility with multiple reader types (IC/ID cards, barcodes, fingerprints)
  • Adjustable directional control
  • LED directional indicators
  • Power-off open/power-on close for fire safety compliance
  • Intrusion detection alarms
  • Optional counting functionality
  • Infrared photocell anti-pinch system
Lobby Access Control Waist Height Turnstile Clear Wings Optical Turnstile Manufacturers 0
Ideal Applications
  • Movie theaters
  • Fitness centers
  • Country clubs
  • Fairgrounds
  • Nightclubs
  • Swimming pools
  • Gyms
  • Hotels
  • Factories
  • Banks
  • Hospitals
  • Schools
Competitive Advantages
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system solutions including management software
  • Remote troubleshooting and free spare parts replacement within warranty
Frequently Asked Questions
What is your warranty period?
One-year guarantee with lifetime technical support.
What payment methods do you accept?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance, 50% before shipment (negotiable).
Which payment terms are available?
T/T, Western Union, LC, PayPal, and other methods.
Can we visit your factory?
Yes, visitors are welcome at any time.
What packaging do you use?
Export: Wooden case with pearl wool and plastic wrap. Domestic: Bubble wrap with carton or pearl wool with wooden packaging.
