RFID LED Ditector Half Height Gate Turnstile Electronic Counter For Store Supermarket Toilet

  • RFID LED Ditector Half Height Gate Turnstile Electronic Counter For Store Supermarket Toilet
  • RFID LED Ditector Half Height Gate Turnstile Electronic Counter For Store Supermarket Toilet
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ ROHS/ FCC/ IS9001
Model Number GAT-509
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1400 (L) * 290 (W) * 1000 (H) Mm Material 304 Stainless Steel/316 Stainless Steel
Type Single Access Falf Height Turnstile Net Weight 200KG
Gross Weight 250KG Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Communication Port RS485 ,TCP/IP Application Prison, Factory, Government Etc.
Package 3 Packages,7CBM
Highlight

LED Ditector Half Height Gate Turnstile

,

Supermarke Half Height Gate Turnstile

,

Toilet Full Height Turnstile
Leave a Message
Product Description
RFID LED Detector Half Height Gate Turnstile Electronic Counter

Designed for store, supermarket, and toilet access control, this pedestrian automatic RFID LED detector half-height stainless steel gate turnstile provides efficient electronic counting and access management.

Product Overview
  • Available in single door (GAT-509) and double door configurations
  • Half-height/waist height design (1000mm)
  • High-tech intelligent passageway management system
  • Durable, rust-proof stainless steel construction
  • Ideal for prisons, office buildings, government facilities, and statistical offices
Technical Specifications
Parameter Value
Size 1400 (L) * 290 (W) * 1000 (H) mm
Working Voltage AC220±10%V 50±10%HZ
Working Movement DC 24V solenoid valve
Roof Dimensions Φ 1500 mm
Reset Time After Break Down 10 seconds
Passage Width ≤600 mm
Time of Opening 0.2 second
Pass Speed 30 persons/min
Time to Work After Power On 3 seconds
Normal Running Life 3 million cycles
LED Light Direction arrow indicator
Direction Single or bi-directional (optional)
Working Environment Indoor/outdoor (with tent) -25℃ to 70℃
Housing Material Standard 304# stainless steel
Relative Humidity ≤90% (non-condensing)
Communication Interface Standard RS485 interface (distance ≤1200m)
Input Interface +12V level signal or pulse width >100ms 12V pulse, drive current >10mA
Key Features
  • LED indicator light for clear direction guidance
  • Compatible with access control, biometric, and electronic ticket systems
  • Two-way anti-reverse function prevents unauthorized access
  • Programmable operating status via control board
  • Anti-rushing function automatically locks without proper signal
  • Meets fire safety requirements with automatic power-off locking
  • Automatic reset function (1-60 seconds adjustable)
  • Remote control and management via computer
  • Customizable box length and design options
  • Adjustable normally open/closed settings
Product Details
RFID LED Ditector Half Height Gate Turnstile Electronic Counter For Store Supermarket Toilet 0
  • Material: Standard 304 stainless steel (316 optional)
  • LED indicator light (optional)
  • Advanced control board system
  • Optional fingerprint reader
  • Multiple control options: push button, coin-operation, card reader
  • Customizable access control solutions

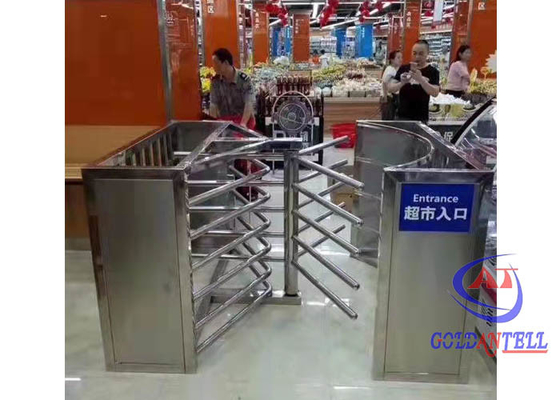

Project Example
RFID LED Ditector Half Height Gate Turnstile Electronic Counter For Store Supermarket Toilet 1
Competitive Advantages
  • 24-month quality guarantee
  • Custom design and logo options (free for large orders)
  • Fast delivery and professional engineering support
  • Special distributor/agent discounts
  • Standard export carton packaging (wooden case recommended)
  • CE and ROHS certified
Packaging Information
  • Crate Package:
    • Double access turnstile: 4 pieces, ~9 m³
    • Single access turnstile: 3 pieces, ~7 m³
  • Closed wooden case packaging available
