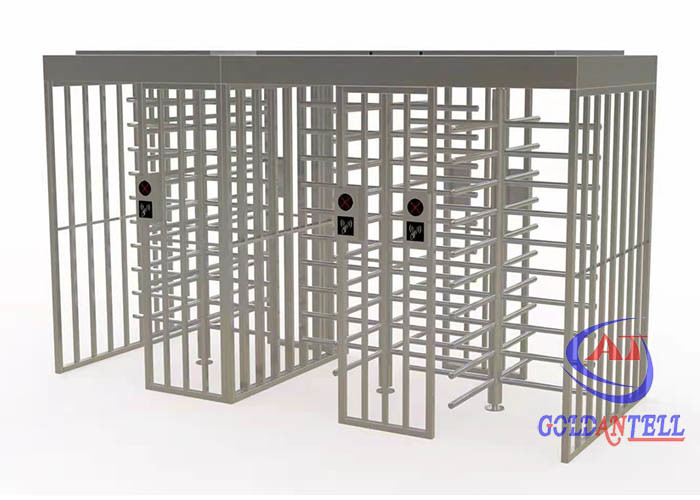

Electronic Barrier Gate Professional Mechanical Safty Three Full Height Rotate Pedestrian Turnstile
Descriptions
1. Its unique features with extensible functions allow it to integrate with various kinds of access control, including rfid / fingerprint/ qr code /barcode / ticket / ESD testing / facial recognition system.
2. The body is made from brushed stainless steel which creates a seamless and elegant design.
3. Three (or full) arms can rotate in one or two directions by controlled drive mechanism.
4. In case of emergency turnstile can be unlocked either manually or automatically.
5. Robust mechanism with intelligent control unit make it more reliable. It is intensive use with sooth operation.
Technical Specification
| Power |
AC100-240V,50/60HZ |
| Passage width |
600 mm, can be custom-made |
| Operating temperature |
-15°C--75°C |
| Relative Humidity |
≤95%, No Condensation |
| Communication Distance |
≤1200m |
| Passing Speed |
25~30 persons/min(IC Card/ID Card...) |
| Motor |
0.5NM/24V(Fully Automatic) |
| Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
| Communication Connection |
RS485 Communication Module Standard. |
| Material |
SUS304 or Carbon Steel Powder Coating |
| Direction |
single or bi-directional (optional) |
| Time of opening |
1-2 second
|
Functions & features
1. This security turnstile gate is an integration of mechanism, electric, mic-controller and various kinds of reading and writing technologies. It is used to cont rol and manage passages smart by working with different kinds of readers and writers, reliable
2. protection equipment, real-time alarm and direction guide.
3. our security turnstile gate has standard electrical interface which can be connected with barcode cards, IC cards, ID cards, magnetic cards conveniently. Also our products can satisfy the requirements of fire-control.
4. our security turnstile gate Can satisfy Different style of building to access control requirements by changing design in a great deal of range. Specially in ATM machine neaby .It is used for safety protect of external equipment of factory, sport ground, entertainment place, Park and so on.
More Specification Optional
| Lane No' |
Turnstile model |
Dimension/size |
| 1 |
GAT-511 |
1500 (L) * 1350 (W) * 2300 (H) mm |
| 2 |
GAT-510 |
2400 (L) * 1250 (W) * 2300 (H) mm |
| 3 |
GAT-525 |
4100 (L) * 1500 (W) * 2300 (H) mm |
Details Photos
Details Introduction
A. we can make different kinds of Rotary Arms. a. Type: straight or " U " shape; b. Four arms or three arms (90 / 120 degree)
B. we attach a waterproof stainless steel Box on our product, so can install biometrics readers inside, protect them as well.
please refer to above picture, the left is only RFID cards reader inside; right is Fingerprint + cards both (high waterproof for outdoor).
FAQ
1. What is your MOQ?
Vivian: Any quantity is acceptable.
2. Can your machines be used outside?
Vivian: With waterproof function, could be used outside
3. What is the warranty for your machine?
Within 1 year, if any quality problems, we will offer the accessories
4. If may I request other size options?
Vivian: sure, no problem, custom service is supportable.
