2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby

  • 2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby
  • 2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby
  • 2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby
  • 2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS /IS9001
Model Number GAT-new series
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T, Western Union, L/C, Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220V/110V,50/60Hz Type Single Core & Double Core
Working Environment Indoor / Outdoor ( Shelter) Communication Interface RS485/IP/TCP
Certification CE Material 304 Stainless Steel
Dimension L1200xW280xH1000mm Passage Width 600mm
Direction One Or Bi-direction(optional)
Highlight

Optical Waist High Turnstile

,

304SS Waist High Turnstile

,

Lobby Entrance Barrier Gate
Leave a Message
Product Description

Face recognition temperature 2 lanes Lobby Entrance Access Control Waist High Optical Turnstile With Clear Wings



Descriptions

> Flap Barrier with Access Control System for Fitness Center;

> Flap Barrier systems provide effective means for pedestrian flow control at entrances of high class communities, intelligent buildings, hotels, subway stations and other high level venues.



More Specification



Power AC100-240V,50/60HZ
Passage width 600 mm, can be custom-made into 900mm
Operating temperature -15°C--75°C
Relative Humidity ≤95%, No Condensation
Communication Distance ≤1200m
Passing Speed 25~30 persons/min(IC Card/ID Card...)
Motor 0.5NM/24V(Fully Automatic)
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection RS485 Communication Module Standard.
Material SUS304 or Carbon Steel Powder Coating
Direction single or bi-directional (optional)
Time of opening 1-2 second



Details Introduction

1. LED indicator light ( optional ).

2. Fingerprint reader (optional, other control ways: push button, coin- operation, access control system like card reader, etc.)

3. Material: standard 304 stainless steel (optional, 316).

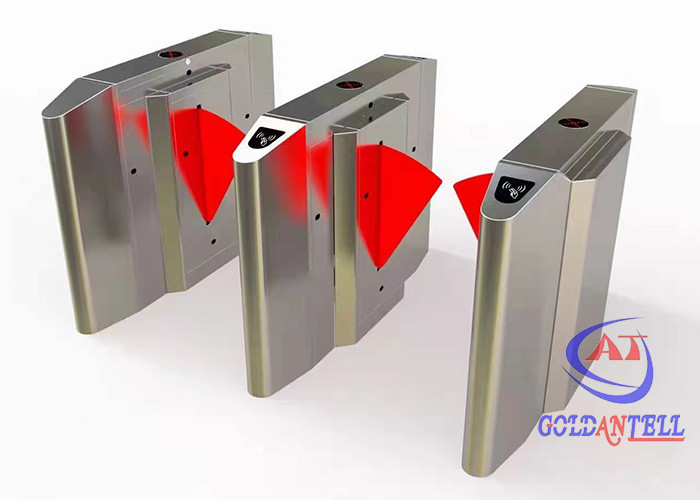

2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby 0

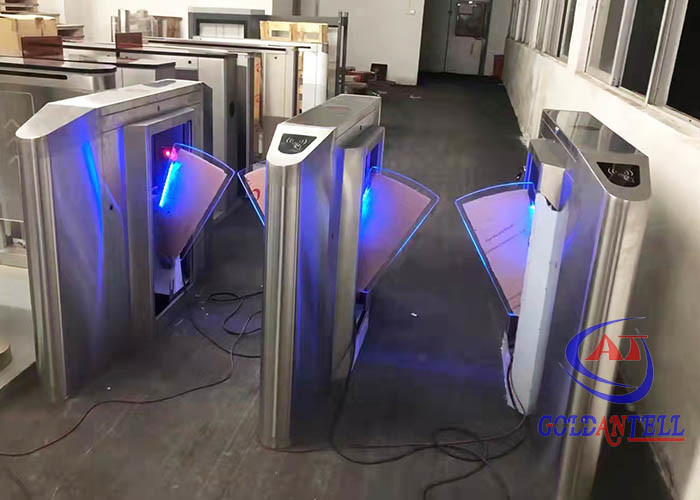

2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby 1



Functions & features

1. Flaps reset to close position when power resume.

2. Flaps reset to lock position when access time expire.

3. Prevents Invalid/Tailgate/Wrong direction access.

4. LED Array indication for access granted/denied.

5. Compatible with diverse access control devices.

6. Pedestrian flow directions can be single or double directions.

7. RS485 socket is available to connect the computer.



Clear Product Photo

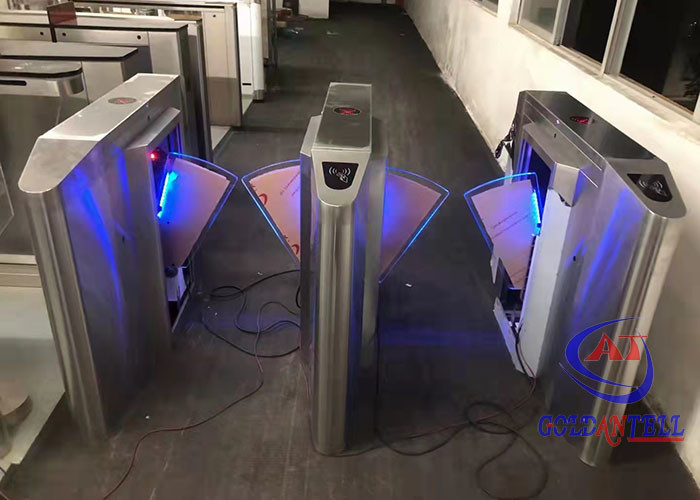

2 Lanes Optical Waist High Turnstile Face Recognition Temperature For Lobby 2
