Access Control Full Height Turnstile Gate Fingerprint QR Code RFID Security Barrier Gate
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS /IS9001 |
| Model Number | GAT-503 series |
| Document | Full Catalog Of Full Height...te.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 3100 (L) * 1500 (W) * 2250 (H) Mm | Application | Prison, Factory, Government Etc. |
|---|---|---|---|
| Material | 316 / 304 Stainless Steel | Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Passage Width | 60-65cm | Verification | RFID, Fingerprint, Facial Optional |
| Direction | One-way, Bi-direction Adjustable | Opening Speed | 25-30 Persons Per Min |
| Highlight | Access control full height turnstile gate,QR code full height turnstile gate,fingerprint Security Barrier Gate |
||
Product Description

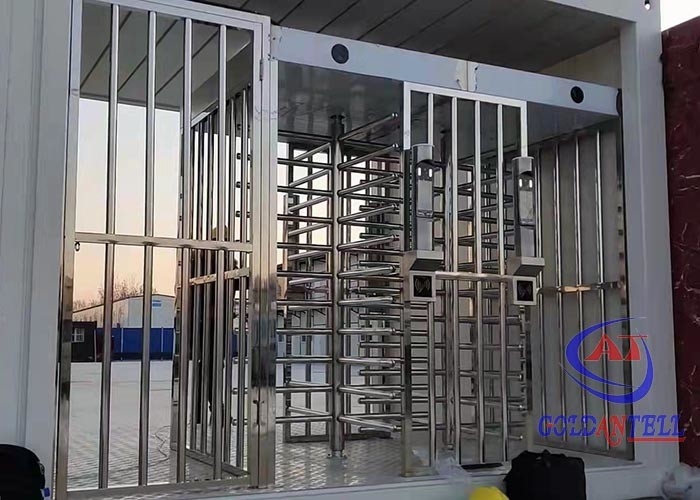

Access Control Full Height Turnstile Gate Fingerprint QR Code RFID Security Barrier Gate
High quality three rods security access control turnstile gate with fingerprint, QR code, and RFID capabilities, featuring an integrated door.
Product Features
- Compatible with multiple access control systems including RFID, fingerprint, QR code, barcode, ticket, ESD testing, and facial recognition
- Constructed with brushed stainless steel for durability and elegant appearance
- Three (or full) arms rotate in one or two directions via controlled drive mechanism
- Emergency unlock capability (manual or automatic)
- Robust mechanism with intelligent control unit for reliable, smooth operation
Technical Specifications
| Power | AC100-240V, 50/60HZ |
|---|---|
| Passage width | 600 mm (customizable) |
| Operating temperature | -15°C to 75°C |
| Relative Humidity | ≤95% (No Condensation) |
| Communication Distance | ≤1200m |
| Passing Speed | 25-30 persons/min (IC Card/ID Card) |
| Motor | 0.5NM/24V (Fully Automatic) |
| Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| Communication Connection | RS485 Communication Module Standard |
| Material | SUS304 or Carbon Steel Powder Coating |
| Direction | Single or bi-directional (optional) |
| Time of opening | 1-2 seconds |
Advanced Functions
- Integrated mechanism combining electrical, microcontroller, and multiple reading/writing technologies
- Standard electrical interface compatible with barcode cards, IC cards, ID cards, and magnetic cards
- Meets fire-control requirements
- Customizable design to match various architectural styles and access control needs
- Ideal for ATM protection, factories, sports grounds, entertainment venues, parks, and other secure locations
Application Example
Size Details
Rotary Arms Options: Straight or "U" shape; Four arms or three arms (90°/120°)
Waterproof Protection: Stainless steel box protects biometric readers (shown: left - RFID only; right - Fingerprint + cards with high waterproof rating)
Waterproof Protection: Stainless steel box protects biometric readers (shown: left - RFID only; right - Fingerprint + cards with high waterproof rating)
Model Specifications
| Lane No | Turnstile Model | Dimensions (L * W * H mm) |
|---|---|---|
| 1 | GAT-511 | 1500 * 1350 * 2300 |
| 2 | GAT-510 | 2400 * 1250 * 2300 |
| 3 | GAT-525 | 4100 * 1500 * 2300 |
Frequently Asked Questions
What is your MOQ?
Any quantity is acceptable.
Can your machines be used outside?
With its waterproof function, it can be used outdoors.
What is the warranty for your machine?
Within 1 year, if any quality problems occur, we will provide replacement parts.
Can I request other size options?
Yes, we support custom sizing.
Packing Details
- Container shipment recommended for multiple units (security shockproof packaging)
- Crate packaging for samples
- Closed wooden case for samples (high-security level)
