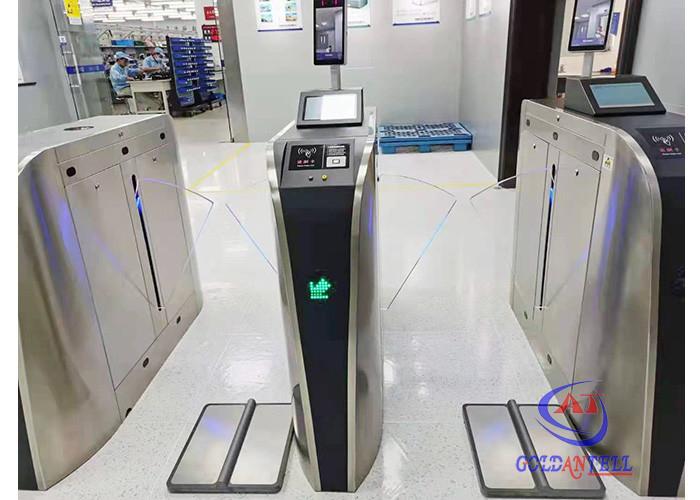

12VDC Intelligent ESD Gate SUS304 Esd Speed Gate Turnstile
Goldantell Esd Flap Turnstile For Lab / Factory Intelligent Pedestrian Path Control Barrier Gate
Flap Turnstile Gate Parameter
| 1 |
Power |
AC220C±10V,50HZ |
| 2 |
Operating temperature |
-15°C--75°C |
| 3 |
Relative Humidity |
≤95%, No Condensation |
| 4 |
Arm length |
51cm |
| 5 |
Passing Speed |
30~40 persons/min(IC Card) |
| 6 |
Motor |
0.5NM/24V(Fully Automatic) |
| 7 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
| 8 |
Communication Connection |
RS485 Communication Module Standard. |
| 9 |
Material |
SUS304,thickness is no less than 1.3mm |
| 10 |
Protection Grade |
IP54 |
| 11 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
|
Human Body Static ESD Tester Descriptions
1. Item model: GAT-ESD305
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Swing barrier, Flap barrier or tripod door.
3. A 8 inch LCD monitor, display all info of users, like photo, name, card ID,depart, entry time,etc.
4. Software: available.
5. Test Range and Accuracy (The upper and lower limit values of the test range can be adjusted according to customer requirements)
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
6. Application: This product can work with electric door or intelligent turnstile gates in the air shower. It meets the standards of other countries.
7. Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more
The set of system accessories are as follows:
1. Test system software
2. Tester body and foot pedal
3. 12VDC switching power supply (220V input)
4. Product description
5. Install the connection cable
Please: Do not wear gloves or press the metal test button with your fingernail, and keep the pedal dry and
clean..
GAT-ESD305 ESD Tester Parameter
FAQ:
1- Are you factory or trading company?
Goldantell:We are a source factory with 14 years experiences in this line.
2- Can you do OEM service?
Goldantell:Sure,OEM and ODM are our strengths.
3- Can I purchase the ESD system without gate?
Goldantell:Sure,you can purchase ESD system only,there are 2 kinds options:
01-to mounted on wall type
02-the ESD system built in a 1 meter height vertical box type.
4- What is the leading time?
Goldantell:Our leading time for samples 3-5 working days,for bulk order like 100-500 sets,
about 20-35 working days.
5- What is the delivery way?
Goldantell:By express,by air or by sea.
