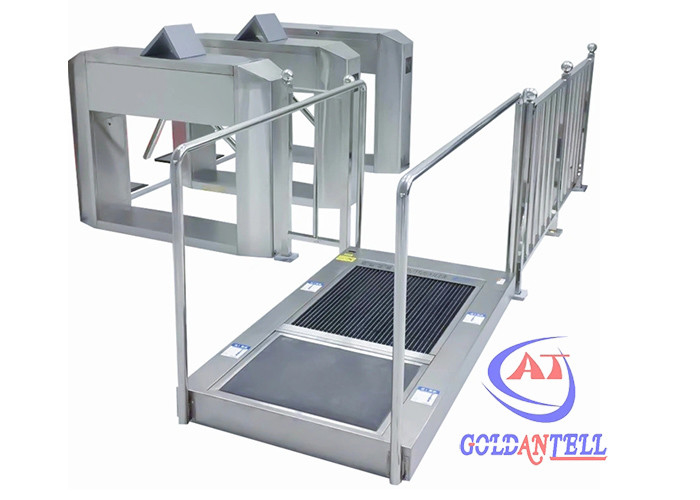

8 Inch LCD Monitor ESD Gate Human Body Comprehensive Wristband Foot Pedal
Esd Tester Turnstile Human Body Comprehensive Wristband & Foot Pedal ESD Tester Gate
Goldantell ESD Tester Parameter
|
1
|
Instrument Dimensions
|
8 inch LCD monitor:
display all info of users, like photo, name, card ID,depart, entry time,etc.
|
|
2
|
Operating voltage
|
input AC220V output DC12V
|
|
3
|
Pedal size
|
W 400 x L 420 x H 20 (mm)
|
| 4 |
Card Reader |
IC card reader / ID card reader / HID card reader installed |
|
5
|
Working hours
|
unlimited
|
|
6
|
Environmental conditions
|
Humidity: 0%~90%, Temperature: 5C°~ 40°C
|
|
7
|
Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
|
|
8
|
Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper
and lower limit values of the test range can be adjusted according to customer requirements.)
|
|
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
|
| 9 |
With industrial computer(sql&software installed) |

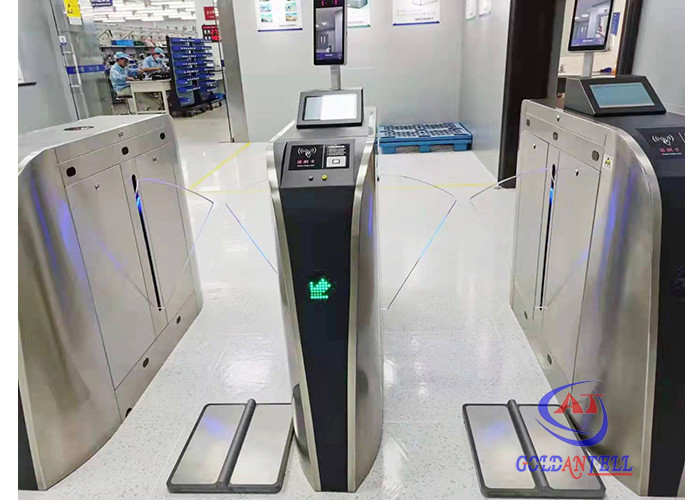

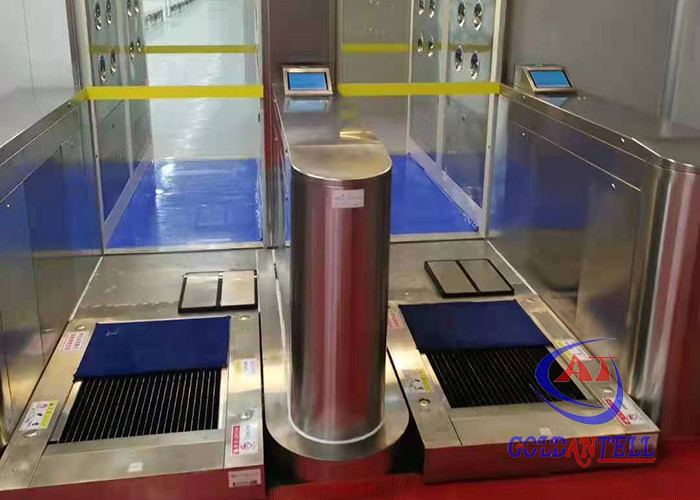

Goldantell Esd Turnstile Gate System Used in Factory

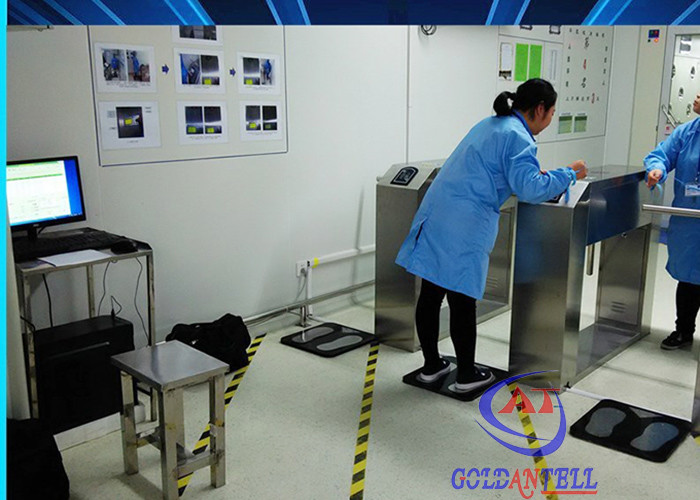

Goldantell Esd Turnstile Gate System Used in Lab
Working mode Instruction
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
FAQ:
1- Are you factory or trading company?
Goldantell:We are a source factory with 14 years experiences in this line.
2- Can you do OEM service?
Goldantell:Sure,OEM and ODM are our strengths.
3- Can I purchase the ESD system without gate?

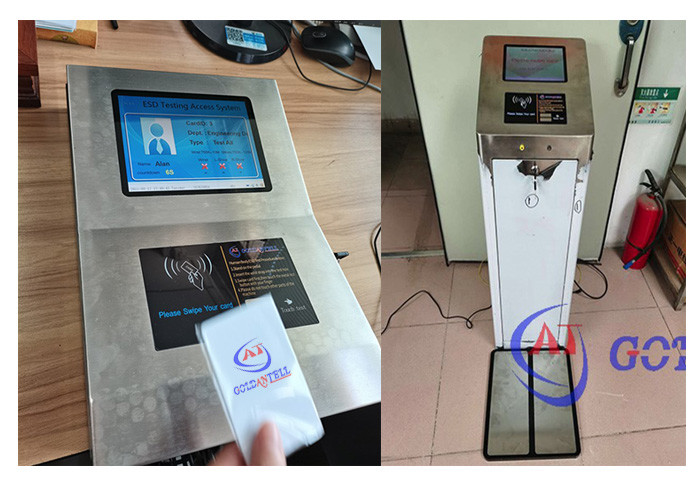

Goldantell:Sure,you can purchase ESD system only,there are 2 kinds options:
